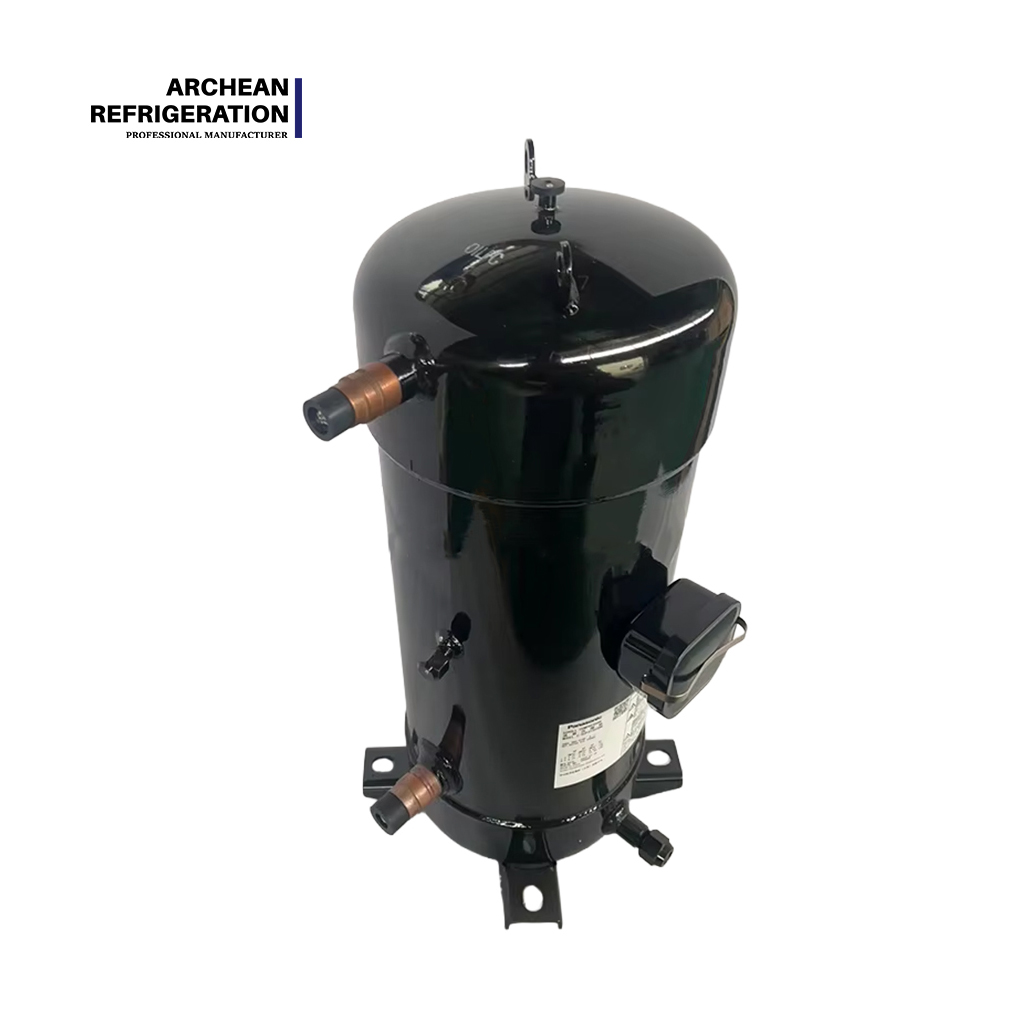

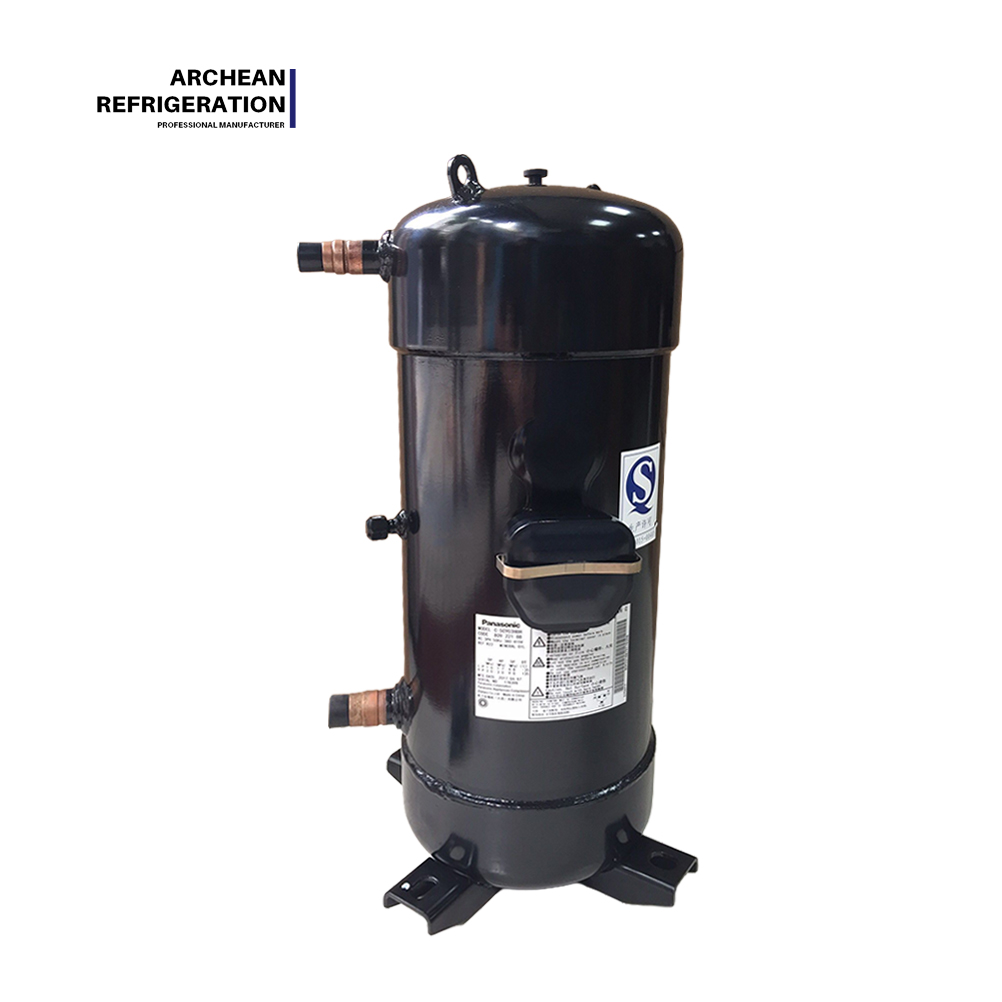

SANYO COMPRESSOR Scroll Compressor C-SC583H8H, C-SC583H8K, C-SC603H8H, C-SC603H8K, C-SC673H8H, C-SC673H8K,

SANYO COMPRESSOR Scroll Compressor C-SC583H8H, C-SC583H8K, C-SC603H8H, C-SC603H8K, C-SC673H8H, C-SC673H8K,

Name: SANYO COMPRESSOR Scroll Compressor C-SC583H8H, C-SC583H8K, C-SC603H8H, C-SC603H8K, C-SC673H8H, C-SC673H8K,
Brand: SANYO
Rating: 5.0 (47 reviews)

C-SC Series – R22 Fixed-Frequency Air Conditioning/Heat Pump Platform
This series is a field-proven fixed-frequency scroll compressor platform designed specifically for commercial air conditioning and heat pump applications using R22 refrigerant. Its core philosophy is to achieve high reliability through mechanical reinforcement—enabling it to withstand the rigorous tests of frequent start-stop cycles and harsh operating conditions.

Model:
C-SC583H8H, C-SC583H8K, C-SC603H8H, C-SC603H8K, C-SC673H8H, C-SC673H8K,
Brand:
SANYO

Availability:

Quantity:



Inquire Add to Basket

Product Description

Key Technical Advantages:

Heavy-Duty Bearing System – Unlike later series that prioritize electrical efficiency, the C-SC series invests heavily in mechanical strength. It utilizes high-performance rolling bearings that effectively absorb both radial and axial during frequent start-stop operations – a common challenge in fixed-speed systems. This design significantly slows bearing wear and extends the compressor's service life under real-world operating conditions.
Direct-Acting Internal Protector – Equipped with a direct-cutoff internal motor protector that instantly breaks the circuit when winding temperatures or currents become abnormal. This hardware-based protection responds faster than external controller-dependent solutions – particularly valuable in regions with unstable power grids or aging electrical infrastructure.
Built-In Suction Strainer – A metal mesh filter is installed at the suction inlet to trap welding slag, metal debris, and other contaminants left in piping during installation or repair. This is especially critical in aftermarket retrofits where system cleaning may not be thorough.
Multi-Refrigerant Flexibility – While optimized for R22, this series is also compatible with R407A, R404A, and other refrigerants, offering system designers flexibility during refrigerant transitions.

Best Suited For: Package air conditioners, chiller units, heat pump water heaters, constant-temperature systems, and industrial refrigeration where R22 is still the preferred refrigerant.

PRODUCT PICTURES产品图片

■ R22--- B8 (50Hz 380—415V/60Hz 440—460V)
Phase	Out Put	Displacement	Compressor Model	Compressor Code	Staring Method	50Hz				60Hz				Outline Graph Code
	Out Put	Displacement				Capacity		COP		Capacity		COP
	HP	cm3/rev				KW	KBTU/h	W/W	BTU/Wh	KW	KBTU/h	W/W	BTU/Wh
3 PHASE	3.5	51.8	C-SB263H8B	80983188		9.15	31.2	3.1	10.6	11.2	38.2	3.2	10.9	B
		51.8	C-SB263H8C	80983288		9.15	31.2	3.10	10.6	11.2	38.2	3.20	10.9	A
		55.7	C-SB263H8A	80983088		9.60	32.8	3.10	10.6	11.8	40.3	3.19	10.9	B
	4	66.8	C-SB303H8A	80984088		11.8	40.3	3.23	11.0	14.4	49.2	3.27	11.2	A
	4	66.8	C-SB303H8G	80984688		11.8	10.3	3.23	11.0	14.4	49.2	3.27	11.2	At
	4.5	77.4	C-SB353H8A	80984288		13.5	46.1	3.18	10.9	16.7	57.0	3.28	11.2	A
	4.5	77.4	C-SB353H8G	80984788		13.5	46.1	3.18	10.9	16.7	57.0	3.28	11.2	At
	5	83.2	C-SB373H8A	80985088		14.5	49.5	3.19	10.9	17.9	61.1	3.23	11.0	A
		83.2	C-SB373H8G	80985688		14.5	49.5	3.19	10.9	17.9	61.1	3.23	11.0	At
		85.5	C-SB373H8F	80983588		15.0	51.2	3.19	10.9	18.4	62.8	3.20	10.9	A
	5.5	90.6	C-SBR195H38A	—		16.0	54.6	3.20	10.9	19.4	66.2	3.23	11.0	A
	6	100.0	C-SB453H8A	80986088		17.7	60.4	3.26	11.1	21.5	73.4	3.24	11.1	A
			C-SB453H8F	80986588		17.7	60.4	3.26	11.1	21.5	73.4	3.24	11.1	Jt
			C-SB453H8G	80986688		17.7	60.4	3.26	11.1	21.5	73.4	3.24	11.1	At
		110.2	C-SBR235H38A	—		19.2	65.6	3.20	10.9	23.2	79.2	3.27	11.2	A
		110.2	C-SBR235H38B	—		19.2	65.6	3.20	10.9	23.2	79.2	3.27	11.2	At
	8	131.9	C-SC583H8H	80986688		23.6	80.6	3.30	11.3	28.5	97.3	3.26	11.1	D
		131.9	C-SC583H8K	80928688		23.6	80.6	3.30	11.3	28.5	97.3	3.26	11.1	Dt
		137.0	C-SC603H8H	80928188		24.5	83.6	3.31	11.3	29.6	101.1	3.29	11.2	D
		137.0	C-SC603H8K	80928388		24.5	83.6	3.31	11.3	29.6	101.1	3.29	11.2	Dt
	9	148.8	C-SC673H8H	80929188		26.5	90.5	3.29	11.2	32.0	109.3	3.27	11.2	D
	9	148.8	C-SC673H8K	80929388		26.5	90.5	3.29	11.2	32.0	109.3	3.27	11.2	Dt
	10	171.2	C-SC753H8H	80920188		30.6	104.5	3.38	11.5	36.9	126.0	3.32	11.3	E
	10	171.2	C-SC753H8K	80920388		30.6	104.5	3.38	11.5	36.9	126.0	3.32	11.3	Et
	12	199.1	C-SC863H8H	80922488		35.2	120.2	3.32	11.3	—	—	—	—	E
		205.4	C-SC903H8H	80922188		36.1	123.3	3.31	11.3	—	—	—	—	E
		205.4	C-SC903H8K	80922388		36.1	123.3	3.31	11.3	一	—	—	—	Et

more models PLS CONTACT更多型号，请联系客户服务。 PACKING DELIVERING包装与交付

CUSTOMER SERVICE客户服务加水印 LOGISTICS SOLUTIONS物流解决方案物流运输 FAQ常见问题

Q1: The compressor fails to start. How to troubleshoot?

Symptoms: No response from the compressor after power is turned on, or it shuts down after emitting a "humming" sound.

Possible Causes:

Power supply failure — Blown fuse, tripped circuit breaker, low voltage.
Wiring issues — Poor connection or disconnected wires.
Control device failure — Malfunctioning thermostat, pressure switch activated.
Motor failure — Winding short circuit, open circuit, or grounded (touching the casing).

Solutions:

Check whether the compressor wiring and piping connections are normal.
Use a multimeter to measure the main and auxiliary coil impedance, as well as insulation withstand voltage.
Check whether the power supply voltage is within the rated range (When the voltage is too low, the locked-rotor current may not reach the protector trip current, which can cause the motor to overheat and burn out).
If all the above are normal, remove the compressor and perform a no-load test to check for suction and discharge — During operation, press your finger against the exhaust port for a few seconds and then release it to observe if gas sprays out.

Q2: What causes the compressor to suddenly stop during operation?

Symptoms: The compressor suddenly stops during normal operation and cannot automatically recover.

Possible Causes:

Suction pressure too low — Below the low-pressure limit of the low-pressure switch.
Discharge pressure too high — Causes the high-pressure switch to trip and cut off power.
Oil pressure too low — Oil pressure switch activated.
Motor overload — Thermal relay activated.

Solutions:

Check if the pipeline is blocked and if the system refrigerant is insufficient.
Check the condenser cooling water volume or cooling air volume.
Inspect the oil delivery system piping and oil pump.
Check if the power supply voltage is low or if the cooling load is too high.

Q3: How to handle excessively high discharge pressure?

Symptoms: The discharge pressure remains consistently high and may trigger a high-pressure alarm.

Possible Causes:

Insufficient cooling water for the water-cooled condenser, or insufficient cooling air volume for the air-cooled condenser.
Excessive scale or oil/dirt on the surface of the condenser tube bundle, making heat dissipation difficult.
Air (non-condensables) present in the refrigeration system.
Overcharging of refrigerant.
Valve failure in the exhaust pipeline.

Solutions:

Check if the valves are fully open, increase water supply, or check the motor voltage and speed.
Clean the scale, scrub off oil and dirt, and keep the surface of the condenser tube bundle clean.
Purge the air from the system.
Release excess refrigerant.
Inspect and repair/replace the valve.
