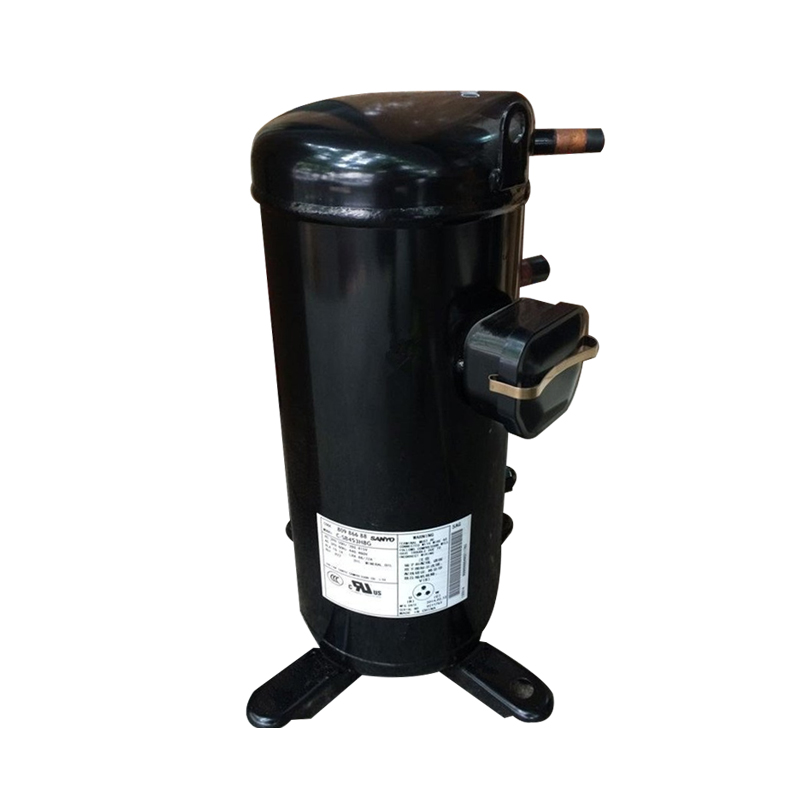

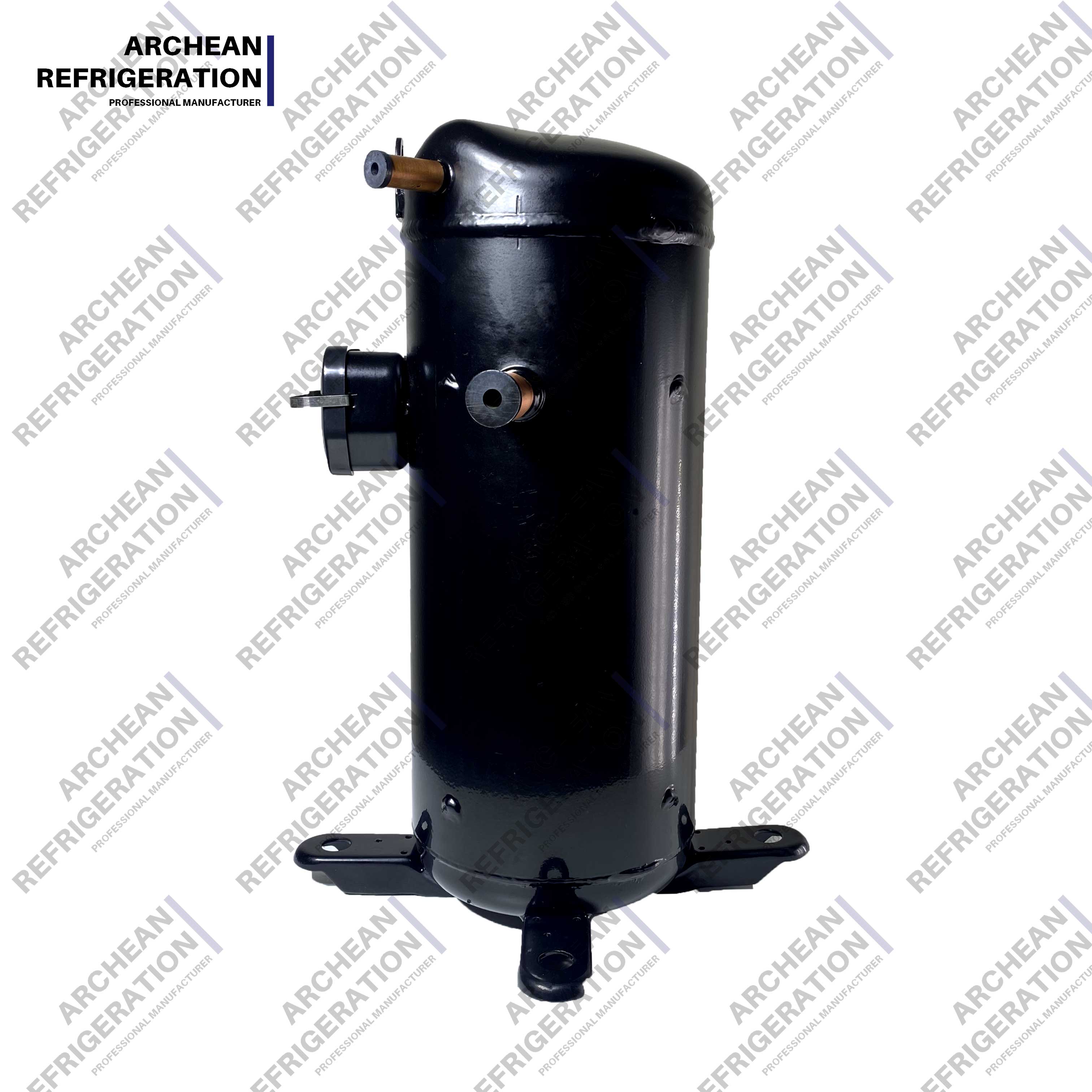

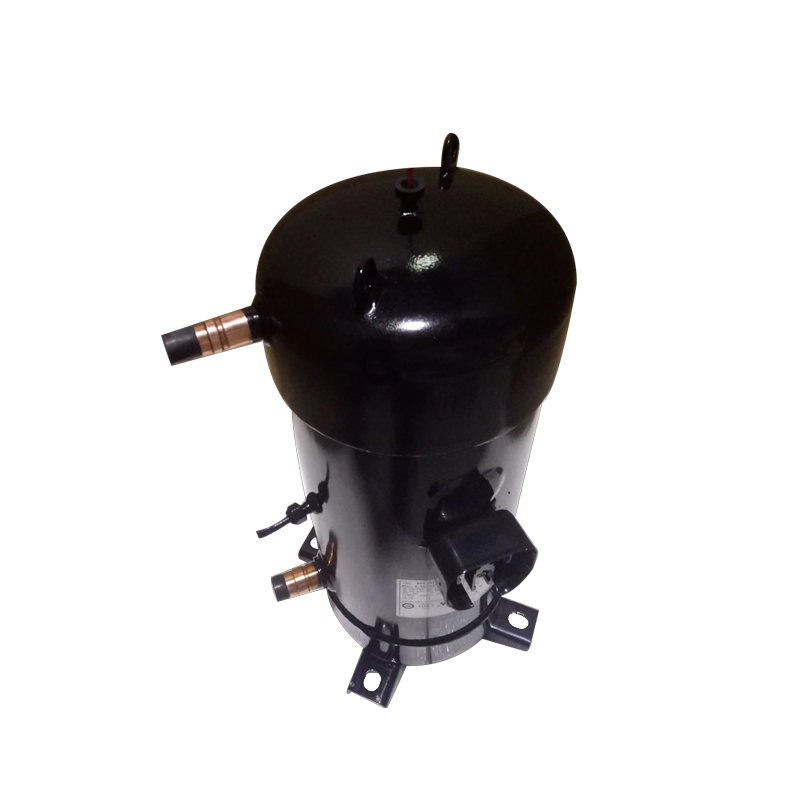

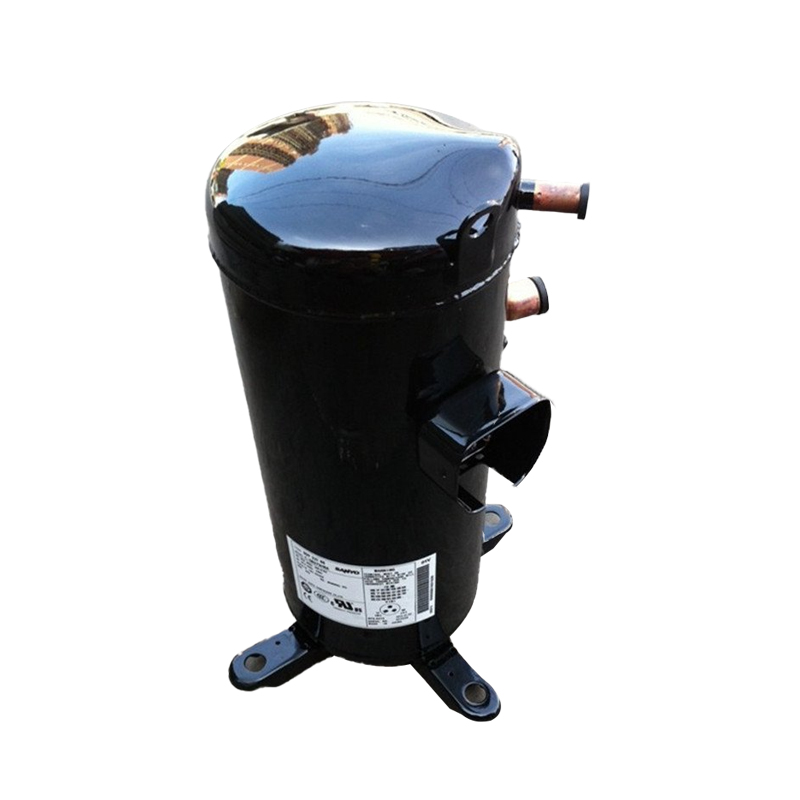

New C-SCP400H38M C-SCP400H38A C-SCP400H38B C-SCP435H38B Scroll Compressors for Refrigeration Air Conditioner Essential Heat Exchange Parts

Functional Attributes of C-SCP Series Compressors

Functional Attributes

• Cooling/Heating Capability：
  Serves as the core component of heat pump air conditioning systems, offering both cooling and heating functions. Cooling capacity ranges from 32.6 kW to 37.2 kW, with heating capacity up to 31,200 W, meeting temperature regulation needs across different seasons.

• Temperature Regulation Range：
  Evaporation temperature range: -22°C to +25°C; condensation temperature range: +22°C to +67°C; compression ratio: 1.5–8, adapting to diverse operating conditions from low-temperature freezing to high-temperature cooling.

• Energy Efficiency Management：
  Energy efficiency ratio reaches 3.01–3.22 W/W. Utilizes efficient scroll compression technology, achieving significant energy savings compared to traditional compressors and reducing operational costs.

• Operation Control：
  Supports fixed displacement operation mode. Operating noise is below 69 dB(A), with optimized internal structures and vibration-damping systems ensuring smooth and quiet operation.

Technical Attributes

• Structural Attributes：
  Fully enclosed scroll-type structure; rotary/scroll design; displacement volume: 127.8–131.9 cm³/rev; weight: 35–80 kg.

• Electrical Attributes：
  Power supply: three-phase 380–415 V/50 Hz or 440–460 V/60 Hz; input power: 9,700–10,900 W; current: 16.7–18.3 A.

• Refrigerant Attributes：
  Compatible with environmentally friendly refrigerant R410A; refrigeration oil model: FV68S; oil charge volume: 2,800 ml.

Application Attributes

• Environmental Adaptability：
  Suitable for various operating conditions with evaporation temperatures of -15°C to 12°C and condensation temperatures of +22°C to +67°C. Compression ratio: 1.5–8, adaptable to different application scenarios.

• Reliability Attributes：
  Fully enclosed structural design, reinforced core components, cumulative testing time exceeding 180,000 hours, ensuring high reliability.

• Maintenance Attributes：
  Fully enclosed design reduces maintenance frequency, lowers maintenance costs, and extends equipment service life.

• Safety Attributes：
  Equipped with safety features such as overload protection and overheating protection, ensuring safe operation under various working conditions.

It is widely used in commercial central air conditioning systems, chiller units, refrigeration and freezing equipment, and other fields.
