Sanyo Model C-SCN583H8H, C-SCN583H8K, C-SCN583H8T, C-SCN603H8H, C-SCN603H8K, C-SCN603H8T, C-SCN673HBHCompressor for High Specification Cold Rooms

Sanyo Model C-SCN583H8H, C-SCN583H8K, C-SCN583H8T, C-SCN603H8H, C-SCN603H8K, C-SCN603H8T, C-SCN673HBHCompressor for High Specification Cold Rooms

Name: Sanyo Model C-SCN583H8H, C-SCN583H8K, C-SCN583H8T, C-SCN603H8H, C-SCN603H8K, C-SCN603H8T, C-SCN673HBHCompressor for High Specification Cold Rooms
Brand: SANYO
Rating: 5.0 (81 reviews)

Hermetic scroll compressors optimized for R407C refrigerant. This series features multi-refrigerant compatibility (R407C / R134a / R404A) and a mid-to-large power coverage of 7.7–15 HP as its core characteristics, widely used in industrial air conditioning, heat pump systems, and medium-to-high temperature refrigeration equipment.

Model:
C-SCN583H8H C-SCN583H8K C-SCN583H8T C-SCN603H8H C-SCN603H8K C-SCN603H8T C-SCN673HBK C-SCN673HBH C-SCN673H8H C-SCN753H8H C-SCN753H8K C-SCN753H8T C-SCN903H8H C-SCN903H8K
Brand:
SANYO

Availability:

Quantity:



Inquire Add to Basket

Product Description

I. Positioning

The C-SCN series is Panasonic/Sanyo's product line of hermetic scroll compressors optimized for R407C refrigerant, covering five capacity grades: C-SCN583, C-SCN603, C-SCN673, C-SCN753, and C-SCN903. With its core features being multi-refrigerant compatibility (R407C / R134a / R404A) and a mid-to-large power coverage of 7.7–15 HP, the series is widely used in industrial air conditioning, heat pump systems, and medium-to-high temperature refrigeration equipment.

Feature Dimension	Description
Technology Type	Hermetic scroll, fixed-speed
Power Range	7.7 HP – 15 HP
Refrigerant	R407C (compatible with R134a / R404A)
Power Supply	3-Phase 380-415V/50Hz, 440-460V/60Hz
Application Condition	Medium-to-high temp A/C and heat pumps

II. Full Series Parameter Comparison Table

Conditions: 50Hz / 60Hz, R407C refrigerant.

Note on suffix differences:The main difference among H / K / T suffixes lies in piping connection specifications and electrical connection configurations; core performance parameters are identical.

No.	Model	Nominal HP	Displacement (cm³)	Cooling Capacity 50Hz (W)	Cooling Capacity 60Hz (W)	COP 50Hz	COP 60Hz	Net Weight (kg)
1	C-SCN583H8H	7.7	131.9	23,600	28,000	3.13	3.03	—
2	C-SCN583H8K	7.7	131.9	23,600	28,000	3.13	3.03	—
3	C-SCN583H8T	7.7	131.9	23,600	28,000	3.13	3.03	—

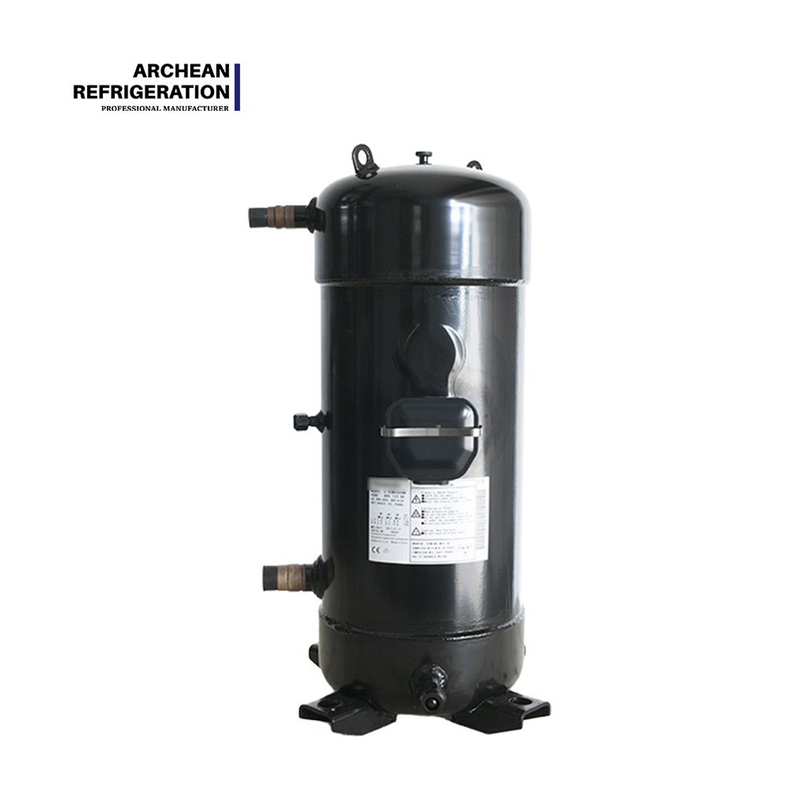

4	C-SCN603H8H	8.0	137.0	24,500	29,600	3.31	3.29	—
5	C-SCN603H8K	8.0	137.0	24,500	29,600	3.31	3.29	—
6	C-SCN603H8T	8.0	137.0	24,500	29,600	3.31	3.29	—
7	C-SCN673HBK	9.0	148.8	—	—	—	—	—
8	C-SCN673HBH	9.0	148.8	—	—	—	—	—

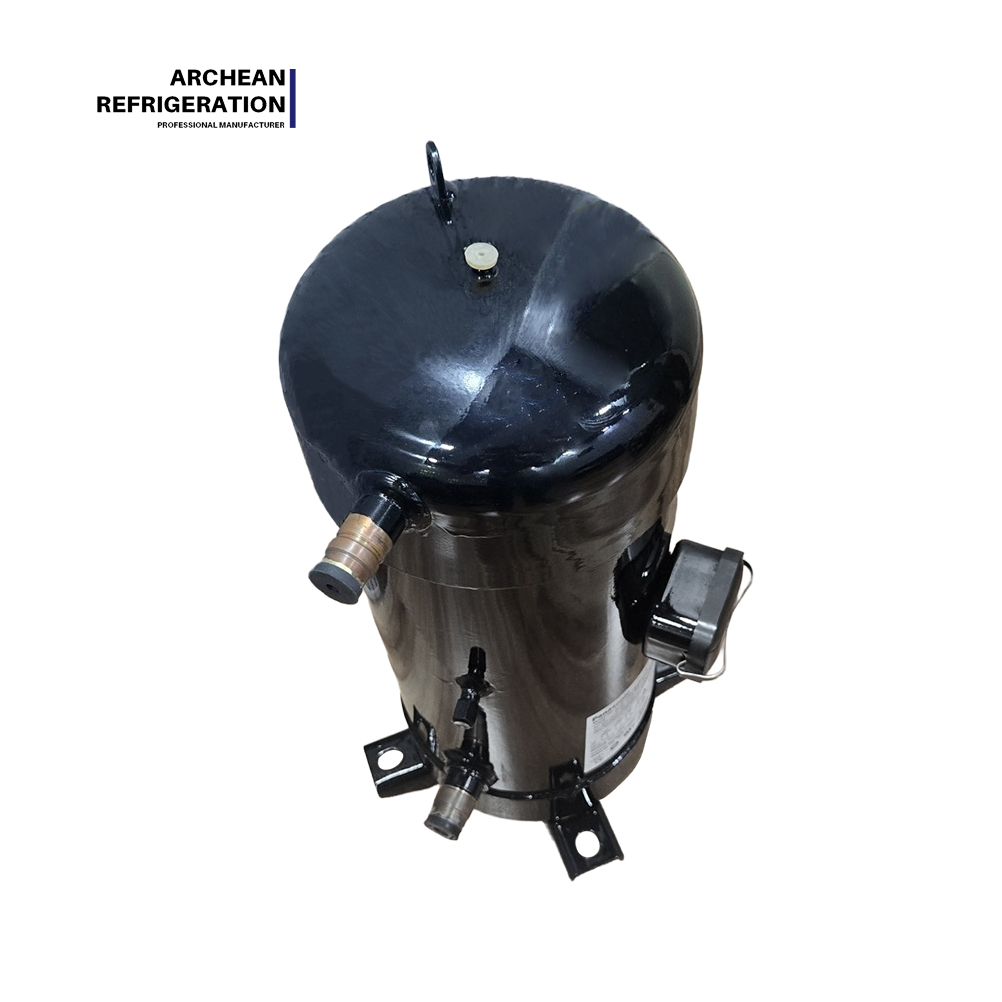

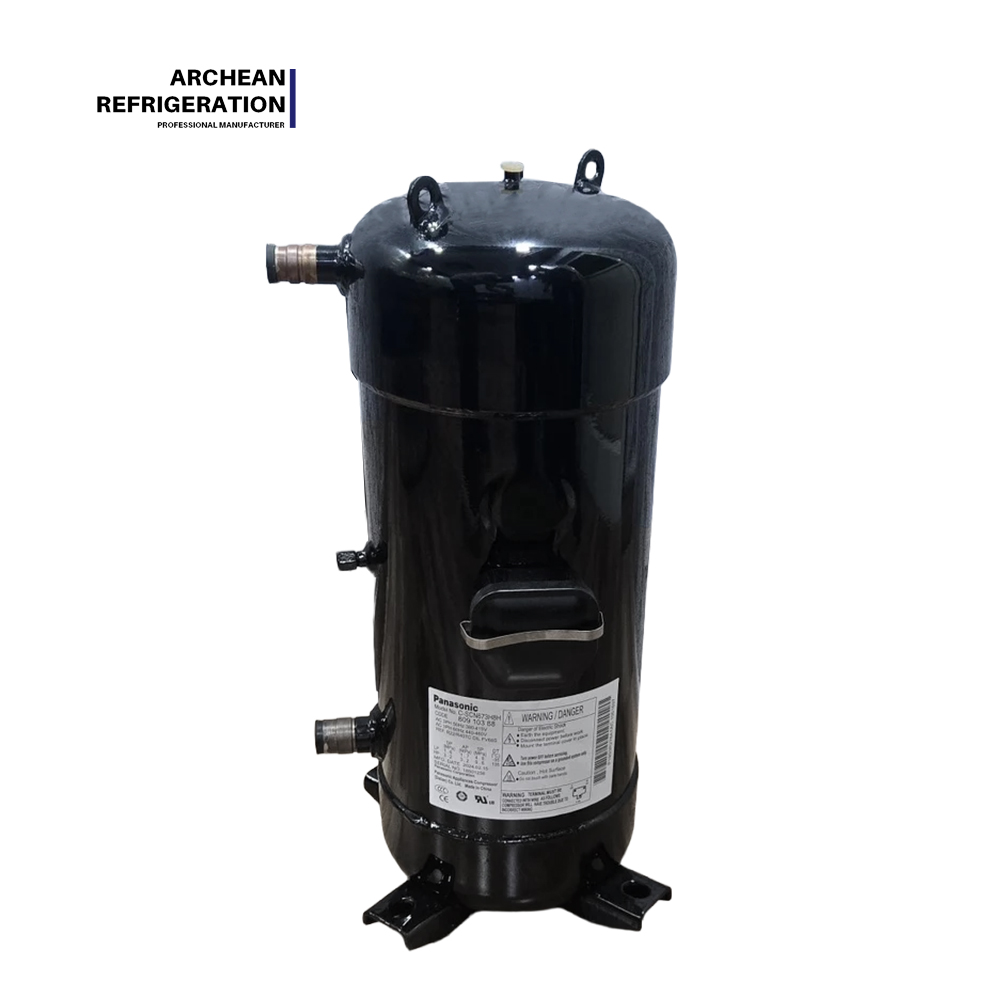

9	C-SCN673H8H	9.0	148.8	—	—	—	—	—
10	C-SCN753H8H	10.0	171.2	29,900	35,900	3.20	3.12	—
11	C-SCN753H8K	10.0	171.2	29,900	35,900	3.20	3.12	—
12	C-SCN753H8T	10.0	171.2	29,900	35,900	3.20	3.12	—
13	C-SCN903H8H	15.0	—	—	—	—	—	—
14	C-SCN903H8K	15.0	—	—	—	—	—	—

*Suffix difference note: The H / K / T suffixes mainly differ in piping connection specs and electrical connection configurations; core performance parameters are identical.

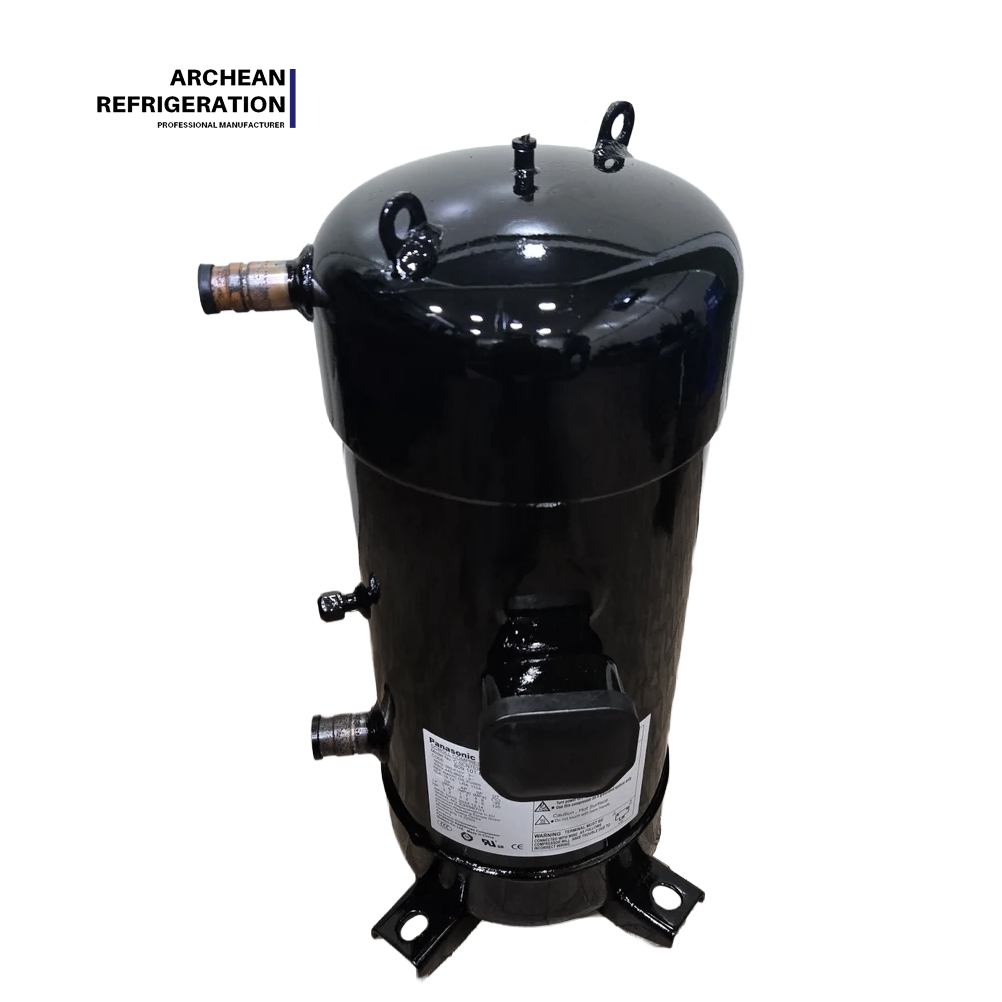

C-SCN753H8H(

more models PLS CONTACT更多型号，请联系客户服务。

III. Detailed Analysis

Feature: The C-SCN series adopts a hermetic scroll structure with multi-refrigerant compatibility — a single compressor can adapt to multiple refrigerants including R407C, R134a, R448A, and R449A. The compressor is equipped with a built-in motor protector, and a filter screen is installed inside the suction port to effectively protect the compressor from contaminant damage. Main and sub bearings use high-performance rolling bearings to ensure long-term operational reliability.
Advantage: The series' core advantage is multi-refrigerant compatibility, allowing a single compressor to adapt to multiple refrigerant schemes, greatly simplifying equipment manufacturers' inventory management and refrigerant-switching costs. COP reaches 3.13–3.31, delivering excellent energy efficiency. Wide-voltage design (380-415V/50Hz, 440-460V/60Hz) adapts to global mainstream industrial power standards.
Benefit: For equipment manufacturers, the C-SCN series means one compressor fits multiple refrigerant schemes, reducing R&D costs and inventory complexity. For refrigeration contractors, it means transitioning from R22 systems to R407C/R134a systems without changing the compressor brand or installation method, lowering technical risk. For end users, high COP and the built-in protection system ensure long-term operational economy and safety.

IV. Application Quick Selection Guide

Application Scenario	Recommended Model	HP	Key Advantage
Medium commercial A/C	C-SCN583H8H	7.7	23.6 kW, COP 3.13
Commercial A/C / Heat pump	C-SCN603H8H	8.0	24.5 kW, COP 3.31
Industrial A/C	C-SCN673H8H	9.0	148.8 cc displacement
Large commercial A/C	C-SCN753H8H	10.0	29.9 kW, COP 3.20
Large heat pump / Industrial refrigeration	C-SCN903H8H	15.0	Flagship-level cooling capacity

V. FAQ

Q1: What is the difference between H / K / T suffixes?

The H / K / T suffixes mainly differ in piping connection specifications and electrical connection configurations; core performance parameters are completely identical. When selecting, please determine the suffix based on the original equipment's connection specifications.

Q2: Which refrigerants is the C-SCN series compatible with?

The C-SCN series is primarily designed for R407C, while also compatible with R134a, R448A, R449A, and other refrigerants.

PACKING DELIVERING包装与交付

LOGISTICS SOLUTIONS物流解决方案

Why Choose the Panasonic/Sanyo C-SCN Series for Your Next Project?

Spanning 7.7 to 15 HP, the C-SCN series brings multi-refrigerant versatility (R407C / R134a / R448A / R449A) to a proven hermetic scroll platform. Featuring COP up to 3.31, worldwide voltage compatibility (380-415V/50Hz & 440-460V/60Hz), and a hassle-free upgrade path from traditional R22 systems — this single compressor line covers industrial air conditioning, heat pump systems, and medium-to-high temperature refrigeration applications.

Reach out today for competitive pricing. H, K, or T suffix — whatever your equipment requires, we deliver.

RELATED PRODUCTS

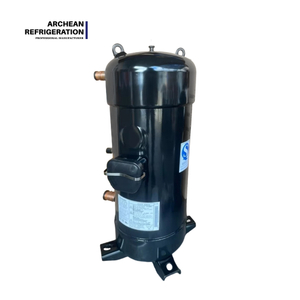

High Cost Performance Sanyo Scroll Compressor C-SC753H8H, C-SC753H8K, C-SC863H8H, C-SC903H8H, C-SC903H8K Factory Price Refrigeration Heat Exchange Parts
