C-SCP270H38A, C-SCP270H38B, C-SCP315H3BA, C-SCP315H38B, C-SCP360H38A, C-SCP360H38B Central Air Conditioning Chiller Compressor for Refrigeration

C-SCP270H38A, C-SCP270H38B, C-SCP315H3BA, C-SCP315H38B, C-SCP360H38A, C-SCP360H38B Central Air Conditioning Chiller Compressor for Refrigeration

Name: C-SCP270H38A, C-SCP270H38B, C-SCP315H3BA, C-SCP315H38B, C-SCP360H38A, C-SCP360H38B Central Air Conditioning Chiller Compressor for Refrigeration
Brand: SANYO
Rating: 5.0 (42 reviews)

Built on a purpose-built platform engineered from the ground up for R410A's high-pressure characteristics — not a simple retrofit. With its core features being complete 8–15 HP power coverage and a high-pressure dedicated architecture, the series is widely used in large commercial air conditioning, water chillers, and heat pump systems.

Model:
C-SCP270H38A C-SCP270H38B C-SCP315H3BA C-SCP315H38B C-SCP360H38A C-SCP360H38B C-SCP360H38M C-SCP400H38A C-SCP400H38B C-SCP400H38M C-SCP435H38B C-SCP510H38B
Brand:
SANYO

Availability:

Quantity:



Inquire Add to Basket

Product Description

I. Positioning

The C-SCP series is Panasonic/Sanyo's product line of hermetic scroll compressors optimized exclusively for R410A refrigerant, covering six capacity grades: C-SCP270, C-SCP315, C-SCP360, C-SCP400, C-SCP435, and C-SCP510. The " P" in the model designation explicitly stands for R410A-dedicated, adopting a purpose-built platform engineered from the ground up for R410A's high-pressure characteristics — not a simple retrofit. With its core features being complete 8–15 HP power coverage and a high-pressure dedicated architecture, the series is widely used in large commercial air conditioning, water chillers, and heat pump systems.

Feature Dimension	Description
Power Range	8 HP – 15 HP
Refrigerant	R410A
Power Supply	3-Phase 380-415V/50Hz, 440-460V/60Hz
Application Condition	High-temp A/C and refrigeration

II. Full Series Parameter Comparison Table

Conditions: 50Hz / 60Hz, R410A refrigerant.

No.	Model	Nominal HP	Displacement (cm³)	Cooling Capacity 50Hz (W)	Cooling Capacity 60Hz (W)	COP 50Hz	COP 60Hz	Net Weight (kg)
1	C-SCP270H38A	8.0	89.2	22,800	27,600	3.14	3.15	—
2	C-SCP270H38B	8.0	89.2	22,800	27,600	3.14	3.15	—
3	C-SCP315H3BA	10.0	104.1	26,400	—	3.16	—	—
4	C-SCP315H38B	10.0	104.1	26,400	—	3.16	—	—

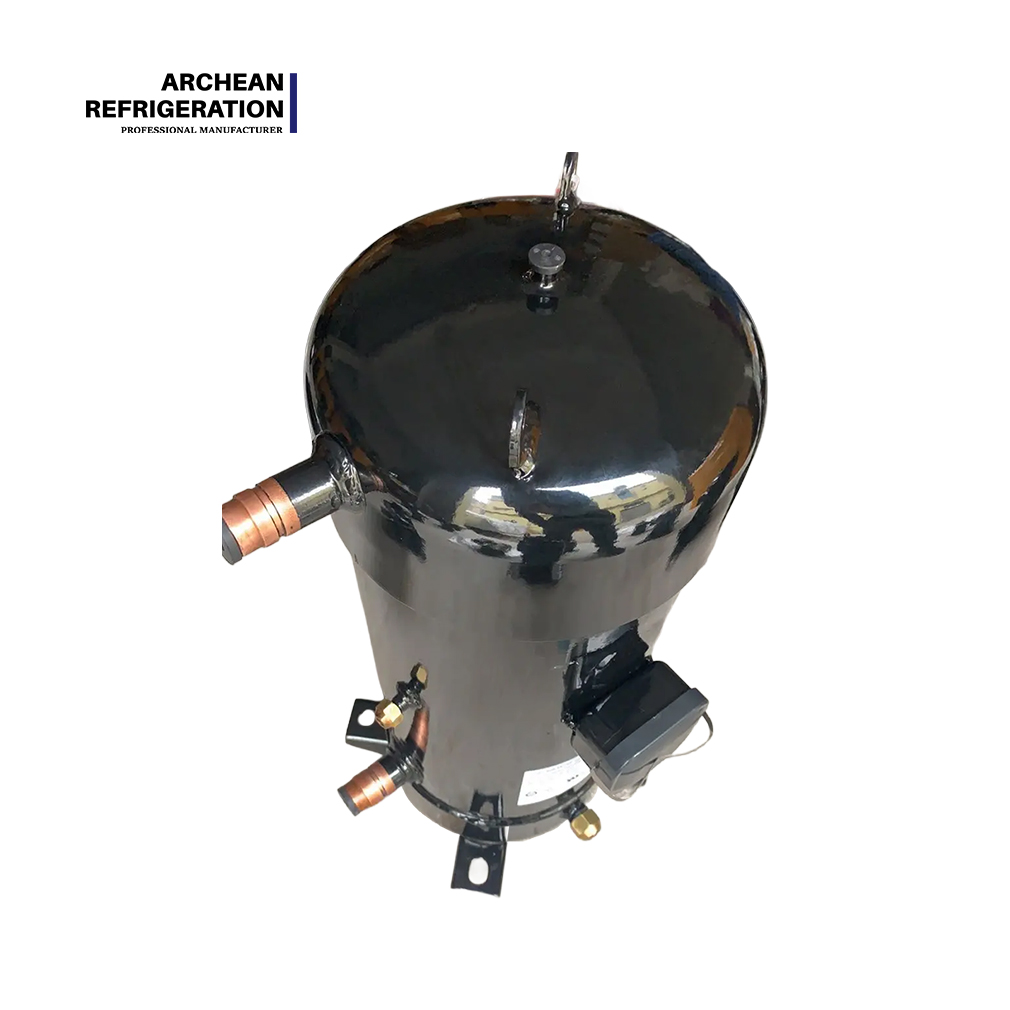

5	C-SCP360H38A	11.0	120.2	30,300	36,600	3.14	3.16	—
6	C-SCP360H38B	11.0	120.2	30,300	36,600	3.14	3.16	—
7	C-SCP360H38M	11.0	120.2	30,300	36,600	3.14	3.16	—
8	C-SCP400H38A	12.0	131.9	32,800	—	3.01	—	—
9	C-SCP400H38B	12.0	131.9	32,800	—	3.01	—	—
10	C-SCP400H38M	12.0	131.9	32,800	—	3.01	—	—
11	C-SCP435H38B	13.0	148.8	37,200	44,600	3.15	3.16	—

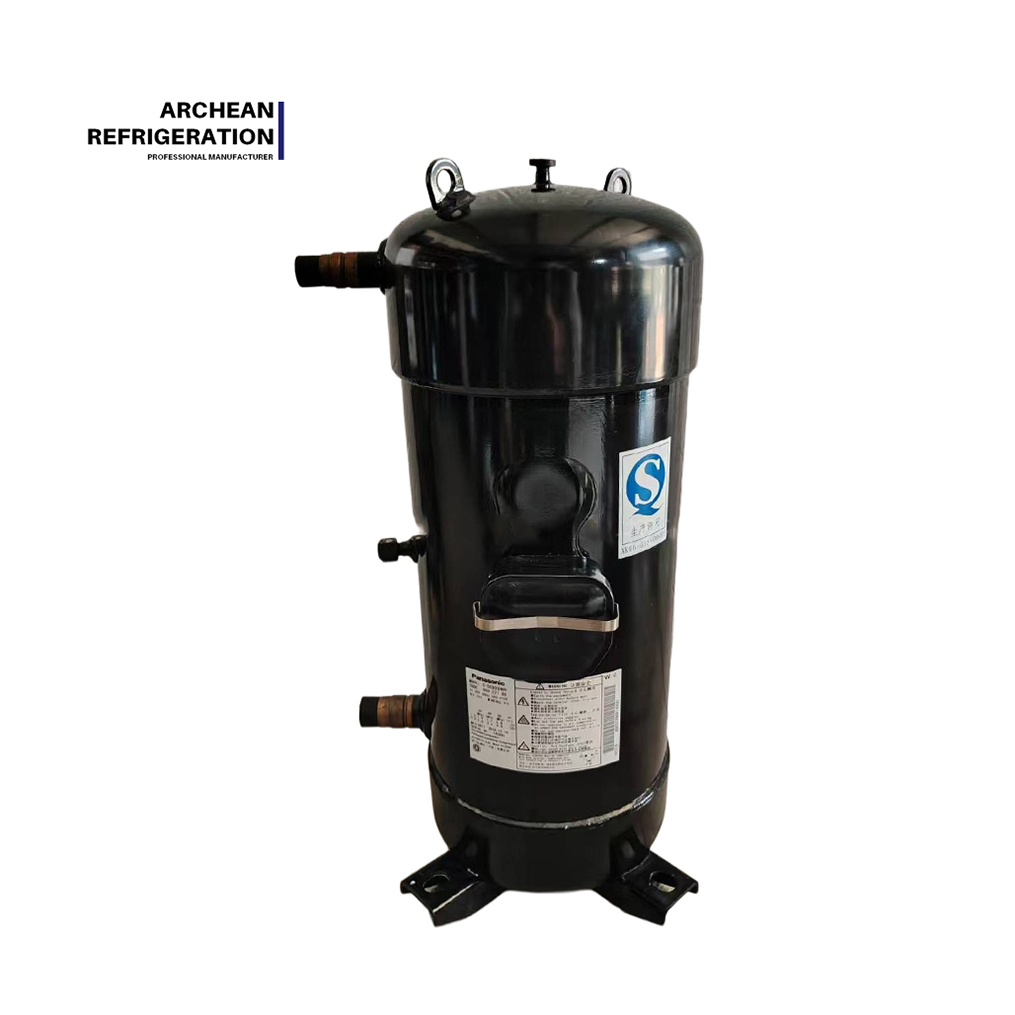

12	C-SCP510H38B	15.0	171.2	43,800	—	3.18	—	—

III. Detailed Analysis

Feature: The C-SCP series adopts a purpose-built platform engineered from the ground up for R410A's high-pressure characteristics. R410A operating pressure is approximately 60% higher than R22, imposing stricter requirements on compressor structural integrity. The C-SCP series features scroll plate end-face seal clearances precisely calculated to minimize leakage under high-pressure differentials; motor windings use high-quality insulating materials to prevent corona discharge in high-voltage environments; shell wall thickness and welding processes are correspondingly reinforced to withstand higher burst pressures. This "born for high pressure" design philosophy enables R410A systems to achieve reliability and service life that surpass general-purpose platforms adapted for R410A compatibility through retrofitting.
Advantage: The series' core advantage lies in its high-pressure dedicated architecture. COP reaches 3.01–3.18, maintaining high energy efficiency in R410A high-pressure systems. The complete 8–15 HP power coverage meets diverse demands from small-to-medium to large commercial projects. Noise levels as low as 71 dB (C-SCP510H38B), suitable for commercial spaces with acoustic environment requirements.
Benefit: For large commercial A/C and water chiller applications, the C-SCP series' R410A-optimized high-pressure architecture ensures long-term reliable operation under high-pressure conditions. For equipment manufacturers, choosing a dedicated platform means lower failure rates and reduced after-sales service costs. For end users, the high EER of R410A systems combined with the reliability of a dedicated platform lowers total lifecycle cost while guaranteeing cooling performance.

IV. Application Quick Selection Guide

Application Scenario	Recommended Model	HP	Key Advantage
Medium commercial A/C	C-SCP270H38A	8.0	22.8 kW, COP 3.14
Commercial A/C / Water chiller	C-SCP315H38B	10.0	26.4 kW, COP 3.16
Large commercial A/C	C-SCP360H38A	11.0	30.3 kW, COP 3.14
Large water chiller	C-SCP400H38A	12.0	32.8 kW, COP 3.01
Large commercial / Industrial refrigeration	C-SCP435H38B	13.0	37.2 kW, COP 3.15
Extra-large commercial A/C	C-SCP510H38B	15.0	43.8 kW, COP 3.18

V. FAQ

Q1: What is the difference between the C-SCP series and the C-SCN series?

The C-SCP series uses R410A refrigerant and adopts a purpose-built platform designed specifically for R410A's high-pressure characteristics; the C-SCN series uses R407C refrigerant and features multi-refrigerant compatibility. The two series are not interchangeable.
