Sanyo Home Use Heat Pump Scroll Type Air Conditioner Compressor New C-SBN453H8A、C-SBN453H8D、C-SBN453H8G、C-SBN453H8H

Sanyo Home Use Heat Pump Scroll Type Air Conditioner Compressor New C-SBN453H8A、C-SBN453H8D、C-SBN453H8G、C-SBN453H8H

Name: Sanyo Home Use Heat Pump Scroll Type Air Conditioner Compressor New C-SBN453H8A、C-SBN453H8D、C-SBN453H8G、C-SBN453H8H
Brand: SANYO
Rating: 5.0 (19 reviews)

Panasonic/Songyang C-SB/C-SBN Series: Dual-platform (R22/R410A) fully hermetic scroll compressors (3.5–6 HP). One-stop supply for both refrigerant solutions, COP up to 3.27. The flexible power core for commercial A/C and industrial refrigeration.

Model:
C-SB303H8A C-SB303H8G C-SB353H8A C-SB353H8G C-SB453H8A C-SB453H8F C-SB453H8G C-SBN303H8D C-SBN303H8H C-SBN353H8D C-SBN353H8H C-SBN373H8D C-SBN373H8H C-SBN453H8A C-SBN453H8D C-SBN453H8G C-SBN453H8H
Brand:
SANYO

Availability:

Quantity:



Inquire Add to Basket

Product Description

I. Positioning

The C-SB/C-SBN series is Panasonic/Songyang's line of fully hermetic scroll compressors optimized for both R22 and R410A dual platforms, covering seven capacity levels: C-SB303, C-SB353, C-SB453 (R22 platform) and C-SBN303, C-SBN353, C-SBN373, C-SBN453 (R410A platform). With a complete power range of 3.5–6 HP and flexible R22/R410A dual-platform adaptation as its core features, this series is widely used in industrial air conditioning, heat pump systems, and commercial refrigeration equipment.

Feature Dimension	Description
Power Range	3.5 HP – 6 HP
Refrigerant	R22 (SB Series) / R410A (SBN Series)
Power Supply	3-Phase 380-415V/50Hz, 440-460V/60Hz
Application Duty	Heat pumps & air conditioning

II. Full Series Parameter Comparison Table

(A) C-SB Series (R22 Refrigerant)

No.	Model	Nominal HP	Displacement (cm³)	Cooling Capacity 50Hz (W)	Cooling Capacity 60Hz (W)	COP 50Hz	COP 60Hz
1	C-SB303H8A	4.0	66.8	11,800	14,400	3.23	3.27
2	C-SB303H8G	4.0	66.8	11,800	14,400	3.23	3.27
3	C-SB353H8A	4.5	77.4	13,500	—	—	—
4	C-SB353H8G	4.5	77.4	—	—	—	—
5	C-SB453H8A	6.0	100.0	17,700	—	—	—
6	C-SB453H8F	6.0	100.0	—	—	—	—
7	C-SB453H8G	6.0	100.0	—	—	—	—

C-SB303H8A, C-SB353H8A, and C-SB453H8A feature displacements of 66.8, 77.4, and 100.0 cm³, with 50Hz cooling capacities of 11.8kW, 13.5kW, and 17.7kW respectively.

(B) C-SBN Series (R410A Refrigerant)

No.	Model	Nominal HP	Displacement (cm³)	Cooling Capacity 50Hz (W)	Cooling Capacity 60Hz (W)	COP 50Hz	COP 60Hz
1	C-SBN303H8D	3.7	39.9	9,800	12,200	2.68	2.87
2	C-SBN303H8H	3.7	39.9	9,800	12,200	2.68	2.87
3	C-SBN353H8D	4.5	52.5	—	—	—	—
4	C-SBN353H8H	4.5	52.5	—	—	—	—
5	C-SBN373H8D	5.0	60.4	—	—	—	—
6	C-SBN373H8H	5.0	60.4	—	—	—	—

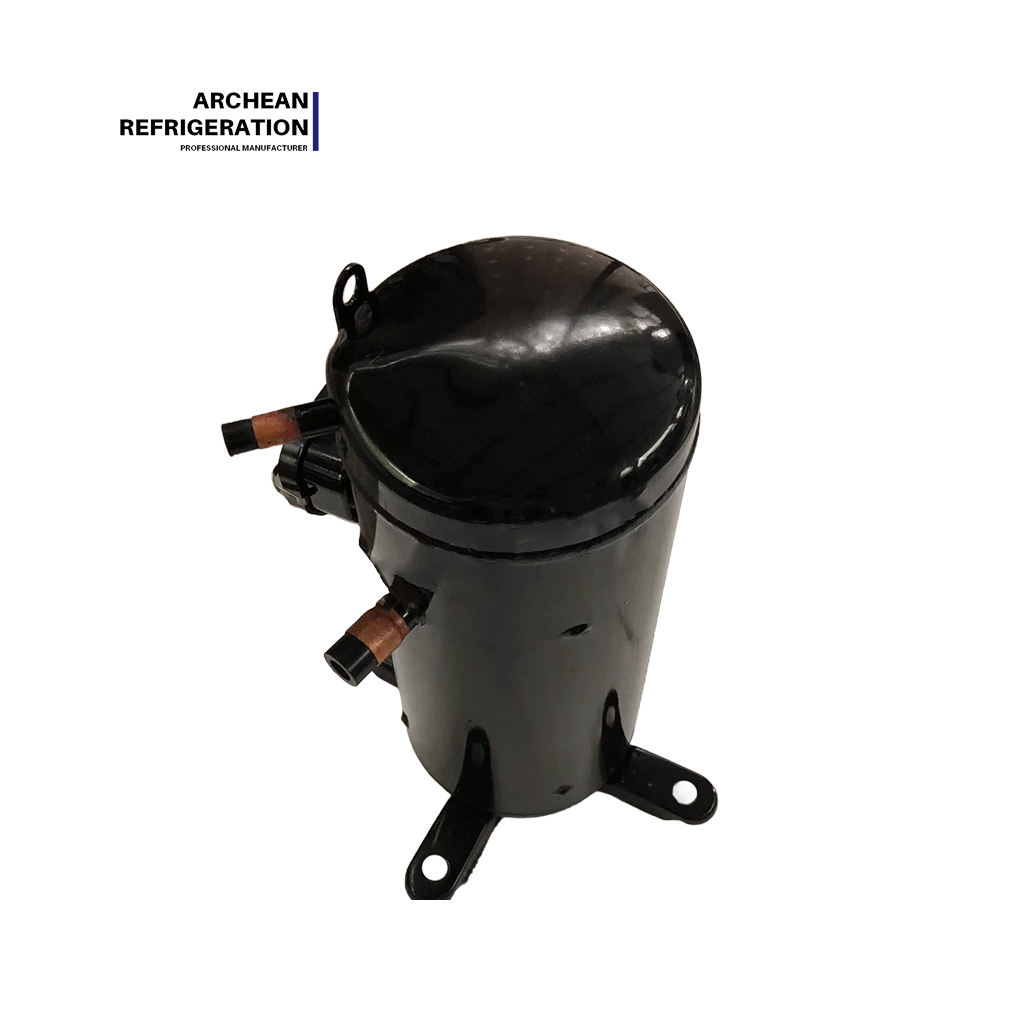

7	C-SBN453H8A	6.0	76.0	—	—	—	—
8	C-SBN453H8D	6.0	76.0	—	—	—	—
9	C-SBN453H8G	6.0	76.0	—	—	—	—
10	C-SBN453H8H	6.0	66.8	16,400	—	2.85	—

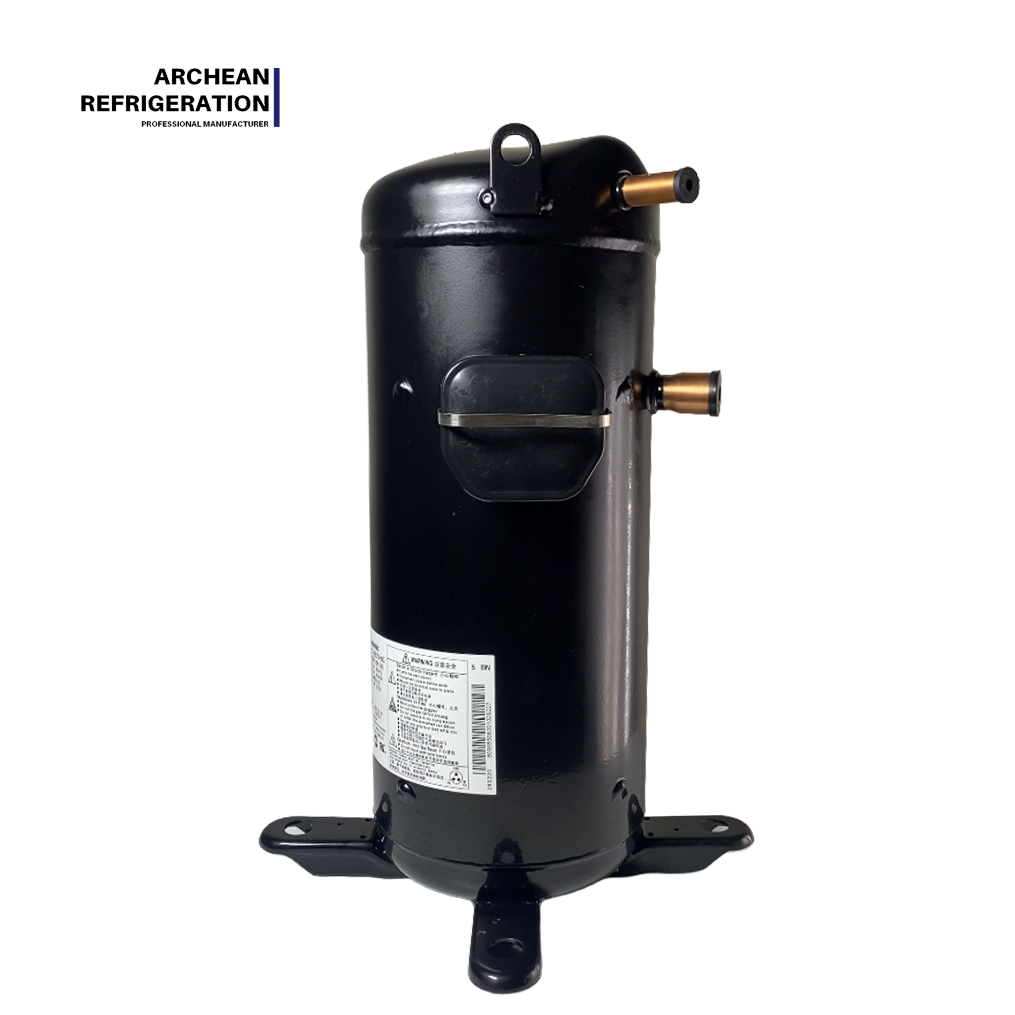

C-SBN453H8H: Cooling capacity 16,400W, COP 2.85, displacement 66.8 cm³, noise level 65 dB.

III. Detailed Overview

Feature: The C-SB/C-SBN series adopts a dual-platform architecture—the SB series (R22) uses mineral oil, while the SBN series (R410A) uses POE ester oil. The SBN series is built on a foundation specifically engineered for R410A's high-pressure characteristics; since R410A's operating pressure is approximately 60% higher than R22, it demands greater structural strength from the compressor. Scroll wrap end-face seal clearances are precisely calculated to minimize leakage under high-pressure differentials. The C-SBN453H8H features a built-in motor protector, with a high-side design pressure of 4.1 MPa and low-side pressure of 2.2 MPa.

Advantage: This series centers on flexible R22/R410A dual-platform adaptation and complete power coverage. The SB303H8A achieves a COP of 3.23 at 50Hz and 3.27 at 60Hz. The SBN453H8H delivers 16,400W cooling at 50Hz with a COP of 2.85, noise as low as 65 dB, equipped with FV68S refrigerant oil (charge volume 1,700 ml) and a net weight of 40 kg. The 3.5–6 HP complete power coverage enables a single platform to adapt to diverse requirements from small commercial air conditioners to medium-sized chiller units.

Benefit: For equipment manufacturers, this series means one-stop supply for both R22 and R410A refrigerant solutions, reducing R&D costs and inventory complexity. For refrigeration contractors, the SB series adapts to existing R22 systems while the SBN series fits new R410A systems, providing flexible technology roadmap options. For end users, the high efficiency of R410A systems and the long-life design of scroll compressors ensure long-term operational economy and reliability.

IV. Application Scenario Quick-Selection Guide

Application Scenario	Recommended Model	HP	Refrigerant	Key Advantage
R22 Medium A/C	C-SB303H8A	4.0	R22	11.8kW, COP 3.23
R22 Commercial A/C	C-SB353H8A	4.5	R22	13.5kW, 77.4cc displacement
R22 Large A/C	C-SB453H8A	6.0	R22	17.7kW, 100.0cc displacement
R410A Small A/C	C-SBN303H8D	3.7	R410A	9.8kW, COP 2.68
R410A Medium A/C	C-SBN353H8D	4.5	R410A	52.5cc displacement
R410A Large A/C	C-SBN453H8H	6.0	R410A	16.4kW, 65dB noise

Selection Tip: For R22 systems, choose the C-SB series—4 HP: C-SB303; 4.5 HP: C-SB353; 6 HP: C-SB453. For R410A systems, choose the C-SBN series—3.7 HP: C-SBN303; 4.5 HP: C-SBN353; 5 HP: C-SBN373; 6 HP: C-SBN453

PACKING DELIVERING包装与交付

LOGISTICS SOLUTIONS物流解决方案 Logistics & Transportation Streamline Your Compressor Strategy

In today's diversified HVAC market, specifying the right compressor shouldn't mean managing multiple suppliers, incompatible component inventories, or conflicting R&D roadmaps. The Panasonic/Songyang C-SB/C-SBN dual-platform series consolidates R22 and R410A solutions into one unified product architecture—giving equipment manufacturers, contractors, and end users a single source of truth for 3.5–6 HP applications.

01 — Dual-Platform, Zero Complexity

The SB line (R22, mineral oil) services legacy system maintenance and cost-sensitive projects, while the SBN line (R410A, POE ester oil) tackles high-pressure new-build requirements with reinforced housings and precision end-face seals. One platform, two refrigerants, zero compromise on performance.

02 — Power Density That Scales

From 9.8 kW at 3.7 HP to 17.7 kW at 6 HP, the series spans seven distinct models across both refrigerant types. Whether you're designing a compact commercial unit or a mid-size industrial chiller, the displacement options (39.9–100.0 cm³) provide precise engineering headroom without over-specifying.

03 — Business Impact You Can Measure

For OEMs, consolidating on the C-SB/C-SBN family means fewer supplier audits, simplified spare parts logistics, and accelerated time-to-market. For contractors, it means carrying one compressor line that serves both retrofit and new-installation calls. For end users, it means lower total cost of ownership backed by scroll technology's proven longevity.

Ready to simplify your supply chain? Request the full C-SB/C-SBN technical catalog, cross-reference matrix, or a customized selection consultation from our sales team.
