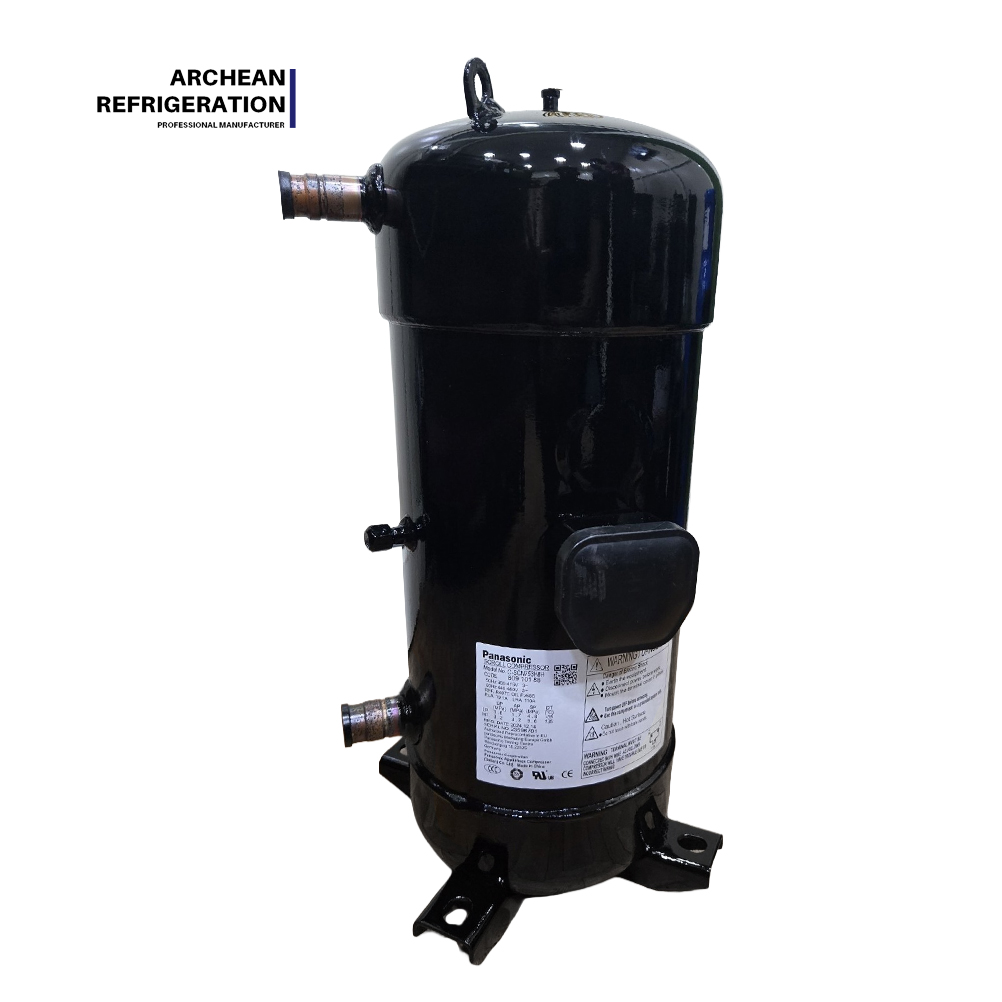

Panasonic C-SCN753H8H / H8K Scroll Compressor – 10HP R407C Fixed Frequency Refrigeration & Heat Exchange Parts

The C-SCN753H8H and C-SCN753H8K are two core 10HP-class models in the Panasonic C-SCN series. They share an identical basic performance platform, with the only differences lying in their starting methods and electrical configurations to meet the adaptation requirements of different system designs.

Both models share the following advantages:

1. High Efficiency & Energy Saving — With a COP of 3.20, it features an optimized scroll profile design and precise motor matching. For commercial systems operating 24/7, the annual electricity cost savings are significant.




2. Extreme Condition Tolerance — The high-side design pressure is 3.2 MPa, with a maximum discharge temperature tolerance of 135°C. It operates stably regardless of system reheat or harsh environments.




3. Quiet Operation — The three-phase induction motor produces minimal torque pulsation, with noise levels ≤74 dB, making it suitable for noise-sensitive commercial and residential environments.




4. Compact Installation Dimensions — With a height of 562mm and a diameter of 209mm, it delivers high power in a small footprint, easily integrating into equipment rooms with limited space.




5. Same Platform Reliability — Heavy-duty rolling bearings + a direct-off type built-in motor protector ensure a long service life even under frequent start-stop conditions.




• Commercial Air Conditioning Systems




• VRF/VRV Multi-Split Systems




• Air-Cooled Chiller Units




• Data Center Precision Air Conditioning




• Constant Temperature Systems




• Industrial Refrigeration
