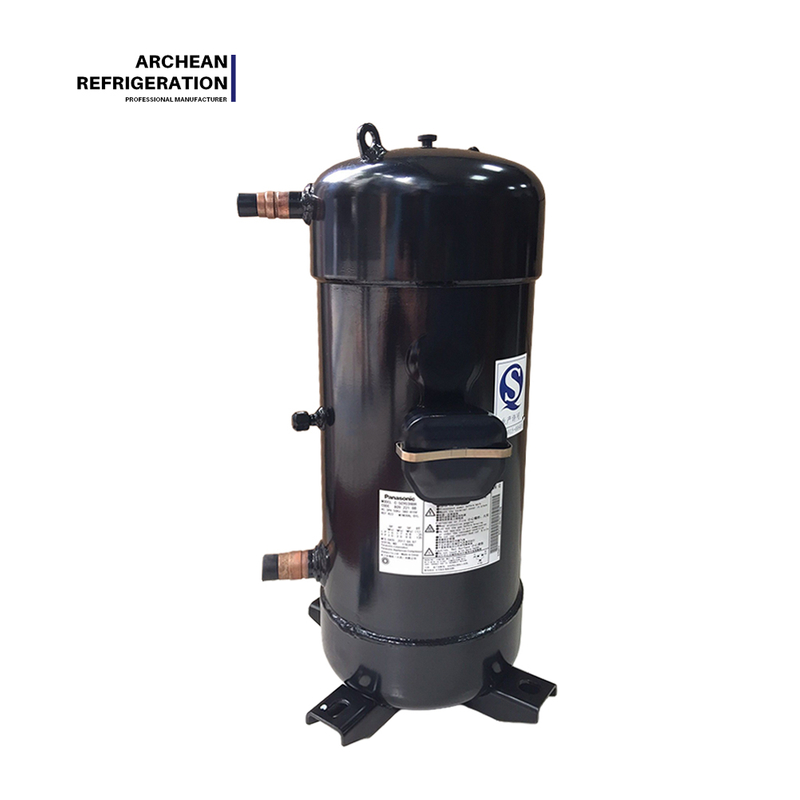

Sanyo Scroll Compressor C-SCP360H38A C-SCP360H38B C-SCP510H38B for Refrigeration & Heat Exchange Wholesale Manufacturers

Sanyo Scroll Compressor C-SCP360H38A C-SCP360H38B C-SCP510H38B for Refrigeration & Heat Exchange Wholesale Manufacturers

Name: Sanyo Scroll Compressor C-SCP360H38A C-SCP360H38B C-SCP510H38B for Refrigeration & Heat Exchange Wholesale Manufacturers
Brand: SANYO
Rating: 5.0 (5 reviews)

• Power: 11 HP (approx. 5.36 kW)
• Cooling Capacity: 35900 W
• Input Power: 11900 W
• Current: 17.4 A
• Refrigerant: R410A
• Power Supply: 3-phase, 440-460V / 60Hz
• Evaporation Temperature Range: -15 to 12 °C
• Noise Level: ≤ 74 dB(A)

Model:
C-SCP360H38A C-SCP360H38B C-SCP510H38B
Brand:
SANYO

Availability:

Quantity:



Inquire Add to Basket

Product Description

Technical Parameter Comparison

Parameter	C-SCP360H38A	C-SCP360H38B	C-SCP510H38B
Power	11 HP (approx. 5.36 kW)	11 HP (approx. 5.36 kW)	15 HP (approx. 12.9 kW)
Cooling Capacity	35900W	35900W	-
Input Power	11900W	11900W	-
Current	17.4A	17.4A	-
Refrigerant	R410A	R410A	R410A
Power Supply	3-phase, 380-415V/50Hz 440-460V/60Hz	3-phase, 380-415V/50Hz 440-460V/60Hz	3-phase, 380-415V/50Hz 440-460V/60Hz
Evaporation Temp. Range	-15~12°C	-15~12°C	-15~12°C
Weight	40kg	40kg	39kg
Noise Level	≤74dB(A)	≤74dB(A)	≤74dB(A)
Energy Efficiency Ratio	-	-	3.15W/W

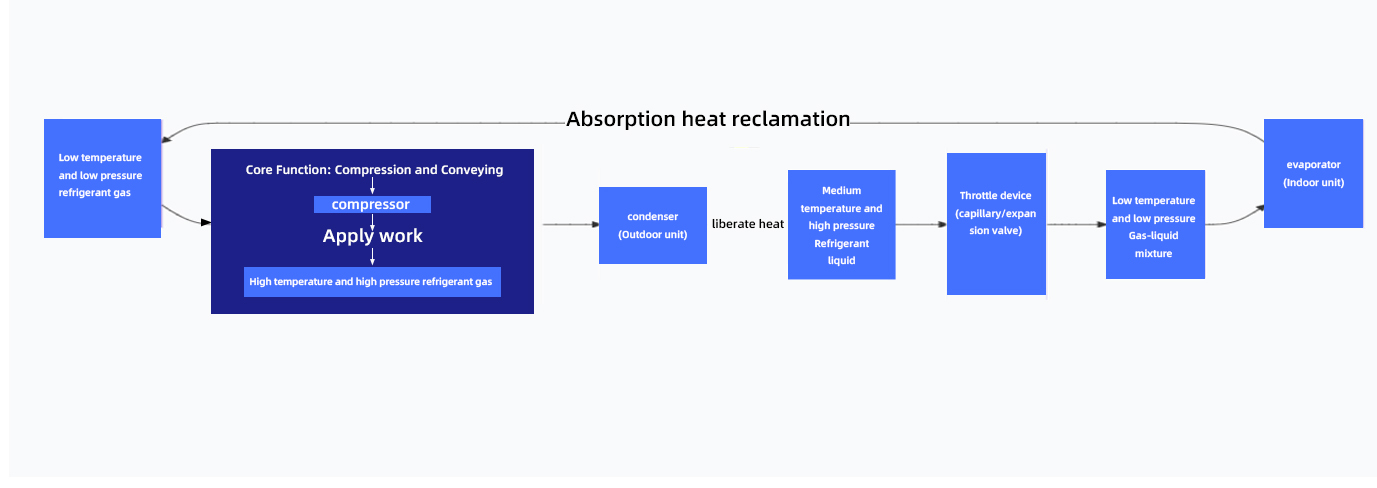

Working Principle

The working principle of the scroll compressor is based on two identically shaped involute scrolls that are angularly offset by 180°. One is a fixed scroll, and the other is an orbiting scroll driven by an eccentric shaft, with its axis revolving around the axis of the fixed scroll. During operation, the two scrolls contact at multiple points to form sealing lines, creating crescent-shaped gas pockets. As the orbiting scroll revolves, the shape and size of these crescent-shaped pockets continuously change. The gas moves from the periphery towards the center, its volume continuously decreases, pressure increases, and it is finally discharged through the central exhaust port.

Application Fields

Central Air Conditioning Systems: Split systems, rooftop units, package units
Heat Pump Systems: Air-source heat pumps, water-source heat pumps
Industrial Refrigeration: Medium/high temperature chiller units, process cooling equipment
Commercial Refrigeration/Freezing: Display cabinets, cold storage, kitchen equipment
Other Fields: Marine refrigeration equipment, large low-temperature processing rooms, integrated logistics centers

Installation Notes

Power Requirements: Voltage deviation between phases should be within 2% of the rated voltage. Reverse rotation is strictly prohibited.
Refrigerant Charging: The system must be evacuated before use. Do not energize the compressor under a vacuum.
Handling Requirements: Avoid tilting, dropping, and severe vibration during handling.
Wiring Requirements: Terminal connections must be kept dry; use dedicated wiring terminals.
Operating Environment: Maximum ambient temperature should not exceed 43°C; maximum crankcase oil temperature should not exceed 80°C.

Comparative Advantages

Performance Advantage: Under the same operating conditions, the cooling coefficient of a scroll compressor is 8.4% higher than that of a twin-rotary compressor. Scroll compressors demonstrate better energy efficiency at high speeds, making them particularly suitable for high-power applications.
Operating Characteristic: Scroll compressors have a long compression process, with a small pressure difference between adjacent compression chambers and low gas leakage, resulting in higher volumetric efficiency. Rotary compressors are more efficient at low loads, but suffer from greater vibration at high capacities.
Reliability: Scroll compressors feature a fully enclosed structure with an integrated motor and compressor design, ensuring more stable operation. Rotary compressors are affected by exhaust valves, have a smaller operating pressure range, and are less adaptable to changes in external temperature.
