"R32 Dedicated · Safe and Efficient — A Pioneer in the Era of Eco-Friendly Refrigerants"
The Panasonic SCX295/320 series consists of high-back-pressure scroll compressors specifically designed for the eco-friendly R32 refrigerant. As a new-generation, low-GWP refrigerant, R32 offers significant environmental advantages — but its high-pressure characteristics impose higher demands on the compressor.
The SCX series features triple reinforcement to address this: enhanced shell pressure resistance, upgraded bearing load capacity, and a reserved port for a built-in discharge temperature sensor. Combined with external liquid injection cooling, it ensures the discharge temperature stays below 115°C even under extreme operating conditions, effectively preventing lubricant carbonization. The numbers 295 and 320 represent the 29.5kW/32.0kW cooling capacity class — making them a reliable choice for R32 eco-friendly water chillers and large-scale commercial air conditioning systems.

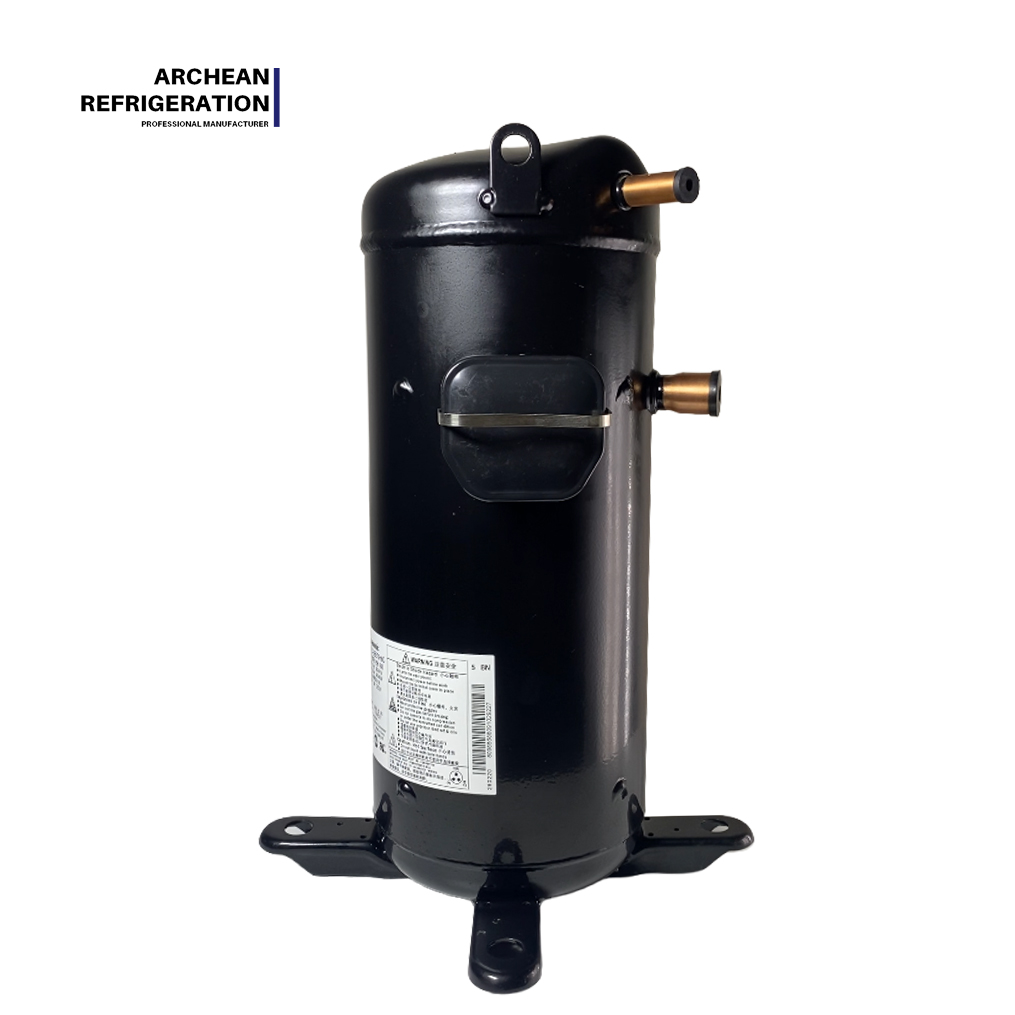

Included Models: C-SCX295H38B, C-SCX320H38B
-
Product Positioning: R32 eco-friendly refrigerant commercial/industrial water chillers.
-
Technical Features:
-
Specifically designed for R32 high-pressure characteristics, with increased shell wall thickness and enhanced bearing load capacity.
-
Reserved port for a built-in discharge temperature sensor, combined with external liquid injection cooling.
-
Ensures discharge temperature stays below 115°C even under high compression ratios, preventing lubricant carbonization.
-
The numbers 295/320 represent the nominal cooling capacity (×100W), i.e., the 29.5kW/32.0kW class.
-
Suitable Applications: R32 eco-friendly refrigerant water chillers, large-scale commercial air conditioning.
