Sanyo C-SB303H8A, C-SB303H8G, C-SB353H8A, C-SB353H8G, C-SB453H8A, C-SB453H8F, C-SB453H8G Compressor for Refrigeration & Heat Exchange Parts

Sanyo C-SB303H8A, C-SB303H8G, C-SB353H8A, C-SB353H8G, C-SB453H8A, C-SB453H8F, C-SB453H8G Compressor for Refrigeration & Heat Exchange Parts

Name: Sanyo C-SB303H8A, C-SB303H8G, C-SB353H8A, C-SB353H8G, C-SB453H8A, C-SB453H8F, C-SB453H8G Compressor for Refrigeration & Heat Exchange Parts
Brand: SANYO
Rating: 5.0 (51 reviews)

Utilizing advanced continuous compression technology, it features minimal internal leakage, and its volumetric efficiency far exceeds industry standards. This means — compared to traditional compressors, energy consumption is significantly reduced, long-term electricity costs are greatly decreased, and the return on investment (ROI) cycle is shorter.

Model:
C-SB303H8A, C-SB303H8G, C-SB353H8A, C-SB353H8G, C-SB453H8A, C-SB453H8F, C-SB453H8G
Brand:
SANYO

Availability:

Quantity:



Inquire Add to Basket

Product Description

Classic R22 Platform: Highly mature technology with high universality of spare parts, making it the most economical and direct replacement solution for a large number of existing R22 systems. Compressor replacement can be completed without modifying piping and electrical configurations, significantly reducing maintenance and retrofit costs.
Hermetic Scroll Structure: Featuring few moving parts, an extremely low failure rate, and a long service life. The C-SB453H8A offers a displacement of 100 cm³/rev, a cooling capacity of 17.7 kW at 50Hz with a COP of 3.26, and 21.5 kW at 60Hz.
Dedicated Parallel Models: Models with the "G" suffix (C-SB303H8G, C-SB353H8G, C-SB453H8G) are dedicated parallel models that support multi-compressor parallel operation, facilitating flexible system capacity expansion.
Three-Phase Power Supply: The entire series is adapted to 3-phase 380-415V/50Hz and 440-460V/60Hz.

Included Models:

C-SB303H8A, C-SB303H8G, C-SB353H8A, C-SB353H8G, C-SB453H8A, C-SB453H8F, C-SB453H8G

Suitable Applications:

Commercial split air conditioners / Air-cooled/Water-cooled units / Heat pump water heaters / Freezing and refrigeration equipment / Drying and heat exchange equipment / Marine freezing and refrigeration

Typical Terminal Equipment: Commercial split air conditioners, air-cooled/water-cooled units, heat pump water heaters, frozen/refrigerated display cases, fresh-keeping storage.

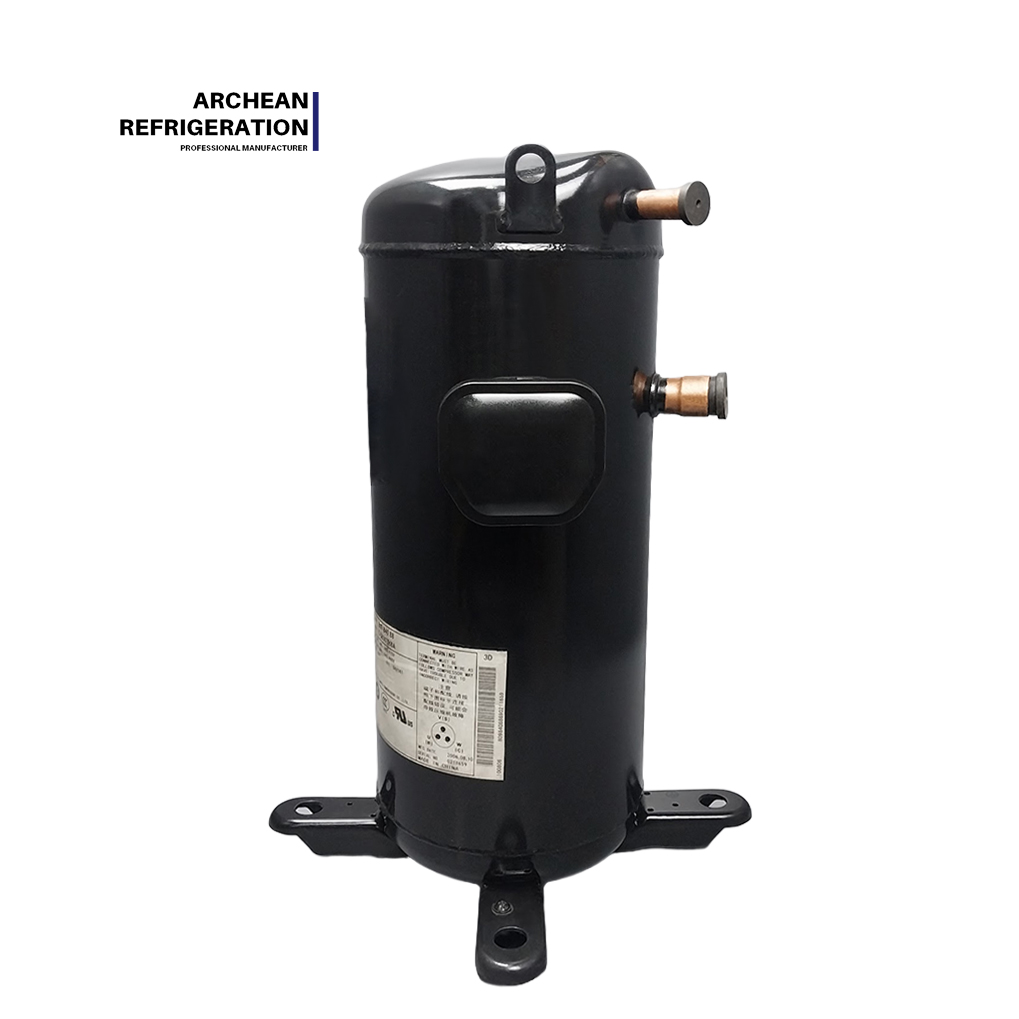

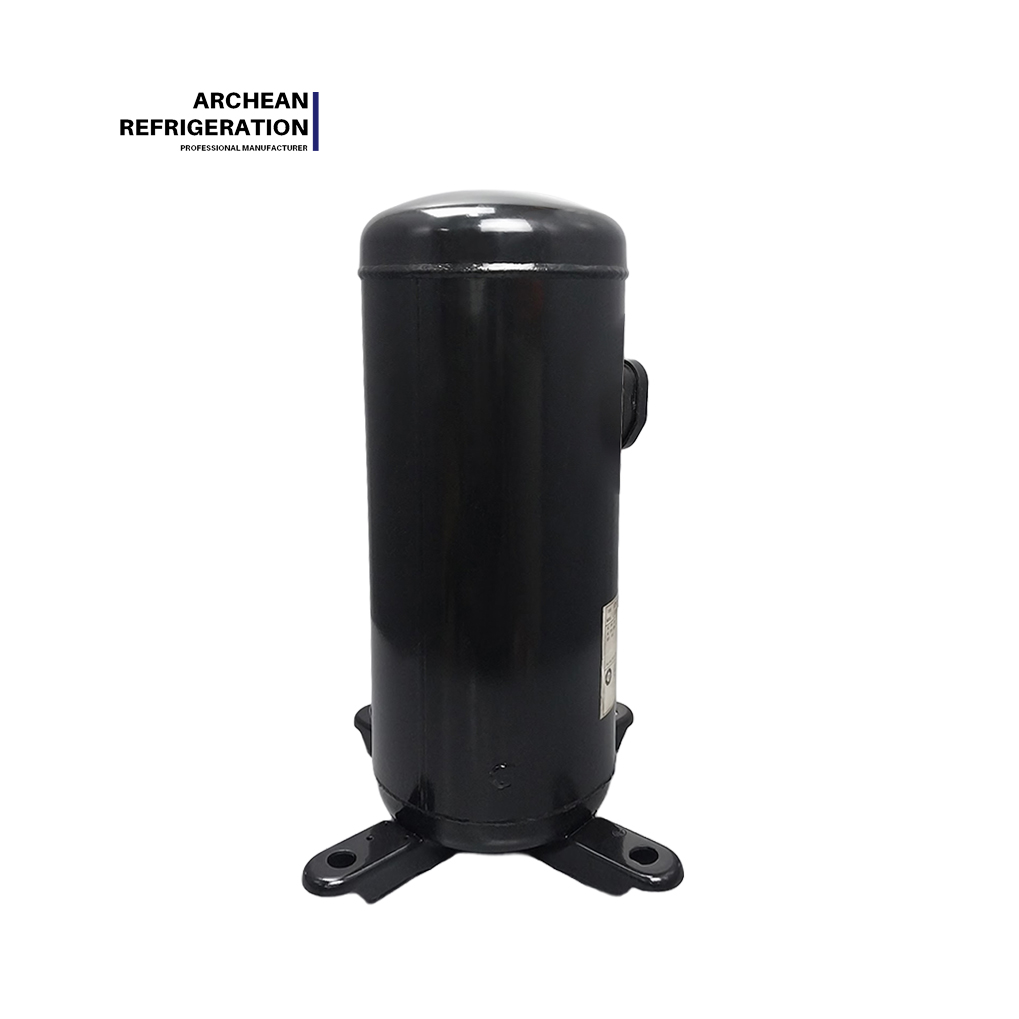

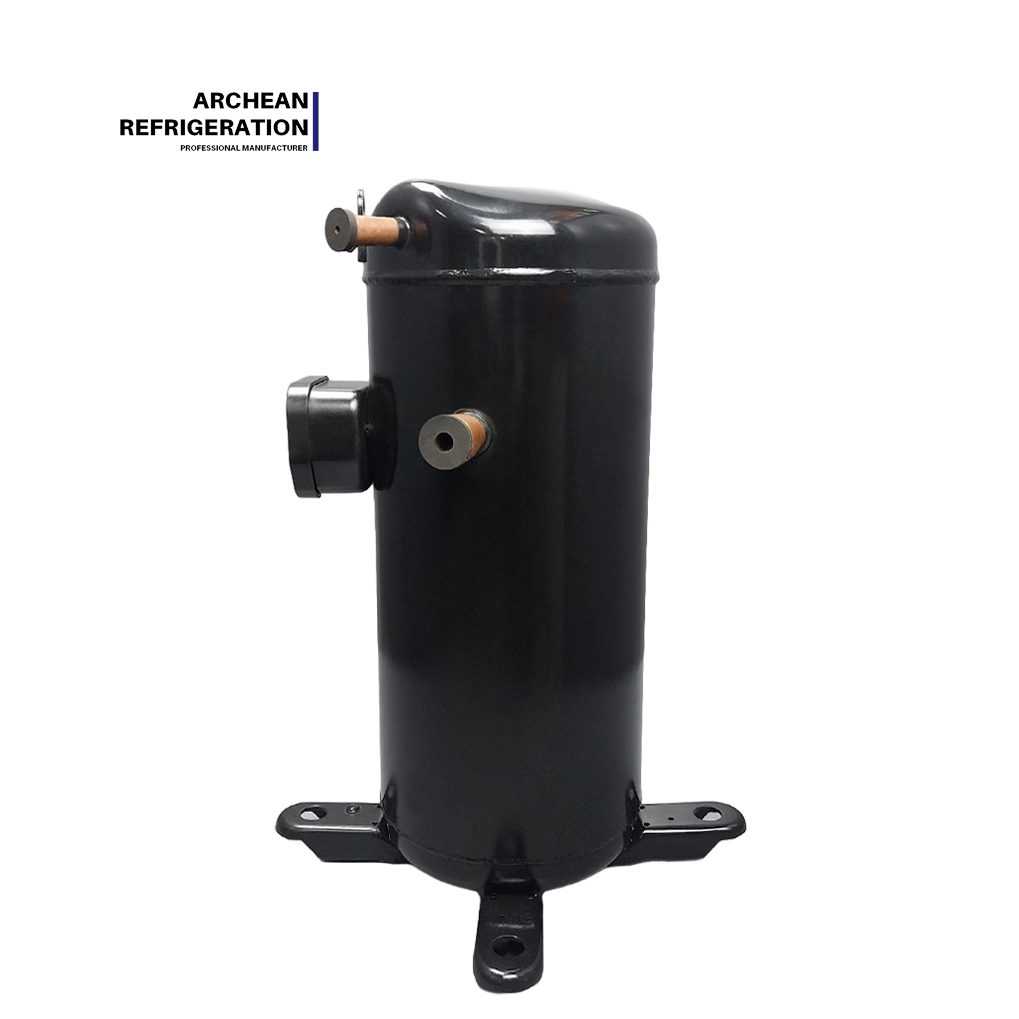

PRODUCT PICTURES产品图片

more models PLS CONTACT更多型号，请联系客户服务。

Comprehensive Data Sheet of C-SB Series Scroll Compressors

Parameter	C-SB303H8A	C-SB303H8G	C-SB353H8A	C-SB353H8G	C-SB453H8A	C-SB453H8F	C-SB453H8G
Brand	SANYO/Panasonic	SANYO/Panasonic	SANYO/Panasonic	SANYO/Panasonic	SANYO/Panasonic	SANYO/Panasonic	SANYO/Panasonic
Type	Hermetic Scroll	Hermetic Scroll	Hermetic Scroll	Hermetic Scroll	Hermetic Scroll	Hermetic Scroll	Hermetic Scroll
Refrigerant	R22	R22	R22	R22	R22	R22	R22
Horsepower (HP)	4HP	4HP	4.6HP	4.6HP	6HP	6HP	6HP
Displacement	66.8 cm³/rev	66.8 cm³/rev	77 cm³/rev	77 cm³/rev	100 cm³/rev	100 cm³/rev	100 cm³/rev
Power Supply	3-Phase, 380-415V/50Hz; 440-460V/60Hz	3-Phase, 380-415V/50Hz; 440-460V/60Hz	3-Phase, 380-415V/50Hz; 440-460V/60Hz	3-Phase, 380-415V/50Hz; 440-460V/60Hz	3-Phase, 380-415V/50Hz	3-Phase, 380-415V/50Hz; 440-460V/60Hz	3-Phase, 380-415V/50Hz; 440-460V/60Hz
Cooling Capacity (50Hz)	11.8 kW	11.8 kW	13.5 kW	13.5 kW	17.7 kW	17.7 kW	17.7 kW
COP (50Hz)	3.23 W/W	3.23 W/W	3.18 W/W	3.18 W/W	3.26 W/W	3.26 W/W	3.26 W/W
Cooling Capacity (60Hz)	14.4 kW	14.4 kW	16.7 kW	16.7 kW	21.5 kW	21.5 kW	21.5 kW
COP (60Hz)	3.27 W/W	3.27 W/W	3.28 W/W	3.28 W/W	3.24 W/W	3.24 W/W	3.24 W/W
Parallel Support	—	✓	—	✓	—	—	✓
Compressor Code	80984088	80984688	—	80984788	80986088	—	—
