Scroll Compressor Working Principle

Introduction

Scroll compressors are among the most popular core components in modern refrigeration and HVAC systems. Thanks to their compact structure, low noise, high efficiency, and reliable performance, they are widely used in commercial cold storage, air conditioning, and industrial refrigeration fields.

Whether you are a buyer, engineer, or equipment installer, understanding how a scroll compressor works will help you make better product selections, assess equipment conditions, and reduce maintenance costs. This article explains its structure, complete working cycle, key benefits, and typical application scenarios.

Core Structure of a Scroll Compressor

Unlike piston compressors, scroll compressors have fewer wearing parts. The key compression components are two inter-meshing scroll wraps:

1. Fixed Scroll:​ Remains stationary and is secured inside the compressor housing, featuring specially designed involute spiral grooves.

2. Orbiting Scroll:​ Moves in an orbital motion without rotating on its own axis. It meshes tightly with the fixed scroll, forming several sealed compression chambers.

Other major components include the crankshaft, anti-rotation ring, drive motor, suction port, and discharge port. Fewer friction parts mean a lower failure rate during long-term operation.

How a Scroll Compressor Works

The entire working cycle runs continuously through four phases: Suction → Compression → Sealing → Discharge.

1. Suction

When the compressor is powered on, the orbiting scroll moves eccentrically along the fixed scroll. The outer spiral cavity opens, allowing low-temperature, low-pressure refrigerant gas to flow into the chambers through the suction port.

2. Compression

As the orbiting scroll continues its motion, the sealed chambers move from the outer edge toward the center of the scroll wraps. The internal space gradually decreases, squeezing and compressing the refrigerant gas into high-temperature, high-pressure gas.

3. Sealing

Multiple compression chambers operate simultaneously. The scroll teeth maintain close contact to prevent gas leakage. Continuous compression eliminates significant pressure fluctuations, which is why scroll compressors run much more smoothly than piston-type compressors.

4. Discharge

After compression, the high-pressure refrigerant gas gathers in the central chamber. Once the pressure reaches the standard value, the gas flows out through the central discharge port and enters the condenser. A complete refrigeration cycle is thus finished.

Related Products

HITACHI Vortex Refrigeration Compressor G603DH-90D1, G403DH-64D1(2), G453DH-72D1(2), G303DH-47D1(2), G303DH-50D1(2), G353DH-56D1(2), G503DH-80D1(2), G503DH-83D1(2) Heat Exchange Part

Core Advantages: Enhanced Performance: Certain models are specifically optimized for heat pump systems, capable of delivering outlet water temperatures above 60°C. With a compression ratio of up to 14.3, they ensure stable operation and provide high-temperature hot water even under low ambient temperature conditions. Technical Features: Strong Adaptability: For instance, the G603DH-90D1(2) model utilizes the environmentally friendly refrigerant R407C and can operate reliably in ambient temperatures as high as 43°C. Performance Optimization: Employs advanced technologies such as "Axial Flexibility" to ensure efficient sealing of the scroll plates and improve volumetric efficiency. The "Release valve" technology prevents over-compression and enhances mid-range performance. Typical Applications: Beyond central air conditioning, it places greater emphasis on fields with higher demands for performance and reliability, such as heat pump air conditioning and industrial refrigeration.

Inquire

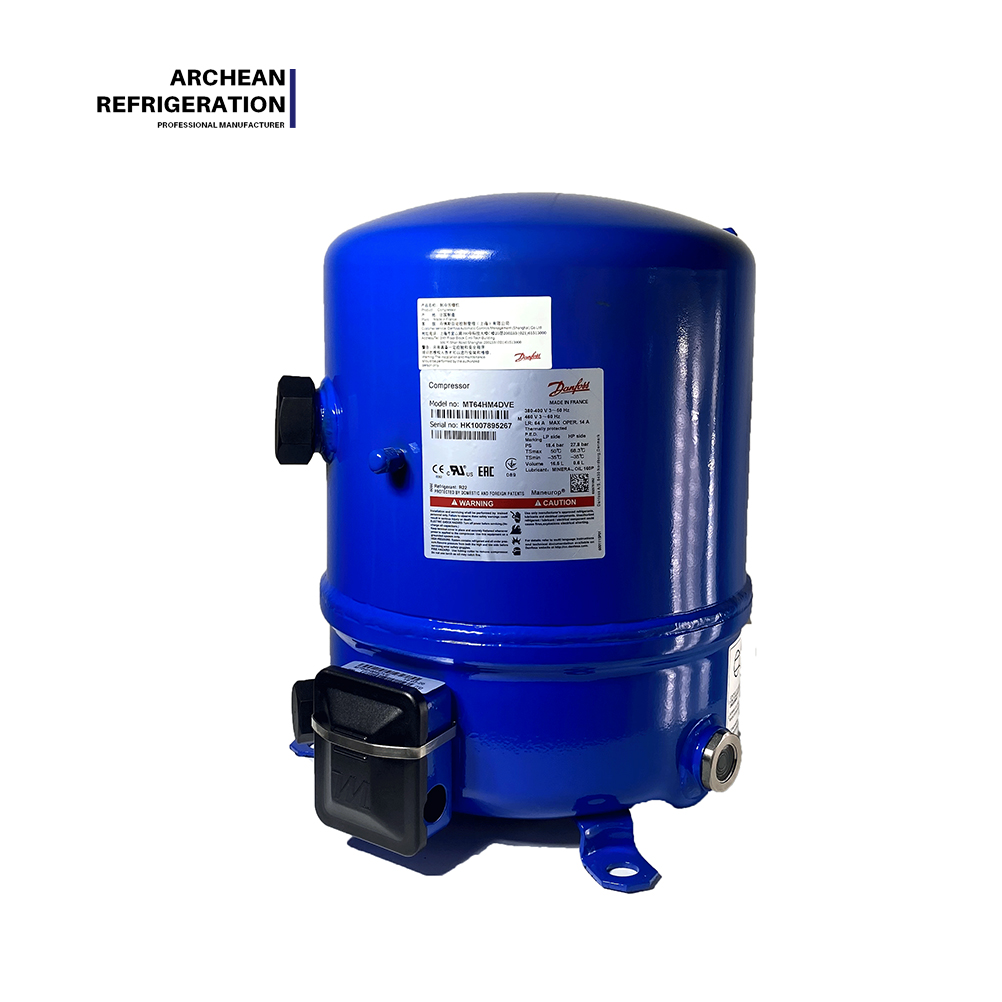

DANFOSS Rated Performance*High Efficiency CompressorR22-50HZ MT 45 HJ / MT 51 HK/ MT 57 HL / MT 65 HM / MT 73 HN / MT 81 HP

Danfoss Maneurop® MT Series: R22-dedicated fully hermetic reciprocating compressors (4–7 HP). COP up to 3.07, 10.8–20.3kW capacity. Factory-charged mineral oil for plug-and-play, liquid-slug resistant. The economical & reliable choice for cold storage, food retail & industrial refrigeration.

Inquire

refrigeration compressor ZR108KC-TFD-522 ZR144KC-TFD-522 ZR160KC-TFD-522 ZR190KC-TFD-522 Refrigerated Compressor

Copeland's ZR series delivers hermetic compliant scroll compression engineered specifically for medium-to-high-temperature air conditioning and industrial refrigeration. It stands as the core driving force behind large commercial HVAC, industrial cooling, and precision air conditioning systems.

Inquire

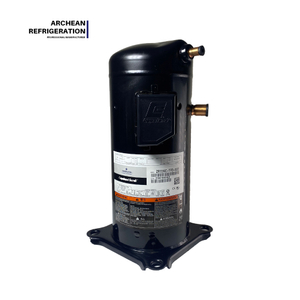

Factory Direct Sales Copeland ZR61KC-TFD ZR61KCE-TFD-522 ZR68KC-TFD ZR72KCE-TFD ZR81KC-TFD compressor

The ZR61KC-TFD compressor is a high-performance scroll compressor suitable for various refrigeration and air conditioning applications. Low oil circulation rate and resistance to liquid impact: It has a low oil circulation rate and superior resistance to liquid impact, ensuring stable operation under various working conditions

Inquire

Key Advantages of the Scroll Working Structure

• Stable Performance:​ Continuous compression without impact, delivering consistent cooling capacity.

• Low Noise & Low Vibration:​ No reciprocating piston movement, enabling quiet operation—ideal for commercial environments.

• High Energy Efficiency:​ Minimal internal gas leakage and higher volumetric efficiency help reduce power consumption.

• Long Service Life:​ Fewer vulnerable parts and low mechanical wear result in less after-sales maintenance.

Common Application Areas

Refrigeration scroll compressors serve a wide range of industries:

• Commercial Refrigeration:​ Cold storage rooms, freezers, refrigerated display cases

• HVAC & Central Air-Conditioning Units

• Industrial Constant-Temperature Refrigeration Equipment

• Truck Refrigeration & Specialized Cooling Systems

By Brand

• Copeland:​ An industry mainstream brand. The ZR/ZB/ZFI series cover air conditioning and medium-to-low temperature cold storage applications.

• Danfoss:​ The MLZ/LLZ series are well-established models for commercial refrigeration and low-temperature freezing.

• Hitachi:​ Primarily used in central air conditioning and heat pump units.

• Panasonic:​ Small-sized scroll compressors for air conditioners and heat pumps.

Conclusion

The core operating principle of a scroll compressor relies on the orbital meshing motion between the fixed scroll and the orbiting scroll. With its continuous compression capability, the scroll compressor has become a reliable and high-efficiency solution for most cooling projects. Understanding how it works will help you select the right compressor for your refrigeration needs.

If you need any compressor models or technical support, feel free to contact our sales team.
