1. Dual-Flexible Scroll Design: The Foundation of Reliability
Core Mechanism: Unlike rigidly designed scroll compressors, Copeland's "Flexible" technology allows the scrolls to separate slightly and adaptively in both the radial and axial directions. Axial flexibility is achieved through a unique floating seal structure, while radial flexibility is accomplished via minimal deformation of the scrolls, made from special materials, in specific directions.
Core Advantages:
Perfect Sealing: Under normal operating conditions, this flexible force ensures the scrolls fit tightly together, forming continuous, leak-free compression chambers, achieving nearly 100% volumetric efficiency, which is the direct source of high energy efficiency.
Tolerates Abnormal Conditions: When the system experiences liquid slugging (liquid refrigerant floodback) or ingests fine impurities, the flexible design allows the scrolls to separate instantaneously and briefly, providing a passage for the liquid or debris, avoiding the "hard clash" that could lead to scroll teeth breakage or motor seizure. This is equivalent to building an intelligent, millisecond-response "safety valve" into the compressor.
2. Exceptional Liquid and Debris Tolerance: The System's "Guardian"
Traditional compressors can suffer severe component damage from the tremendous impact force when encountering liquid slugging due to the incompressible nature of the liquid. The flexible design of the ZR series enables it to smoothly "pass" rather than "resist" abnormal liquids and solid particles. This significantly reduces compressor failure rates caused by improper system commissioning, expansion valve malfunctions, defrost refrigerant floodback, or pipeline contamination, enhancing the robustness of the entire refrigeration system under complex and variable operating conditions. 3. Stable Performance That Increases with Running Time: "Smoother" with Use Scroll compressors exhibit the opposite characteristic. After an initial run-in period, the fit between the scrolls reaches an optimal matching state through minimal, uniform wear, making the sealing lines more perfect. Therefore, throughout its long service life, it can not only maintain extremely high volumetric efficiency and cooling/heating capacity without degradation, but may even show slight improvement. This means the equipment's energy efficiency performance remains consistent over its entire service life, resulting in lower long-term operating costs.
4. Inherently Quiet and Smooth Operation: Low Vibration by Design
The motion of a scroll compressor is a continuous circular movement. The suction, compression, and discharge processes occur simultaneously, smoothly, and continuously within multiple chambers, with almost no mass imbalance forces. This is fundamentally different from the intense periodic vibrations and gas pulsations caused by the reciprocating motion of piston compressors. The direct advantages are:
Exceptionally Low Noise and Vibration: Reduces equipment noise and also lowers vibrational stress on the system piping, extending the lifespan of pipes and valve components.
No Need for Complex Vibration Damping Foundations: Often, only simple rubber mounts are required for installation, simplifying installation work.
5. High-Precision Manufacturing and Long Service Life: Design Redundancy and Process Assurance
The scrolls are machined by high-precision CNC machine tools, ensuring profile accuracy. Compared to piston compressors (which contain dozens of major moving parts like pistons, connecting rods, crankshafts, and valves), a scroll compressor's core moving parts consist of only two scrolls and a main shaft. Fewer parts mean fewer potential points of failure. This simplified structural design fundamentally provides the product with higher inherent reliability, a longer service life (typically designed for over 10 years), and lower maintenance requirements.

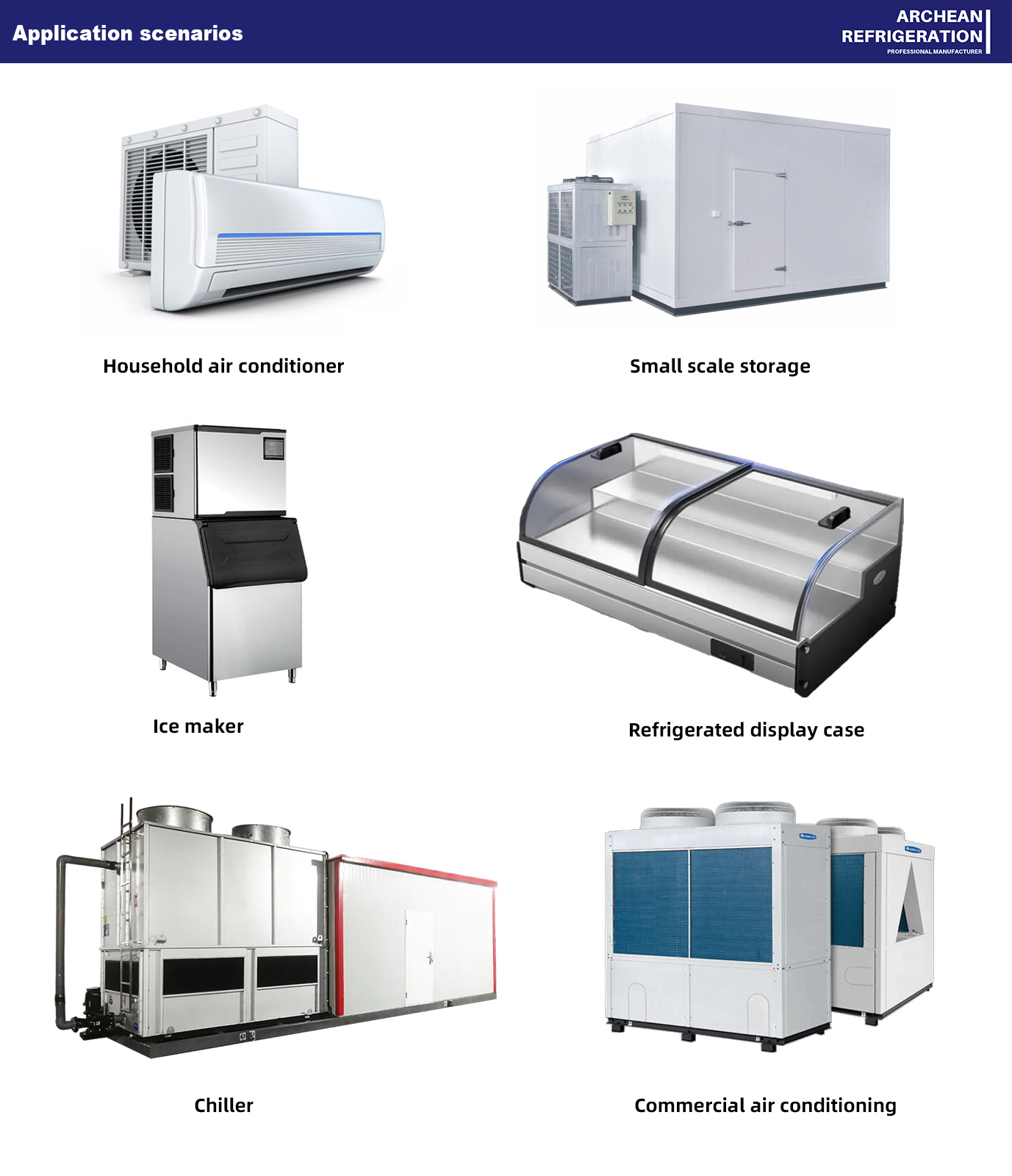

Applicable scenarios
The compressor, with its 2.3HP power and 6900W cooling capacity, is particularly well-suited for small to medium-sized commercial and industrial refrigeration applications. Its flexible scroll technology delivers high reliability, low noise, and excellent resistance to liquid slugging, ensuring outstanding performance even under complex operating conditions.
Frequently Asked Questions

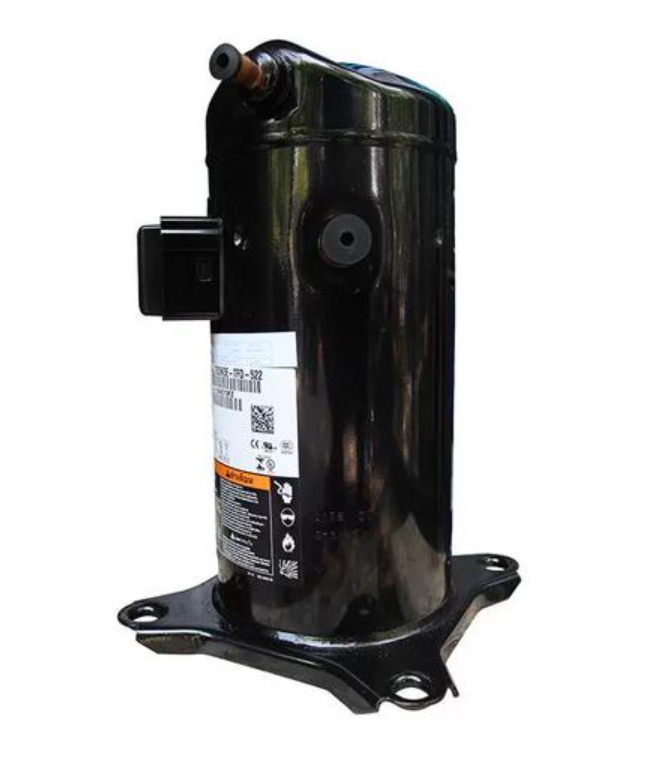

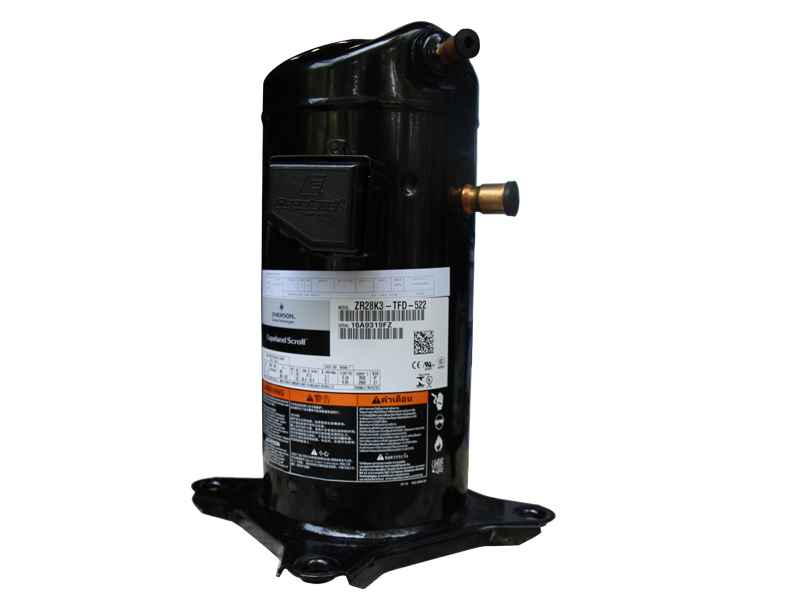

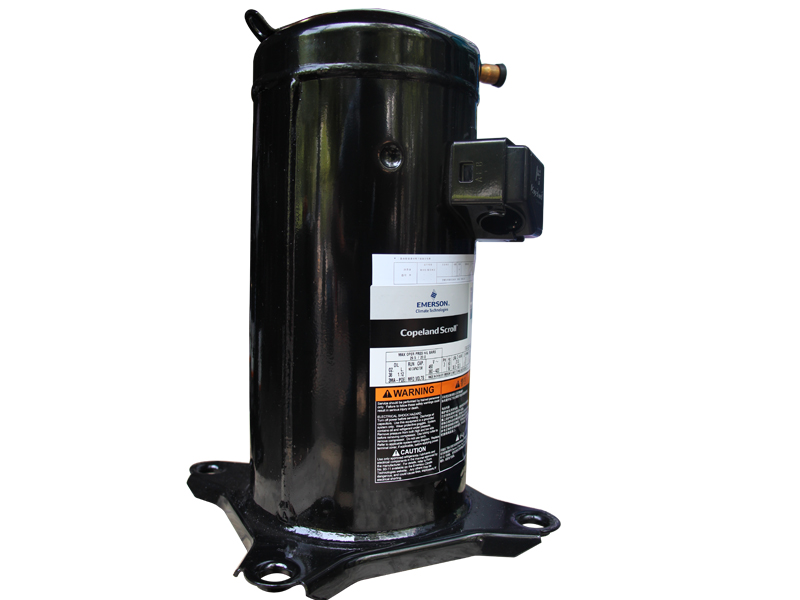

How does the energy efficiency ratio of ZR28K3E-TFD-522 compressor perform in small and medium-sized cold storage?.
The ZR28K3E-TFD-522 compressor demonstrates excellent energy efficiency ratio (EER) performance in small to medium-sized cold storage applications. This compressor utilizes Copeland's flexible scroll technology, with a cooling capacity of 6900W and an input power of 2150W. According to the energy efficiency ratio calculation formula (COP = cooling capacity / input power), its energy efficiency ratio is approximately 3.21.
Performance Advantages in Energy Efficiency:
Exceptional Energy Efficiency Ratio: Compared to piston compressors on the market, its energy efficiency ratio is about 12% higher, meaning energy consumption is significantly reduced under the same cooling capacity.
Excellent Seasonal Energy Efficiency Ratio: When configured in dual or triple parallel setups, as verified or confirmed by Copeland, it provides an outstanding seasonal energy efficiency ratio, making it particularly suitable for variable operating conditions in cold storage.
Low Energy Consumption Operation: The lower LCCP (Life Cycle Climate Performance) indicator means lower total lifecycle energy consumption from production to use, aligning with energy-saving and emission-reduction requirements.
High Volumetric Efficiency: Nearly 100% volumetric efficiency delivers exceptional cooling capacity, enabling rapid temperature reduction and stable temperature maintenance in small to medium-sized cold storage applications. This reduces compressor start-stop frequency, further lowering energy consumption.
With its 2.3HP power and 6900W cooling capacity, this compressor is particularly well-suited for the refrigeration needs of small to medium-sized cold storage (below 50 cubic meters). It operates efficiently across an evaporation temperature range of -30°C to 0°C.
Summary:
The Copeland flexible scroll technology, represented by the ZR28K3E-TFD-522, is not merely a combination of individual functionalities but a systematic solution built upon the foundation of its "dual-flexible design." This solution synergistically achieves high efficiency, high reliability, strong tolerance, long service life, and low noise. Selecting this compressor is not just about choosing a component—it is about establishing a stable and reliable cornerstone for the entire refrigeration system.
