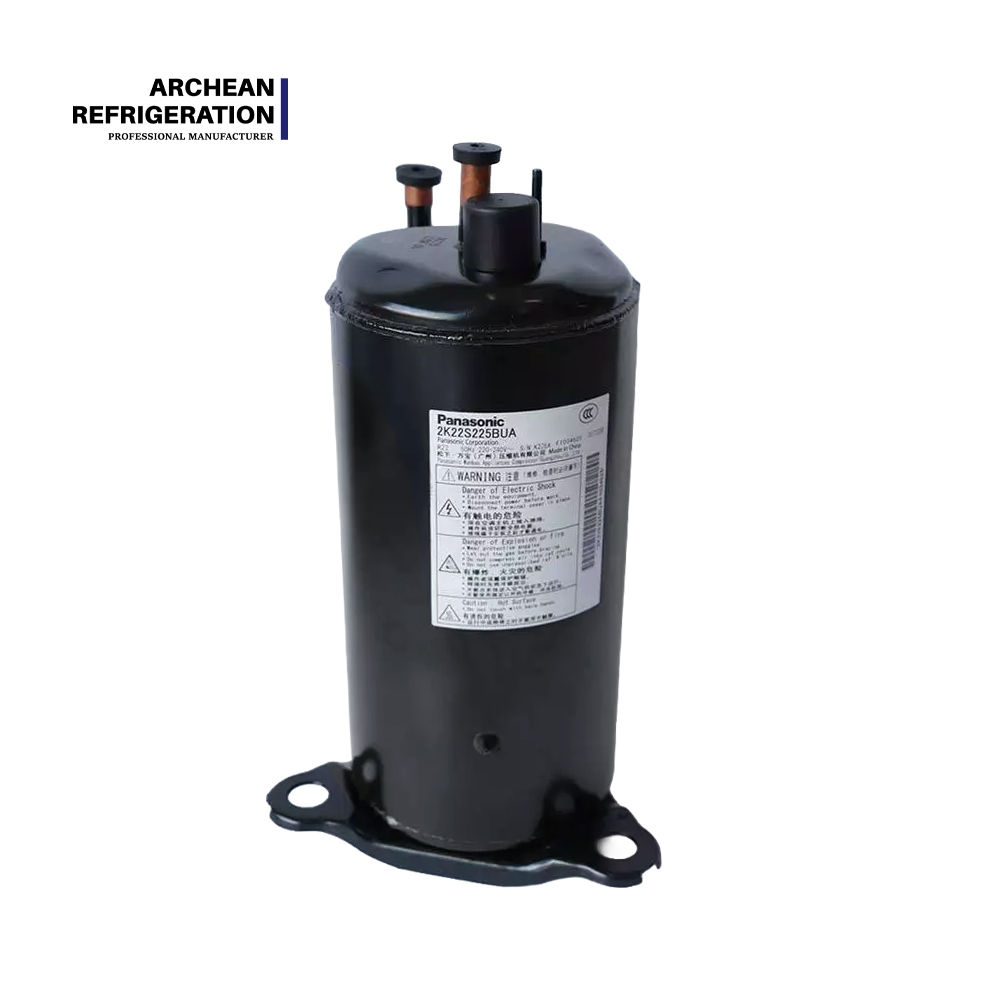

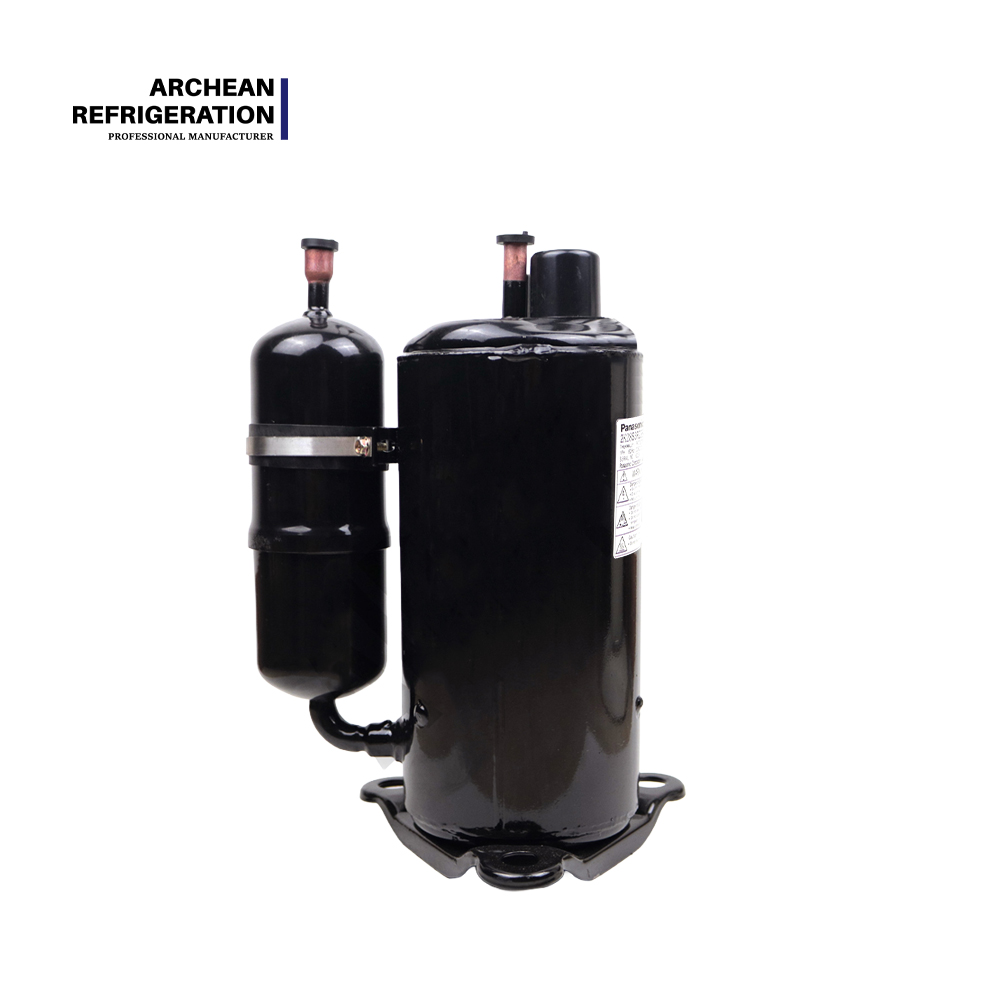

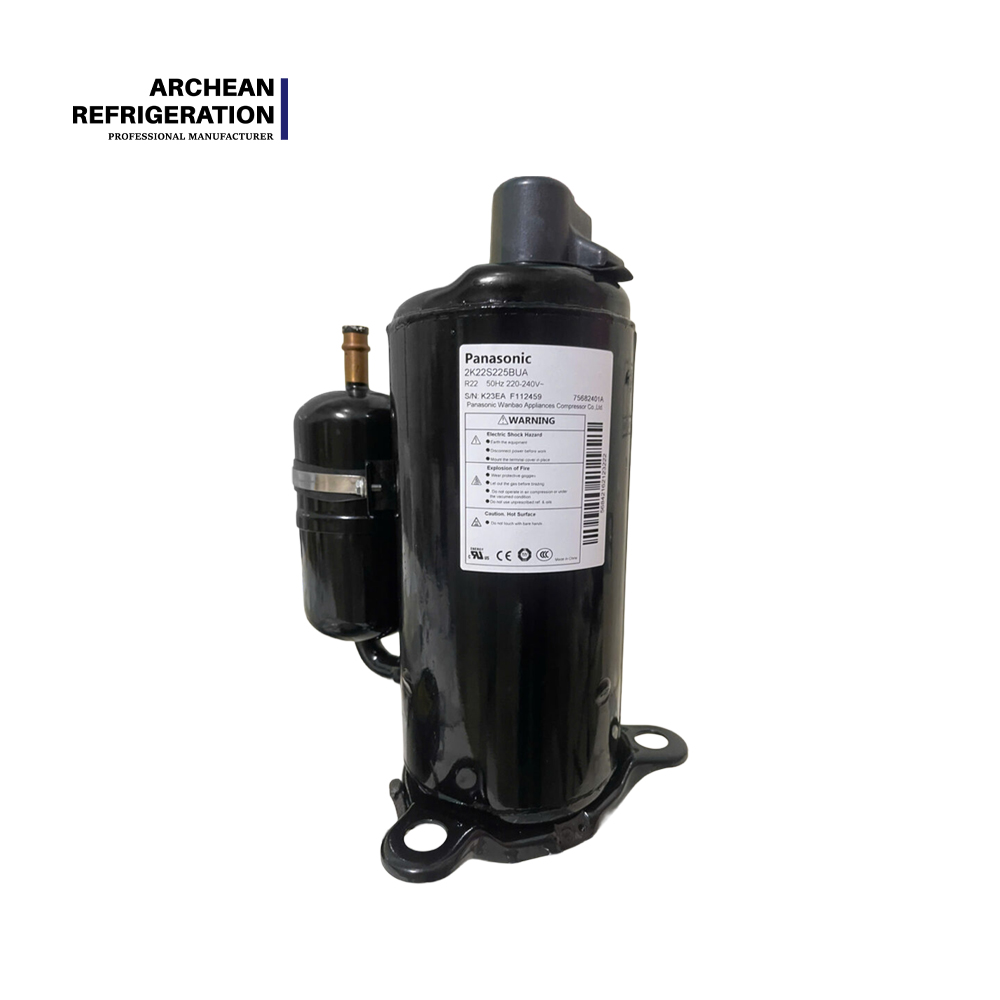

Hot Selling Panasoni C Hermetic Compressor 2P20S225BNG 2K22S225BUA 2K23S225BUA for Refrigeration & Heat Exchange

Through precision cylinder coordination and bearing design, mechanical energy loss caused by friction is minimized, thereby maintaining excellent mechanical stability during prolonged operation and reducing the failure rate. Its characteristics of simple structure and fewer failure points enable it to maintain long-term stable operation even under frequent start-stop working conditions.

The single-phase model operates within a voltage range of 180-240V, while the three-phase model covers 340-440V. This wide voltage design allows it to adapt to areas with significant power grid fluctuations, ensuring reliable cooling output even in unstable voltage environments.

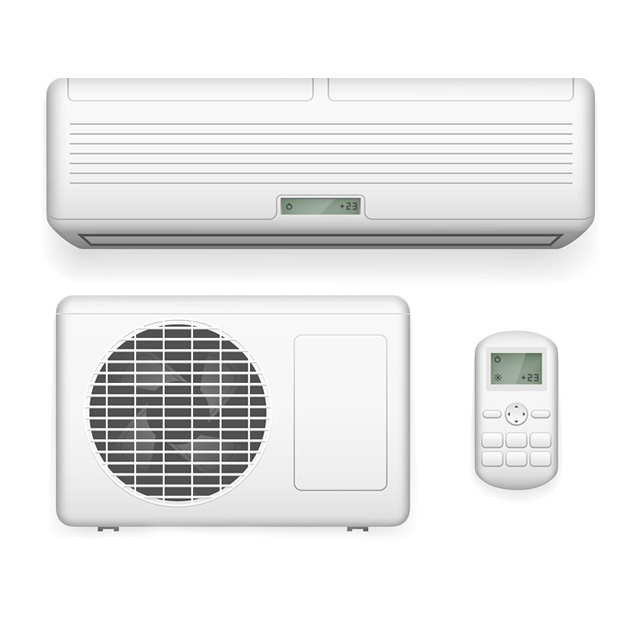

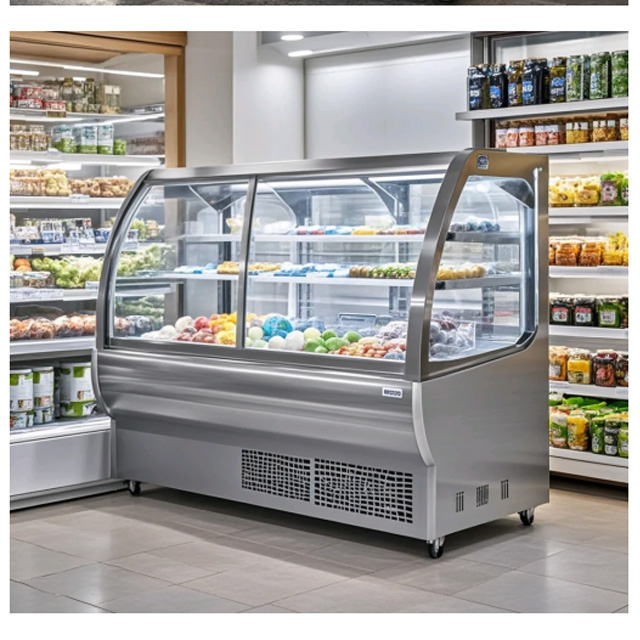

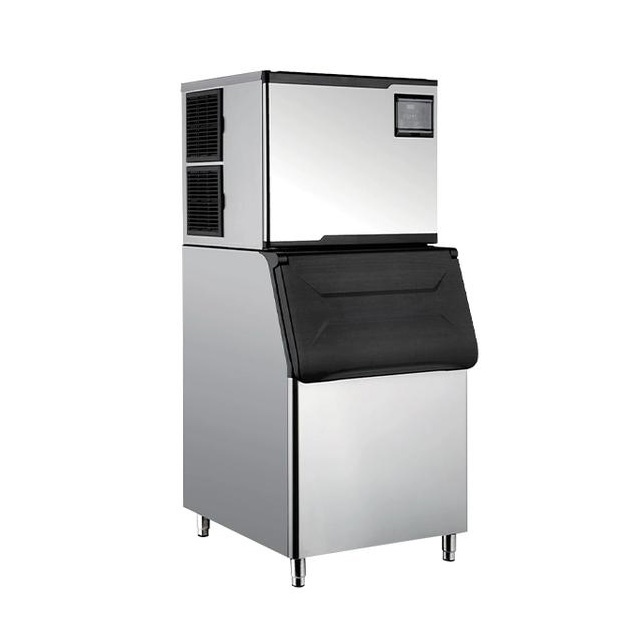

The Panasonic R22 fixed-frequency compressor series (models: 2P20S225BNG, 2K22S225BUA, 2K23S225BUA) is widely used in residential split air conditioners, cabinet air conditioners, commercial freezers, and light commercial refrigeration equipment. In scenarios requiring economical, reliable, and durable cooling solutions—such as restaurants, shops, small factories, and family residences—this compressor series has become the preferred power source in the maintenance and replacement market, thanks to its mature technology and stable performance.

1.


   Check the power supply: Verify if the single-phase voltage is 220V ±5%.




2.


   Check the start capacitor: Verify if the capacitance is normal, and check for leakage or bulging.




3.


   Check the compressor windings: Measure the resistance to see if it is normal (infinite = open circuit, 0 = short circuit).




4.


   Check the protection device: See if the thermal overload protector has tripped.




5.


   Check the system pressure: Verify if the high and low pressures are balanced (wait at least 3 minutes after shutdown before restarting).




•


  Internal valve plate wear in the compressor — The compressor needs to be replaced.




•


  Impurities in the system or insufficient refrigerant oil — The system needs to be flushed and refrigerant oil replenished.




•


  Aging of the anti-vibration pads on the mounting base — Replace the anti-vibration pads.




•


  Liquid slugging (liquid refrigerant entering the compressor) — Check the expansion valve opening and refrigerant charge amount.




A: The basic design life of a Panasonic compressor is 15 years. It has been proven and tested over the long term in different regions and climates around the world, offering stable and reliable performance. The actual service life depends on whether the system is matched correctly, whether the refrigerant charge is appropriate, and whether regular maintenance is performed.

•


  Insufficient refrigerant (low Freon) causing high discharge temperature and thermal protection.




•


  Foreign object blockage in the capillary tube, leading to excessive throttling.




•


  Poor condenser heat dissipation, or the fan not running or running slowly.




•


  For R22 compressors, when the evaporation temperature drops from -5°C to -40°C, the COP decreases by approximately 4 times.




•


  Before replacing the compressor, you must check if the system is dirty or blocked, and flush the piping.




•


  The dryer filter must be replaced.




•


  Check if water has entered the system — water ingress will cause compressor damage.




•


  Check if the copper piping is deformed.




•


  The compressor must never be operated when refrigerant is insufficient.




With its mature and reliable technology platform, clear power gradient, high reliability, and cost-effective maintenance, the Panasonic R22 fixed-frequency compressor series provides a high-performance, stable, and durable power solution for residential and light commercial air conditioning. Whether for repairing and replacing old air conditioners or for new installations with cost sensitivity, this compressor series meets users' core demands for stable cooling, low maintenance costs, and long-lasting service with its solid quality and long-term reliability.
