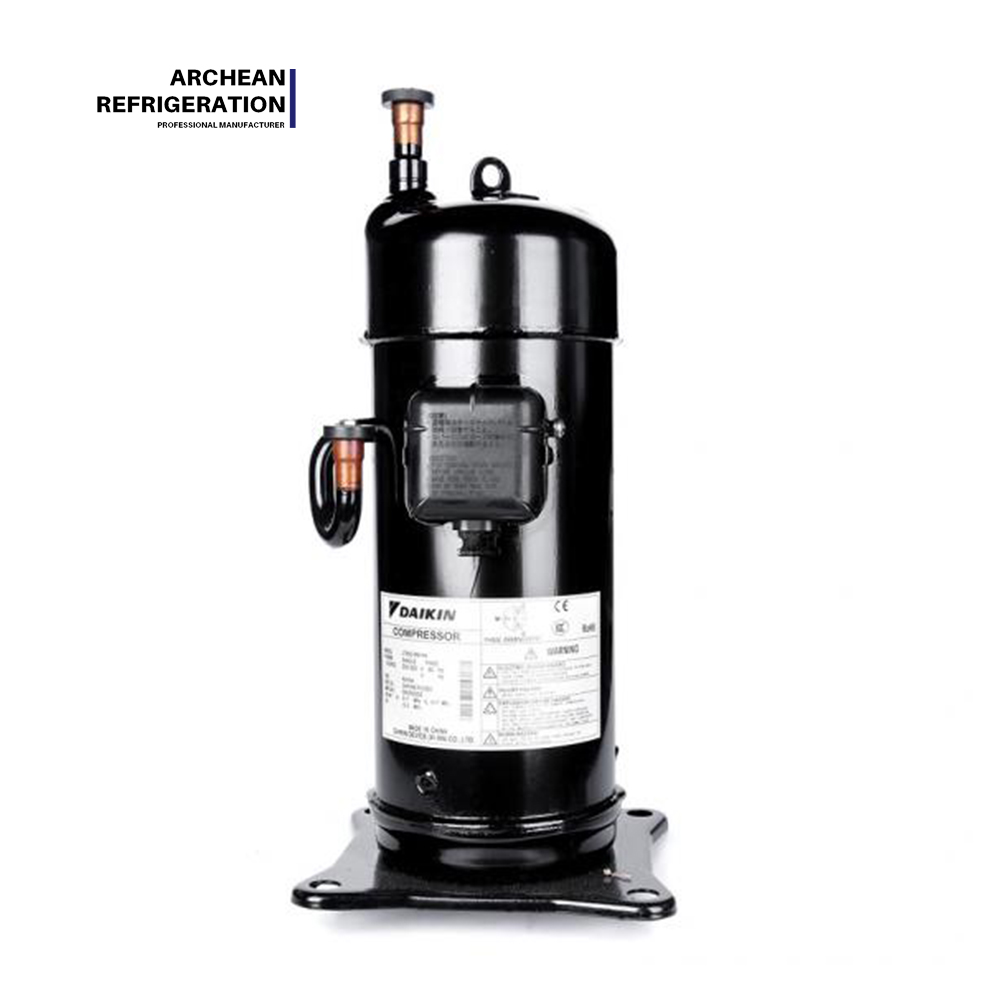

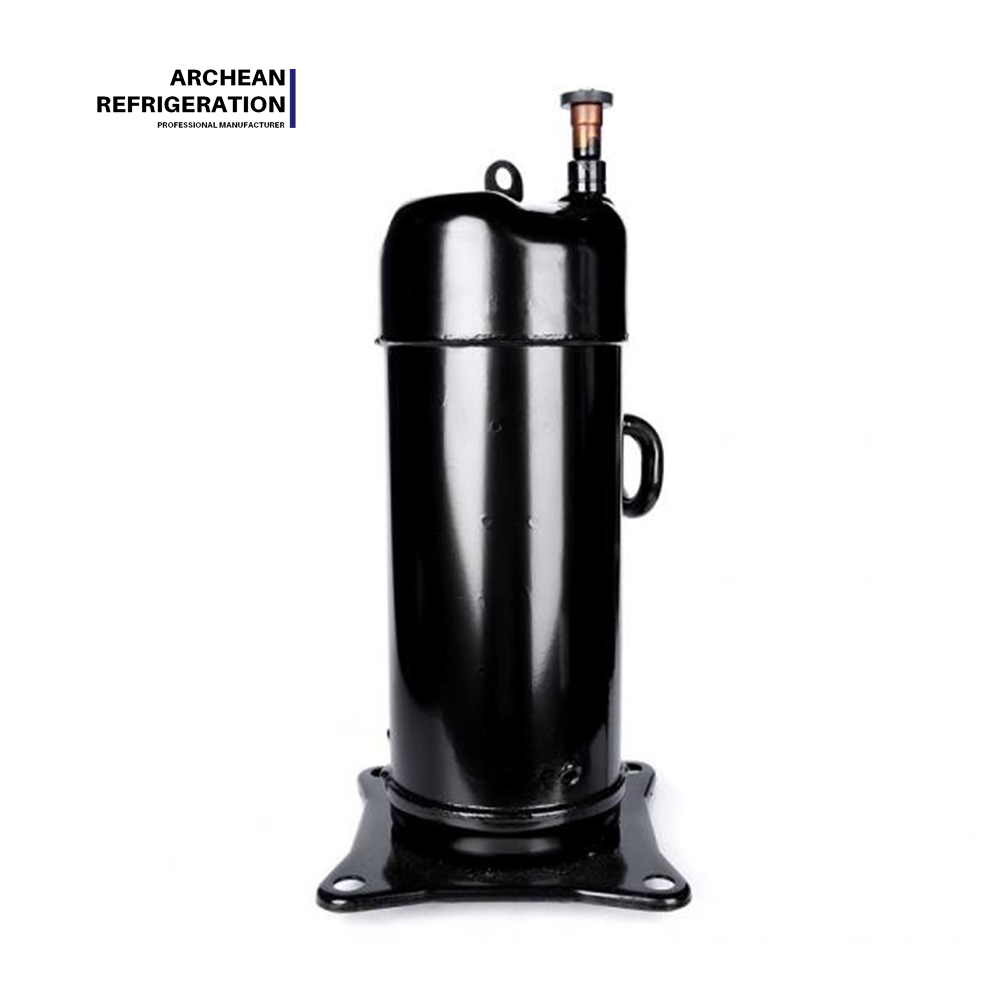

Variable Speed Scroll R32 Daikin Inverter Scroll Compressor JT90G-P8V1N for Air Conditioning

Scroll compressors inherently offer the advantages of low vibration and low noise due to their structural design — the orbiting scroll rotates around the fixed scroll without eccentric motion. Compared to the reciprocating motion of piston compressors, gas pulsation is significantly reduced. Building upon this, the JT90G-P8V1N further optimizes its internal flow channel design and balancing mechanism. In practical applications, the compressor starts and stops smoothly without harsh impact noises, and its operating noise is significantly lower than that of piston compressors with the same displacement. This advantage is particularly prominent in quiet environments such as offices, residential bedrooms, and hotel rooms — whether running continuously during the day or operating at low frequencies at night, it causes no noise disturbance to the indoor environment.

As the mainstream replacement for R22, R410A has a GWP (Global Warming Potential) of 2088 — still relatively high, but with an ODP (Ozone Depletion Potential) of zero and higher system energy efficiency. It has been widely adopted in residential and commercial air conditioning systems worldwide. The operating pressure of R410A is approximately 1.6 times higher than that of R22, imposing higher demands on the compressor's shell strength, sealing performance, and bearing load capacity. The JT90G-P8V1N adopts a reinforced shell and high-pressure resistant sealing structure to ensure long-term stable operation without leakage risks under the high-pressure conditions of R410A systems. Choosing a compressor specifically designed for R410A is the prerequisite for ensuring the safe, efficient, and compliant operation of the air conditioning system.

•


  Residential and Commercial Air Conditioning: 3HP wall-mounted units, cabinet units, and residential central air conditioning systems.




•


  Air Dryers: Compressed air drying equipment that requires long-term continuous compressor operation.




•


  Refrigeration and Fresh-Keeping Equipment: Small to medium-sized cold storage rooms and fresh-keeping cabinets.




•


  Ice Makers: Commercial ice-making equipment.




•


  Constant Temperature and Humidity Air Conditioning: Server rooms, laboratories, and precision equipment rooms.




•


  Dehumidifiers: Industrial and commercial dehumidification systems.




A: A compressor failing to start is usually related to power supply or system issues. First, check whether the power supply is stable and whether the voltage is too low or too high. Second, inspect the control circuit and internal compressor components for faults. Additionally, imbalanced system pressure (e.g., the high and low-pressure sides have not equalized) may also cause difficulty in starting.

A: Oil shortage is a common cause of wear and failure in compressors. Typical signs of insufficient oil include: the built-in protector tripping, high discharge or top-shell temperature protection activating, excessive operating current or even main circuit breaker tripping, and abnormal operating sounds from the compressor. Frequent start-stop cycles over a long period can prevent the lubricating oil from returning adequately, leading to oil starvation.

•


  Installation Issues: Loose compressor mounting bolts, or resonance with connected copper piping.




•


  System Issues: Liquid slugging of refrigerant is one of the most common causes. If liquid refrigerant floods back into the compressor, it can damage the scroll plates and produce loud, violent noise.




•


  Mechanical Failure: Wear or imbalance of internal compressor components.




Ideal for residential and commercial air conditioning systems, including VRF (variable refrigerant flow) setups, ductless mini-splits, and packaged rooftop units. The R32 compatibility and variable speed control make it perfect for energy-efficient buildings targeting LEED certification. It excels in hot-humid climates by maintaining consistent dehumidification at partial loads, while the low-noise design suits urban residential areas and noise-sensitive environments like hospitals and schools.

Is R32 flammable?

Yes, it is an A2L-class refrigerant with low flammability. Installations require certified technicians and proper safety measures to prevent leakage.

Can this compressor be used in heat pump mode?

Yes, it supports both cooling and heating operations, with a heating capacity of 6 tons at 7°C ambient temperature (3.5 COP).

What is the recommended pipe diameter for suction and discharge lines?

For 5-ton applications, use 19mm suction line and 12mm discharge line. Always follow Daikin’s piping guidelines to avoid pressure drops.

Does the inverter module come integrated or separate?

The compressor includes an external inverter module (sold separately) that must be installed within 1.5 meters for optimal communication and heat dissipation.
