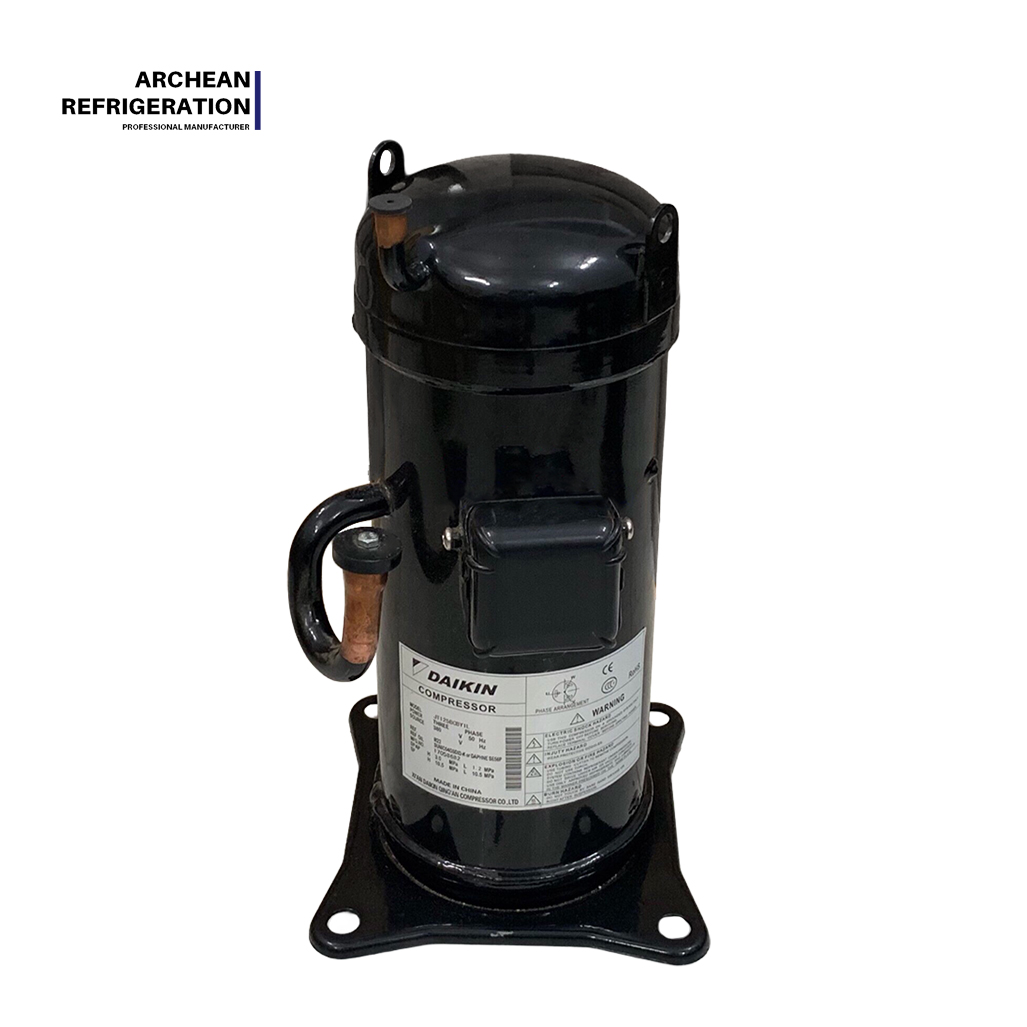

Refrigeration Scroll Compressor for Daikin Air Conditioner Compressor JT90GABV1L、JT95GABV1L、JT100GABV1L、JT125GA-V1

Refrigeration Scroll Compressor for Daikin Air Conditioner Compressor JT125GABY1 JT125GA-Y1 JT160GA-Y1 JT160GABYI JT170GA-Y1

Refrigeration Scroll Compressor for Daikin Air Conditioner Compressor JT90GABV1L、JT95GABV1L、JT100GABV1L、JT125GA-V1

Name: Refrigeration Scroll Compressor for Daikin Air Conditioner Compressor JT90GABV1L、JT95GABV1L、JT100GABV1L、JT125GA-V1
Brand: DAIKIN
Rating: 5.0 (48 reviews)

The Daikin JT Series G-type scroll compressors deliver reliable performance with R22 refrigerant. Covering 3–4 HP, this versatile line is widely applied in AC units, ice machines, cold storage, and dehumidifiers, providing the perfect balance of power and efficiency for diverse refrigeration demands.

Model:
JT90GABV1L、JT95GABV1L、JT100GABV1L、JT125GA-V1
Brand:
DAIKIN

Availability:

Quantity:



Inquire Add to Basket

Product Description

I. Series Overview

The JT series is Daikin's G-type line of high-efficiency scroll compressors. Utilizing R22 refrigerant, it covers a 3–4 HP power range and is widely used in air conditioning units, refrigerated air dryers, cold storage & fresh-keeping equipment, ice machines, precision air conditioning, dehumidifiers, and other refrigeration equipment.

Feature Dimension	Description
Brand	Daikin
Technology Type	Hermetic Scroll
Power Range	3 HP – 4 HP
Refrigerant	R22
Power Supply	Single-phase 220V/50Hz
Application Condition	A/C Condition (ARI 7.2/54.4℃)
Core Positioning	High efficiency, ultra-quiet, high reliability

Naming Rule Quick Reference

(Taking JT90GABV1L as an example)

Code	Meaning
JT	Hermetic Scroll Compressor
90	Cooling capacity grade under ARI conditions
G	G Series (3–5.5 HP high-efficiency scroll compressor)
A	Compressor series code
B	Refrigerant code (B = R22)
V1L	Power supply code (220V/50Hz single-phase)

Note: JT90GABV1L, JT95GABV1L, and JT100GABV1L are all 3 HP class models, while JT125GA-V1 is a 4 HP class model.

II. Full Series Parameter Comparison Table

Note: 50Hz operating condition, R22 refrigerant.

No.	Model	Nominal HP	Cooling Capacity (kW)	Cooling Capacity (Btu/h)	Input Power (kW)	Current (A)	COP	Displacement (cm³/rev)	Suction Conn. (mm)	Discharge Conn. (mm)
1	JT90GABV1L	3	8.41	28,700	2.56	11.9	3.30	45.8	Φ22.1-22.25	Φ16-16.15
2	JT95GABV1L	3	9.07	30,900	2.75	12.8	3.30	49.4	Φ22.1-22.25	Φ16-16.15
3	JT100GABV1L	3	9.33	31,800	2.83	13.2	3.31	49.8	Φ22.1-22.25	Φ16-16.15
4	JT125GA-V1	4	11.70	39,900	3.51	15.7	3.33	63.2	Φ22.1-22.25	Φ16-16.15

III. Core Technical Features

Feature – Technical Characteristics

High and Low-Pressure Chamber Structure: The JT series adopts a high and low-pressure chamber design. The suction gas flows through the motor before entering the scroll compression chamber, ensuring complete motor cooling under all operating conditions. The axial compliance mechanism allows the fixed and orbiting scrolls to separate slightly along the axial direction during operation, providing strong resistance to liquid slugging.

Asymmetrical Scroll Wrap Design: Featuring an asymmetrical scroll wrap design combined with oil film sealing technology, the sealing effect generated by the oil film of the flexible structure effectively reduces gas leakage and improves compression efficiency.

Dry Bearings: The JT series utilizes dry bearings to reduce friction loss, improve operational reliability, and offer strong adaptability to low noise requirements and ambient temperature variations.

Non-Contact Scrolls: The fixed and orbiting scrolls adopt a non-contact construction, achieving ultra-quiet operation and low vibration.

Advantage – Technical Advantages

Industry-Leading High Efficiency: The JT series achieves industry-leading efficiency through high-precision machining, unique assembly techniques, and advanced oil film sealing technology. With a COP of 3.30–3.33, it stands out among 3–4 HP scroll compressors. The JT125GA-V1 reaches a COP of 3.33, meaning it produces 3.33 kW of cooling for every 1 kW of electricity consumed.

Ultra-Quiet & Low Vibration: The non-contact fixed/orbiting scroll construction and absence of suction/discharge valves result in ultra-quiet operation and minimal vibration, making it ideal for noise-sensitive environments such as hotels, hospitals, and office buildings.

High Reliability & Long Life: With fewer moving parts, less reciprocating impact, and lower sliding speeds, the scroll compressor offers high reliability and a long service life. The axial compliance mechanism provides strong liquid slugging resistance, while dry bearings further enhance operational reliability.

Compact Size & Light Weight: The simple construction and fewer components result in a smaller, lighter compressor, facilitating equipment integration and on-site installation.

Benefit – User Benefits

For Equipment Manufacturers: The high energy efficiency and compact design of the JT series translate to lower system costs and more compact equipment structures.

For Refrigeration Contractors: The wide operating range and high reliability mean less after-sales repair work and lower maintenance costs.

For End-Users: With a COP of 3.30+, the JT series controls electricity bills while ensuring cooling performance. Its low-noise characteristics significantly enhance user comfort.

IV. Detailed Model Explanations

JT90GABV1L (3HP) – Standard 3HP Entry-Level Choice

The JT90GABV1L is the standard 3HP model in the JT series, delivering 8.41 kW (28,700 Btu/h) of cooling capacity with an input power of 2.56 kW, current of 11.9 A, and a COP of 3.30. Displacement is 45.8 cm³/rev. It operates on 220V/50Hz single-phase power and requires a 69μF running capacitor. Suitable for air conditioning units, refrigerated air dryers, cold storage, and fresh-keeping equipment.

JT95GABV1L (3HP) – Mid-Range 3HP Upgrade Choice

Building on the JT90GABV1L, the JT95GABV1L increases displacement to 49.4 cm³/rev and cooling capacity to 9.07 kW (30,900 Btu/h), with a current of 12.8 A and a maintained COP of 3.30. Compared to the JT90GABV1L, cooling capacity is increased by approximately 7.8%, making it suitable for 3HP applications requiring slightly higher capacity.

JT100GABV1L (3HP) – High-Capacity 3HP Choice

The JT100GABV1L is the highest cooling capacity model in the 3HP class, delivering 9.33 kW (31,800 Btu/h) with a displacement of 49.8 cm³/rev, current of 13.2 A, and a COP of 3.31. Ideal for 3HP-class air conditioning and refrigeration equipment with higher cooling demands.

JT125GA-V1 (4HP) – 4HP High-Capacity Flagship Choice

The JT125GA-V1 is the most powerful model in the JT series, rated at 4HP with a cooling capacity of 11.7 kW (39,900 Btu/h), displacement of 63.2 cm³/rev, current of 15.7 A, and a top-tier COP of 3.33. As the flagship model, it is suitable for air conditioning units, refrigerated air dryers, cold storage, ice machines, precision air conditioning, and dehumidifiers requiring higher cooling output.

V. Application Quick Selection Guide

Application Scenario	Recommended Model	HP	Key Advantage
Standard 3HP AC Units	JT90GABV1L	3	8.41kW, COP 3.30
3HP AC (Higher Capacity)	JT95GABV1L	3	9.07kW, 49.4cc displacement
3HP High-Capacity Refrigeration	JT100GABV1L	3	9.33kW, COP 3.31
4HP AC / Ice Machines / Precision AC	JT125GA-V1	4	11.7kW, COP 3.33

The JT series is widely used in air conditioning units, refrigerated air dryers, cold storage & fresh-keeping equipment, ice machines, precision air conditioning, dehumidifiers, and other refrigeration equipment.

Selection Guide / Quick Tips:

Standard 3HP: Choose JT90GABV1L

High-Capacity 3HP: Choose JT95GABV1L / JT100GABV1L

Large-Capacity 4HP: Choose JT125GA-V1
