In air conditioners, refrigerators, commercial freezers, cold storage, and industrial water chillers, the refrigeration compressor is known as the "heart" of the entire refrigeration unit. The system's cooling efficiency, operational stability, energy consumption, and service life largely depend on the working condition of the compressor.
For purchasers, HVAC (Heating, Ventilation, and Air Conditioning) engineers, and maintenance technicians, it is very common to encounter problems such as poor cooling performance, abnormal noise and vibration, repeated thermal overload tripping, and complete cooling failure.
This article covers definitions, working principles, refrigerant selection, service life, fault symptoms, causes of overload, noise and vibration analysis, replacement cycles, and maintenance tips. It aims to help you identify compressor faults, select the right equipment, and reduce downtime and operating costs.
1. What Is a Refrigeration Compressor?
A refrigeration compressor is the core power component of a vapor-compression refrigeration system.
It does not directly "create cold air." Its main function is to compress low-pressure refrigerant gas, build up system pressure, drive refrigerant circulation, and transfer heat from the indoor/cold space to the external environment.
From household appliances, commercial central air conditioning, and supermarket refrigeration cabinets to large industrial chillers and low-temperature cold storage, compressors are irreplaceable key components. Their quality directly determines the energy efficiency and reliability of the entire refrigeration system.
2. How Does a Refrigeration Compressor Work?

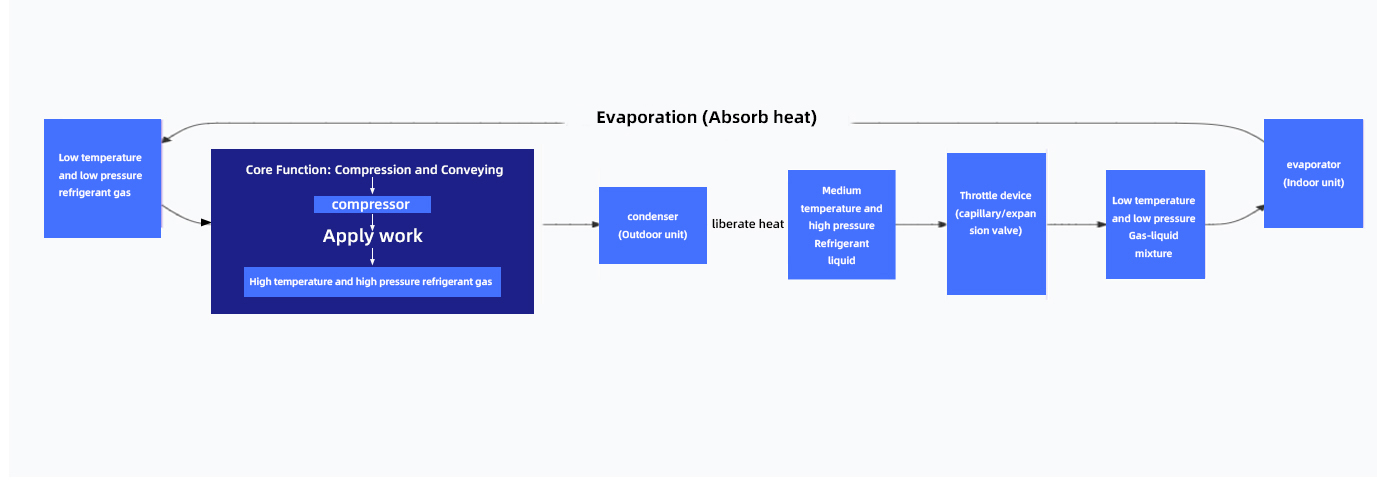

All vapor-compression refrigeration systems operate on a closed cycle with four stages: Compression → Condensation → Throttling → Evaporation.
Compression: The compressor draws in low-temperature, low-pressure refrigerant vapor from the evaporator. Through mechanical compression, it is converted into high-temperature, high-pressure gas.
Condensation: The high-temperature, high-pressure gas flows into the condenser, releases heat to the surrounding air or cooling water, and then condenses into a high-pressure liquid refrigerant.
Throttling: The liquid refrigerant passes through an expansion valve; its pressure and temperature drop sharply, forming a low-temperature, low-pressure gas-liquid mixture.
Evaporation: The cold refrigerant absorbs heat inside the evaporator to achieve cooling, and then returns to the compressor for the next cycle.
In short, the compressor keeps the refrigerant circulating, continuously transferring heat and maintaining the set temperature.
3. Common Refrigerants Used in Refrigeration Compressors
Refrigerant is the working medium inside the compressor. Different refrigerants are designed for different working pressure and temperature ranges. Mainstream options include:
R134a: Good stability, widely used in chillers, vehicle cooling units, and medium-temperature commercial freezers.
R404A: Excellent low-temperature performance, the standard choice for deep freezers, cold storage, and quick-freezing units.
R410A: High pressure and high efficiency, popular in variable-frequency central air conditioning and commercial refrigeration equipment.
R22: Traditional HCFC refrigerant, still found in old industrial equipment.
R32: New low-GWP (Global Warming Potential) eco-friendly refrigerant, high energy efficiency, widely used in new-generation air conditioning equipment.
4. Are All Refrigerants Universal? Can You Mix Refrigerants?
Important Note: Refrigerants are NOT universal. Mixing or random substitution of refrigerants is strictly prohibited.
Most compressor failures are caused by incorrect refrigerant selection. Every compressor is factory-rated for a specific refrigerant, matched lubricating oil, and pressure design.
Different refrigerants have different working pressures, boiling points, and oil compatibility. If a high-pressure refrigerant is charged into a compressor rated for low pressure, it may cause overpressure, pipe rupture, and compressor burnout. If the refrigeration oil is incompatible, lubrication will fail, leading to rotor/scroll plate seizure and permanent damage.
When replenishing refrigerant, always follow the refrigerant specification on the nameplate.
5. Typical Service Life of Refrigeration Compressors
Service life varies depending on working conditions, heat dissipation, power supply stability, refrigerant matching, and maintenance level:
Household refrigerator compressor: 10–15 years
Household air conditioner compressor: 8–12 years
Commercial scroll compressor (central AC, refrigeration cabinets): 10–15 years
Industrial screw compressor (24-hour continuous operation): 15–20 years
Continuous full-load operation, high ambient temperature, condenser blockage, unstable voltage, and abnormal refrigerant charge will greatly shorten the compressor's service life.
6. Common Fault Symptoms of Refrigerator and Air Conditioner Compressors
Refrigerator Compressor Failure Symptoms:
Frequent start-stop, immediate shutdown after startup
Compressor body overheats but no cooling
Temperature inside refrigerator/freezer keeps rising
Loud humming noise accompanied by strong vibration
Repeated overload tripping
Air Conditioner Compressor Failure Symptoms:
Outdoor fan runs but no cooling, indoor air stays warm
Unit shuts down after a few minutes due to thermal protection
Abnormal loud noise, metal knocking sound from outdoor unit
Unstable cooling performance, temperature fluctuations
Abnormally high power consumption
7. How to Tell If Your Refrigeration Compressor Is Bad
You can quickly diagnose the compressor status by checking the following signs:
Fans work normally but no cooling effect, no pressure difference on piping → Compressor loses compression capacity (pump failure, irreversible damage).
Compressor trips immediately on power-on / repeated thermal overload → Possible winding burnout, seized internal mechanism, or abnormal load.
Sudden increase in noise and vibration → Internal scroll plate/bearing wear, or failed anti-vibration rubber pads.
Frequent short cycling → Usually caused by unstable voltage, overcharged/undercharged refrigerant, or system blockage.
8. Why Does the Compressor Keep Tripping on Thermal Overload?
Thermal overload tripping is one of the most common faults. Common triggers include:
Poor heat dissipation: Dust clogging on condenser, insufficient ventilation, high ambient temperature.
Improper refrigerant charge: Overcharge causes high pressure and high temperature; undercharge causes dry running and overheating.
Unstable power supply: Low voltage or voltage fluctuations lead to excessive current and overload.
System blockage: Ice blockage or dirt blockage prevents refrigerant circulation and raises pressure.
Long-term overload: Undersized unit, extreme hot weather, uninterrupted full-load operation.
Insufficient lubrication: Insufficient or degraded refrigeration oil increases friction and temperature.
9. Scroll Compressor Loud Noise & Vibration: Analysis & Solutions
Scroll compressors are widely used in commercial refrigeration. Noise and vibration are common maintenance issues.
Root Causes:
Aging/hardening of anti-vibration rubber feet
Loose mounting bolts and pipe clamps
Worn scroll plates causing enlarged clearance
Liquid slugging (liquid refrigerant entering compressor, causing internal impact)
Stress on refrigerant pipes, unlevel installation
Solutions:
Replace rubber vibration isolators and level the compressor.
Tighten all bolts and pipe supports.
Check refrigerant charge to avoid liquid slugging.
Clean the condenser to reduce operating load.
Inspect voltage and add a stabilizer if necessary.
If internal parts are severely worn, repair or replace the entire compressor.
10. When to Replace Air Conditioning / Refrigeration Compressor
Household units: Evaluate replacement after 8–12 years of use.
Commercial high-duty units: Inspect and consider replacement within 6–10 years.
Industrial 24-hour running units: Major overhaul or replacement at 5–8 years.
If the unit experiences repeated overload protection, severe loss of cooling capacity, persistent abnormal noise, frequent repairs, and rising energy costs, replacement is more cost-effective than repeated repairs.
11. Conclusion & Maintenance Recommendations
According to industry statistics:
✅ 80% of compressor damage comes from poor heat dissipation and incorrect refrigerant use.
✅ 15% is caused by unstable voltage, frequent cycling, and overload.
✅ Only 5% is due to natural aging wear.
Most failures are not quality defects, but rather improper operation and lack of regular maintenance.
By adhering to the correct refrigerant, cleaning the condenser regularly, maintaining good ventilation, stabilizing the power supply, and avoiding continuous overload, you can greatly reduce the failure rate and extend the compressor's service life.
Understanding compressor basics, refrigerant compatibility, and troubleshooting will help you reduce downtime, lower operating costs, and keep your HVAC/cold storage system running efficiently.
