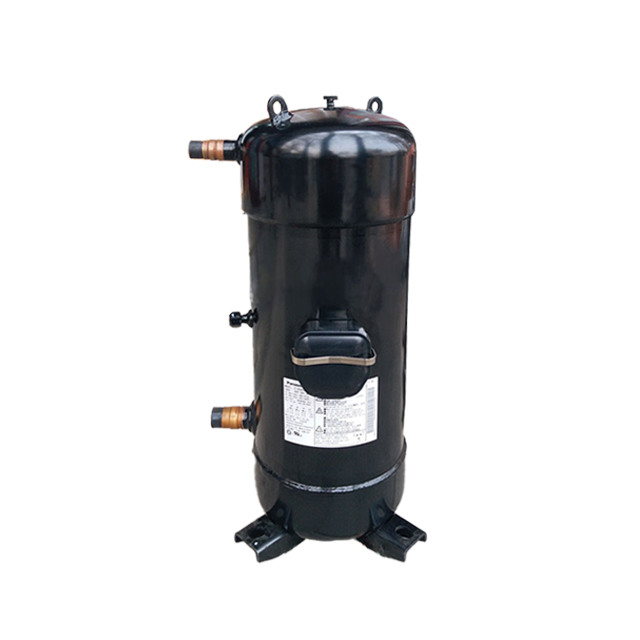

SANYO C-SC903H8H C-SC903H8K Inverter AC Scroll Compressor Air Conditioners Heat Exchangers 50/60Hz Compatible R22/R407A/R404 New Restaurant

This compressor, with its innovative compliant sealing mechanism and adaptive oil film control system, achieves near-zero leakage sealing performance under dynamic operating conditions. Its core sealing structure adopts a multi-stage progressive design that can adjust sealing clearances in real time based on pressure changes, ensuring stable sealing effectiveness under high-temperature, high-pressure, and frequent start-stop conditions. The precisely calculated oil film thickness not only reduces frictional losses but also forms a continuous protective layer during high-speed operation, extending the theoretical wear life of key moving components to over 40,000 hours.

Through asymmetric scroll tooth profile topology optimization and eccentricity correction technology, the compressor achieves continuous and smooth torque transition throughout the entire suction-compression-discharge process, completely eliminating the torque fluctuation peaks inherent in traditional compressors. This structural design suppresses operating vibration amplitude to below 0.02 mm and reduces harsh high-frequency components in the noise spectrum by up to 67%. The specially optimized low-frequency acoustic envelope design keeps the sound pressure level below 68 dB(A) even under full-load operation, fully complying with the ISO 3744 Class B quiet certification standard.

Even during nighttime low-load operation, it produces no perceptible noise disturbance, providing a solution that combines excellent performance with human-centric design for 24/7 continuous industrial applications.

Suitable for Medium-Temperature Warehouses: As a crucial link in the food cold chain logistics, it is primarily used for storing and preserving perishable products such as fresh food, fruits, vegetables, and dairy. By maintaining temperatures within the range of 0°C to +10°C, it effectively inhibits microbial growth, delays food spoilage, and preserves the original nutritional content and taste quality of the products.

Central Air Conditioning Systems: These systems are indispensable comfort equipment in modern buildings, providing a constant temperature, humidity, and clean air environment. They simultaneously supply cooling and heating sources to meet the demands of different zones.

Scroll Compressors: Paired with air-cooled or water-cooled chiller units and terminal devices such as fan coil units, air handling units, and fresh air units, they deliver comfortable, energy-efficient, and reliable air conditioning performance. The system is equipped with a Building Automation (BA) system to achieve intelligent management and energy-efficient operation.

problem:  How to improve the operating efficiency of the compressor?

Reply:

How to Systematically Improve Compressor Operating Efficiency

The operating efficiency of a compressor directly determines the energy consumption and operating costs of the entire refrigeration/air conditioning system. Through the following systematic and detailed optimization measures, energy efficiency can be effectively improved, achieving energy savings and cost reduction.

---

I. Detailed Core Optimization Measures

1. Maintain Efficient Cleanliness of Heat Exchangers

• Condenser: Ensure the surfaces of the condenser (fins of air-cooled or tubes of water-cooled types) are free from dust, pollen, oil stains, and other deposits. Regular cleaning can lower the condensation temperature; for every 1°C reduction in condensation temperature, compressor power consumption can be reduced by approximately 2–4%.

• Evaporator: Similarly, keep it clean and ensure the defrosting function operates properly. Avoid excessive frost buildup, which increases thermal resistance, leading to lower evaporation temperatures and reduced efficiency.

2. Optimize System Operating Temperatures

• Reasonably Increase Evaporation Temperature: While meeting process or comfort requirements, try to raise the evaporation temperature setpoint as much as possible. For every 1°C increase in evaporation temperature, compressor efficiency improves by 3–4%. For example, adjust cold storage temperature from -25°C to -24°C, or air conditioning supply air temperature from 7°C to 8°C.

• Effectively Reduce Condensation Temperature: Improve heat dissipation conditions for the condenser (e.g., ensuring proper ventilation or lowering cooling water inlet temperature) to lower condensation temperature. For every 1°C reduction in condensation temperature, compressor efficiency also improves by 2–3%.

3. Precisely Control Refrigerant Charge

• Regular Inspection and Adjustment: Use parameters such as pressure gauges, sight glasses, and superheat to ensure the refrigerant charge remains within the optimal range. Insufficient charge leads to reduced cooling capacity and high discharge temperatures, while overcharging increases condensation pressure, lowers energy efficiency ratio (EER), and may even cause liquid slugging.

4. Achieve Precise Matching of System Load

• Avoid "Oversized Equipment for Small Loads": Ensure the compressor capacity matches the actual cooling load. For multi-compressor systems or variable-frequency compressors, implement staged loading/unloading or infinite speed modulation through intelligent control systems to keep the compressor operating within its high-efficiency range.

• Reduce Unnecessary Operating Time: Optimize equipment start-stop logic by utilizing reasonable fluctuations in storage or room temperatures to minimize frequent compressor cycling and inefficient operation time.
