Home » Products » Refrigeration Compressor » SANYO COMPRESSOR » New Scroll Compressor for Home Commercial Use for Air-Conditioning Refrigeration Hotels Rotary Type C-SBX120H38A C-SBX145H38A

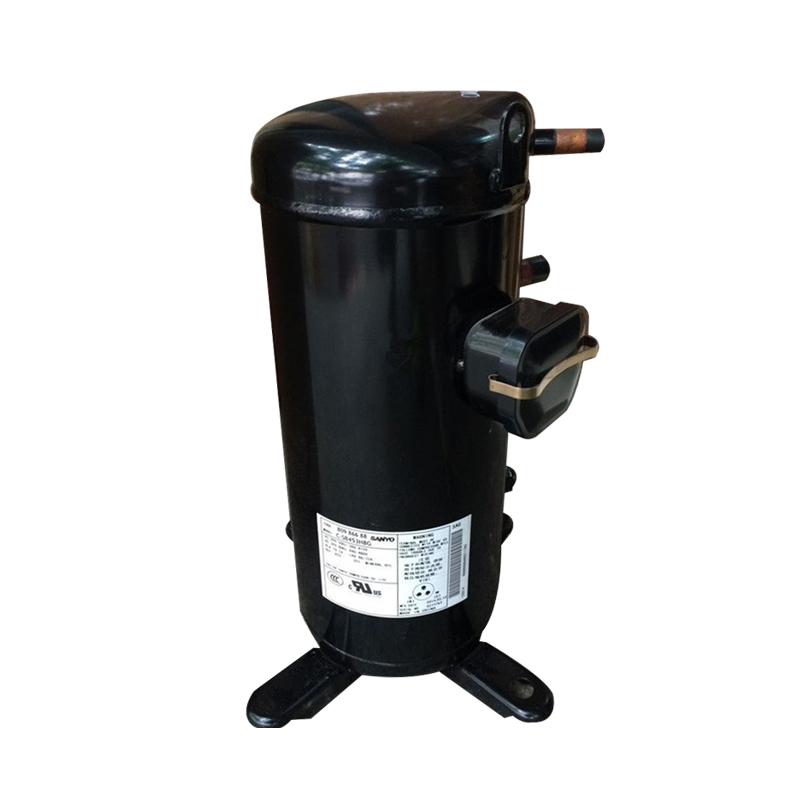

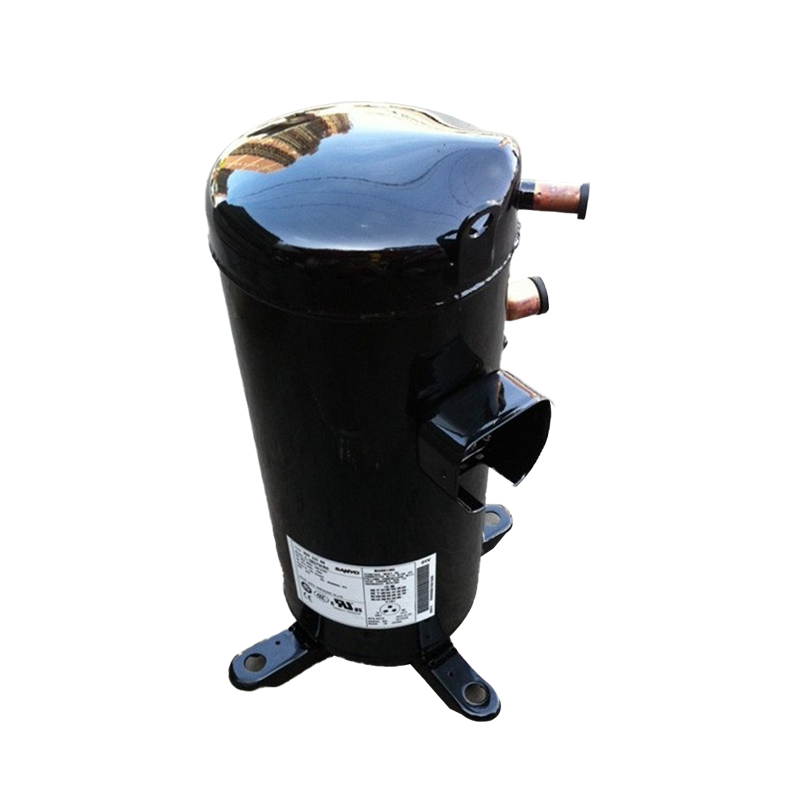

New Scroll Compressor for Home Commercial Use for Air-Conditioning Refrigeration Hotels Rotary Type C-SBX120H38A C-SBX145H38A

New Scroll Compressor for Home Commercial Use for Air-Conditioning Refrigeration Hotels Rotary Type C-SBX120H38A C-SBX145H38A

Name: New Scroll Compressor for Home Commercial Use for Air-Conditioning Refrigeration Hotels Rotary Type C-SBX120H38A C-SBX145H38A
Brand: SANYO
Rating: 5.0 (53 reviews)

Displacement (cm³/rev): 120.0 ~ 145.0
Displacement (in³/rev): 7.32 ~ 8.85
Refrigerant: R410A
Structure Type: DC Inverter Scroll Compressor
Type: Inverter Compressor
Voltage/Frequency: 380-415V/3Ph/50Hz
Cooling Capacity Range (kW): ≈15.0-35.0 / ≈20.0-45.0

Model:
C-SBX120H38A C-SBX145H38A
Brand:
SANYO

Availability:

Quantity:



Inquire Add to Basket

Product Description

Core Data of the SANYO (now Panasonic) C-SBX Series Scroll Compressors:

Parameter	C-SBX120H38A	C-SBX145H38A
Model	C-SBX120H38A	C-SBX145H38A
Displacement (cm³/rev)	120.0	145.0
Displacement (in⊃3;/rev)	7.32	8.85
Refrigerant	R410A	R410A
Structure Type	DC Inverter Scroll Compressor	DC Inverter Scroll Compressor
Type	Inverter Compressor	Inverter Compressor
Motor Type	Brushless DC Motor	Brushless DC Motor
Inverter Range	15-120 Hz	15-120 Hz
Voltage/Frequency	380-415V/3Ph/50Hz	380-415V/3Ph/50Hz
Cooling Capacity Range (kW)	≈15.0-35.0	≈20.0-45.0
Power Range (kW)	≈4.5-12.0	≈6.0-15.0
Applicable Horsepower (HP)	5-12 HP	7-15 HP
Maximum Working Pressure	4.3 MPa	4.3 MPa
Evaporation Temperature Range	-20°C ~ +15°C	-20°C ~ +15°C
Condensation Temperature Range	+20°C ~ +55°C	+20°C ~ +55°C
Ambient Temperature Range	-10°C ~ +46°C	-10°C ~ +46°C
Lubricant Type	PVE Synthetic Oil	PVE Synthetic Oil
Oil Charge Volume	2.8-3.2 L	3.2-3.6 L
Operating Noise	<65 dB(A)	<68 dB(A)
Design Life	>50,000 hours	>50,000 hours
Connection Port Sizes	Suction: 3/4" Discharge: 5/8"	Suction: 7/8" Discharge: 3/4"

Core Technical Features

High-Efficiency Inverter Scroll Technology

Wide Frequency Operation: 15-120 Hz range for precise system load matching.
High-Efficiency Motor: Uses high magnetic energy rare-earth magnets, motor efficiency up to 95%.
Optimized Scroll: Asymmetric scroll design reduces internal leakage.
Excellent Energy Efficiency: APF (Annual Performance Factor) reaches 4.5-5.0.

Exceptional Reliability

Motor winding temperature protection
Discharge temperature protection
Overcurrent protection
High and low-pressure protection

Dual Flexible Design: Axial and radial flexible structure for strong liquid slugging resistance.
High-Strength Housing: Precision-cast housing with high-pressure resistance.
Intelligent Protection:
Optimized Oil Circuit: Forced oil supply system ensures lubrication under all operating conditions.

Superior Operating Performance

Ultra-Low Noise: Special muffler cavity design ensures smooth, quiet operation.
Low Vibration: Precision dynamic balancing, vibration amplitude <20 µm.
Rapid Response: Reaches set frequency within 5 seconds of start-up.
Wide Operating Range: Adapts to evaporation temperatures from -20°C to +15°C.

Application Areas

Primary Applications for C-SBX120H38A:

Medium and small commercial VRF (Variable Refrigerant Flow) air conditioning systems
Modular water chiller units
Commercial heat pump systems
Data center precision air conditioning
High-end residential central air conditioning

Primary Applications for C-SBX145H38A:

Large commercial VRF air conditioning systems
Central air conditioning systems
Industrial process cooling
Large-scale heat pump systems
Cold chain logistics refrigeration

Model Feature Comparison

Model	Core Advantage	Particularly Suitable Scenarios
C-SBX120H38A	High-efficiency inverter, fast response	Commercial VRF, modular units, high-end residential air conditioning
C-SBX145H38A	Large capacity, high reliability	Large central air conditioning, industrial cooling, heat pump systems
