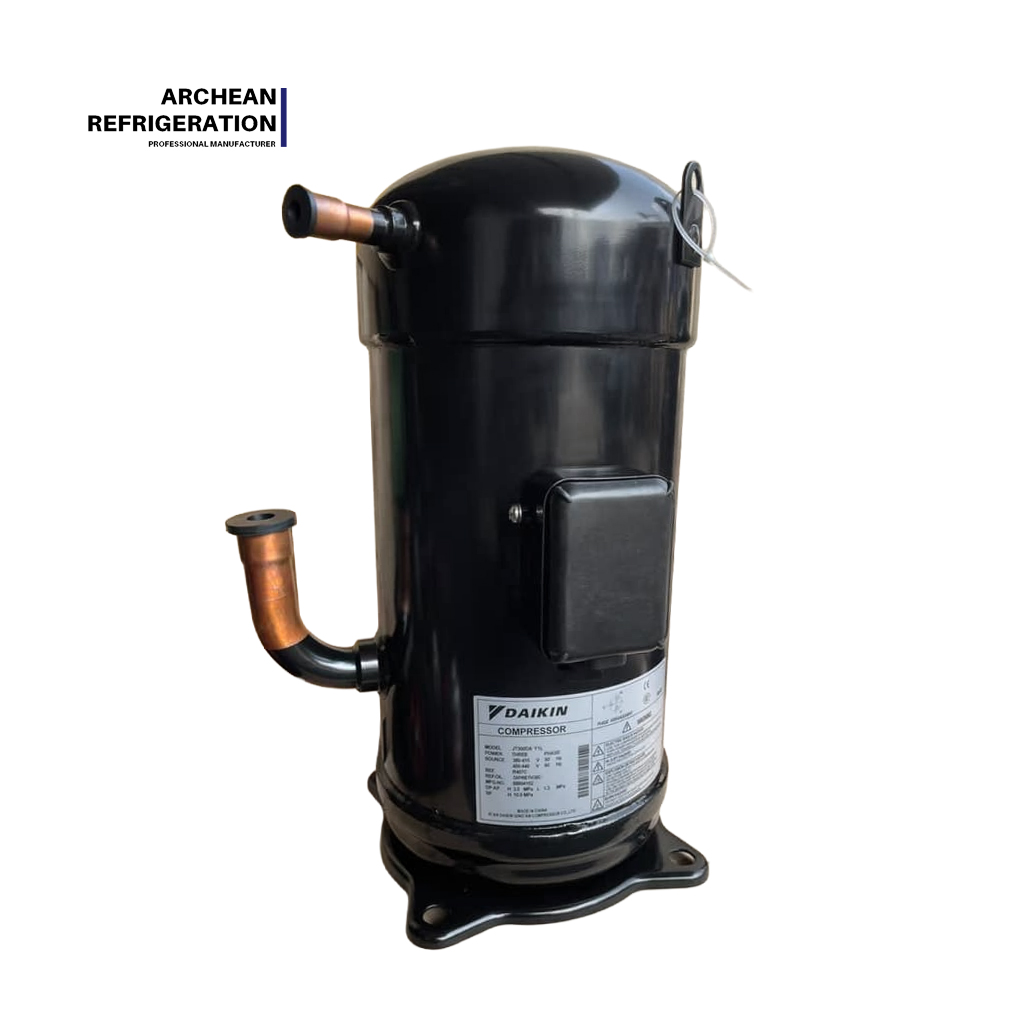

On Sale for DAIKIN JT212DA-Y1、JT265DA-Y1、JT300DA-Y1、JT335DA-Y1、JT300DA-Y1L、JT335DA-Y1L Air Conditioner Reliability Enhanced by High

On Sale for DAIKIN JT212DA-Y1 Air Conditioner Reliability Enhanced by High Quality Refrigeration Compressor Heat Exchange Parts

On Sale for DAIKIN JT212DA-Y1、JT265DA-Y1、JT300DA-Y1、JT335DA-Y1、JT300DA-Y1L、JT335DA-Y1L Air Conditioner Reliability Enhanced by High

Name: On Sale for DAIKIN JT212DA-Y1、JT265DA-Y1、JT300DA-Y1、JT335DA-Y1、JT300DA-Y1L、JT335DA-Y1L Air Conditioner Reliability Enhanced by High
Brand: DAIKIN
Rating: 5.0 (84 reviews)

The hermetic design seals the motor and compression mechanism within the same housing, completely eliminating the risk of refrigerant leakage while enhancing moisture and dust resistance. At the same time, it adopts rolling bearings and dry bearings, effectively reducing friction loss and extending the compressor's service life. It features exceptional resistance to liquid slugging and demonstrates strong adaptability to low temperatures and ambient temperature variations.

3-phase motors deliver smooth startup, high torque, and high operating efficiency, making them especially suitable for high-load, long-hour operation scenarios such as cold chain logistics and cold storage facilities. Compared with single-phase motors, 3-phase motors produce lower inrush current impact, causing less disturbance to the power grid.

Model:
JT212DA-Y1、JT265DA-Y1、JT300DA-Y1、JT335DA-Y1、JT300DA-Y1L、JT335DA-Y1L
Brand:
DAIKIN

Availability:

Quantity:



Inquire Add to Basket

Product Description

DA Series R407C 3-Phase 380V/50Hz Eco-Friendly Large-Displacement Platform

Included Models: JT212DA-Y1, JT265DA-Y1, JT300DA-Y1, JT335DA-Y1, JT300DA-Y1L, JT335DA-Y1L

Core Parameters Overview

Model	HP	Displacement (cm³/rev)	Power Supply	Cooling Capacity (kW)	COP (W/W)
JT212DA-Y1	7HP	117.3	3-Phase 380-415V/50Hz	Approx. 21.0	Approx. 2.8
JT265DA-Y1	8.5HP	144.7	3-Phase 380-415V/50Hz	23.4	2.8
JT300DA-Y1 / JT300DA-Y1L	10HP	163.0	3-Phase 380-415V/50Hz	29.6	—
JT335DA-Y1 / JT335DA-Y1L	12HP	184.2	3-Phase 380-415V/50Hz	Approx. 34.0	—

Product Positioning

Designed for 7-12HP R407C eco-friendly refrigerant large-scale commercial air conditioning, water chillers, and industrial refrigeration systems.

Core Technical Advantages

1. R407C Eco-Friendly Refrigerant: The DA series is optimized specifically for R407C eco-friendly refrigerant. As an eco-friendly alternative to R22, R407C features a lower GWP (Global Warming Potential), meeting increasingly stringent global environmental regulations.

2. Full Coverage of Large Displacement: Covering 7-12HP with a displacement of 117.3-184.2 cm³/rev. Cooling capacity ranges from 21.0 to 34.0 kW, meeting the full-scenario demands of large commercial and industrial refrigeration.

3. Mature D Series Platform: The DA series is developed based on the proven D series platform. It inherits all the technical advantages of the D series — core technologies such as asymmetric scrolls, rolling bearings, and dry bearings.

4. 3-Phase 50Hz Commercial Power: The Y1/Y1L suffix is optimized for 3-phase 380-415V/50Hz commercial power. 3-phase motors deliver smooth startup and high torque, making them suitable for high-load commercial scenarios.

5. Balancing Eco-Friendliness and Performance: While enabling R407C eco-friendly refrigerant application, it maintains the consistently high energy efficiency and reliability of the D series.
