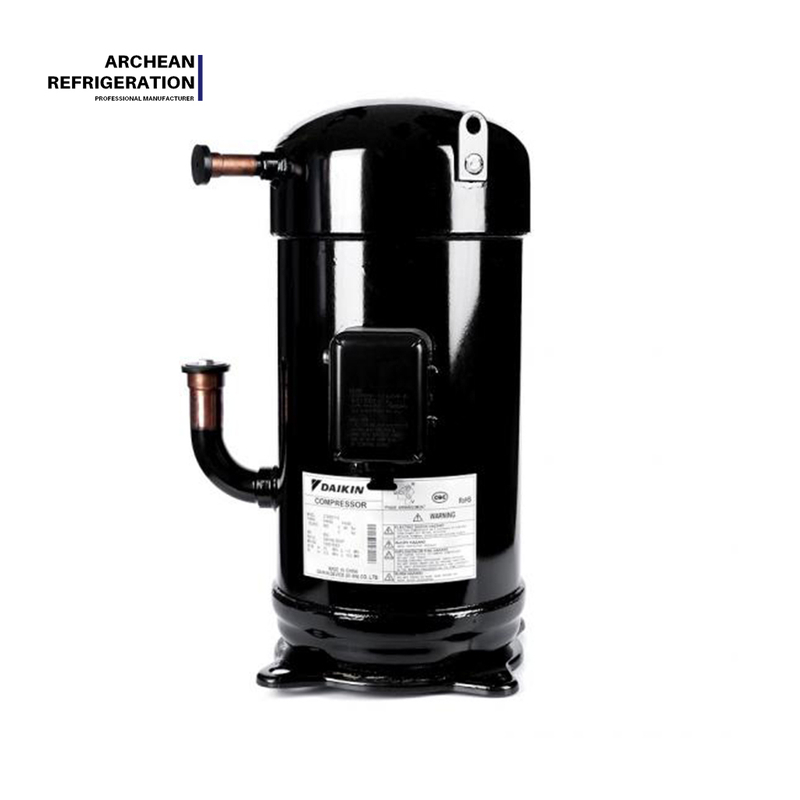

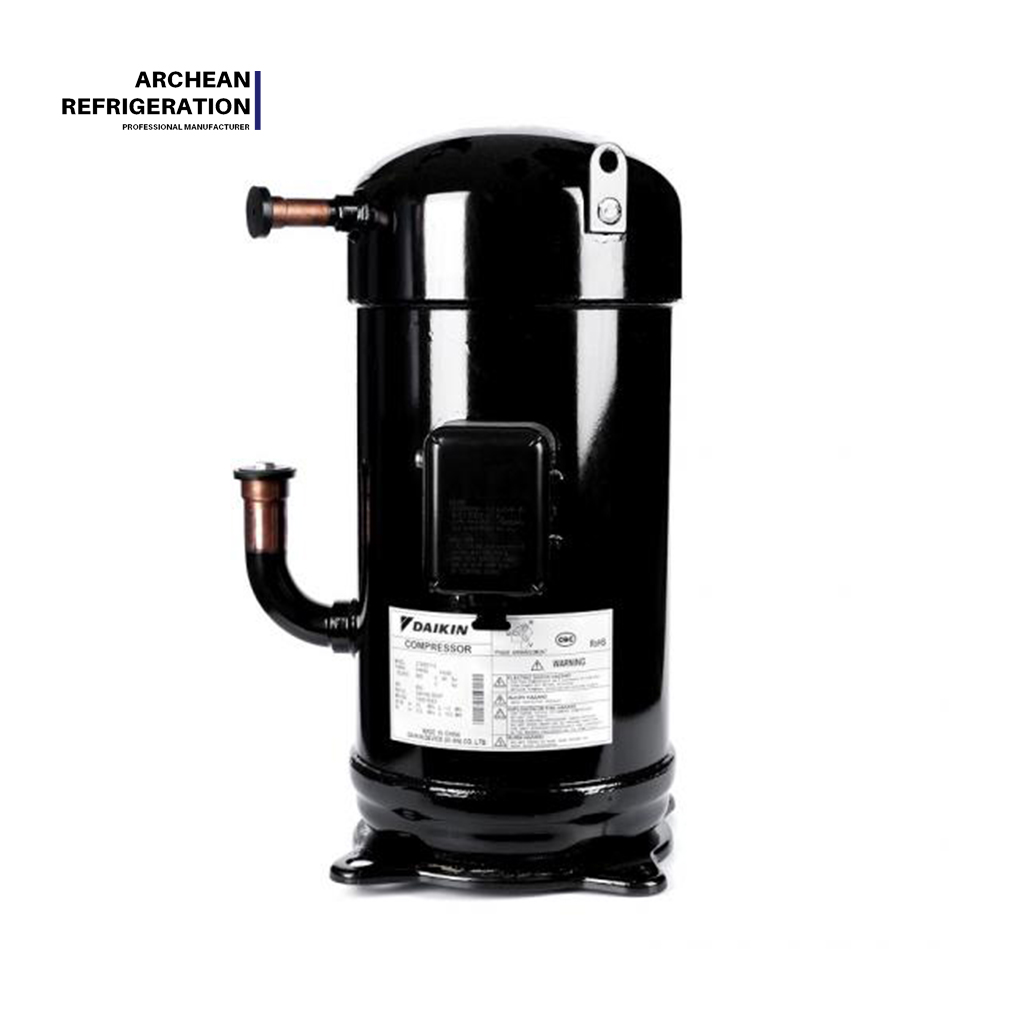

High-efficiency Rotary 1.5 Ton Daikin Ac CompressorJT300D-Y1L、JT315D-Y1L、JT335D-Y1L、JT212D-YE、

High-efficiency Rotary 1.5 Ton Daikin Ac CompressorJT300D-Y1L、JT315D-Y1L、JT335D-Y1L、JT212D-YE、

Name: High-efficiency Rotary 1.5 Ton Daikin Ac CompressorJT300D-Y1L、JT315D-Y1L、JT335D-Y1L、JT212D-YE、
Brand: DAIKIN
Rating: 5.0 (10 reviews)

Large Displacement · High Cooling Capacity — The Core Power for 7-12HP Commercial & Industrial Refrigeration
Adopting Daikin's unique asymmetric scroll technology, combined with rolling bearings and dry bearings, it achieves a COP of 3.22-3.26 W/W. Widely used in water chillers, offices, restaurants, hospitals, and industrial refrigeration.

Model:
JT300D-Y1L、JT315D-Y1L、JT335D-Y1L、JT212D-YE、JT236D-YE、JT265D-YE、JT300D-YE、JT335D-YE、JT212D-P1YE、JT236D-P1YE、JT265D-P1YE、JT300D-P1YE、JT335D-P1YE
Brand:
DAIKIN

Availability:

Quantity:



Inquire Add to Basket

Product Advantage

D Series R22 3-Phase 50/60Hz Large-Displacement Commercial Platform

Included Models: JT300D-Y1L, JT315D-Y1L, JT335D-Y1L, JT212D-YE, JT236D-YE, JT265D-YE, JT300D-YE, JT335D-YE, JT212D-P1YE, JT236D-P1YE, JT265D-P1YE, JT300D-P1YE, JT335D-P1YE

Core Parameters Overview

Model	HP	Displacement (cm³/rev)	Power Supply	Cooling Capacity (kW)	COP (W/W)
JT212D-YE / JT212D-P1YE	7HP	117.3	3-Phase 400V/60Hz	21.3	3.22
JT236D-YE / JT236D-P1YE	7.5HP	131.0	3-Phase 400V/60Hz	28.1	3.26
JT265D-YE / JT265D-P1YE	8.5HP	144.7	3-Phase 400V/60Hz	—	—
JT300D-Y1L / JT300D-YE / JT300D-P1YE	10HP	163.0	3-Phase 380V/50Hz	29.9	—
JT315D-Y1L	10.5HP	Approx. 171.0	3-Phase 380V/50Hz	—	—
JT335D-Y1L / JT335D-YE / JT335D-P1YE	12HP	184.2	3-Phase 380V/50Hz	34.0	—

Note: -Y1L denotes 3-phase 380-415V/50Hz; -YE denotes 3-phase 400V/60Hz; -P1YE denotes P1 type 60Hz version.

Product Positioning

Designed for 7-12HP R22 large-scale commercial air conditioning, VRF systems, and industrial refrigeration systems.

Core Technical Advantages

1. Large Displacement · High Cooling Capacity: The D series covers 7-12HP with a displacement range of 117.3-184.2 cm³/rev. Cooling capacity ranges from 21.3 to 34.0 kW, meeting the demands of large commercial and industrial refrigeration applications.

2. 50Hz/60Hz Dual-Frequency Adaptability: The -Y1L suffix is for 3-phase 380-415V/50Hz; the -YE suffix is for 3-phase 400V/60Hz. A single platform covers both 50Hz and 60Hz power grids, adapting to power supply standards across different countries and regions.

3. P1YE High-Reliability Version: The -P1YE suffix represents the high-reliability version of the D series. Specially reinforced for long-hour, high-load operation scenarios, it is suitable for industrial refrigeration applications with extremely high reliability requirements.

4. Asymmetric Scroll Technology: Adopts Daikin's unique asymmetric scroll design. Optimizes the refrigerant distribution path, reduces secondary expansion losses, and significantly enhances compression efficiency.

5. Rolling Bearing + Dry Bearing: Features rolling bearing and dry bearing designs. Effectively reduces friction loss, improves mechanical efficiency, and extends the compressor's service life.

6. Wide Application Scenarios: Widely used in compact water chillers, office buildings, restaurants, hospital air conditioning, and industrial water cooling units.

7. High-Efficiency Performance: Achieving a COP of 3.22-3.26 W/W, it ranks among the leaders in energy efficiency for large commercial compressors.

Suitable Applications

Large commercial air conditioning (7-12HP cabinet units/unitary systems)
VRF (Variable Refrigerant Flow) systems
Water chillers and industrial water cooling units

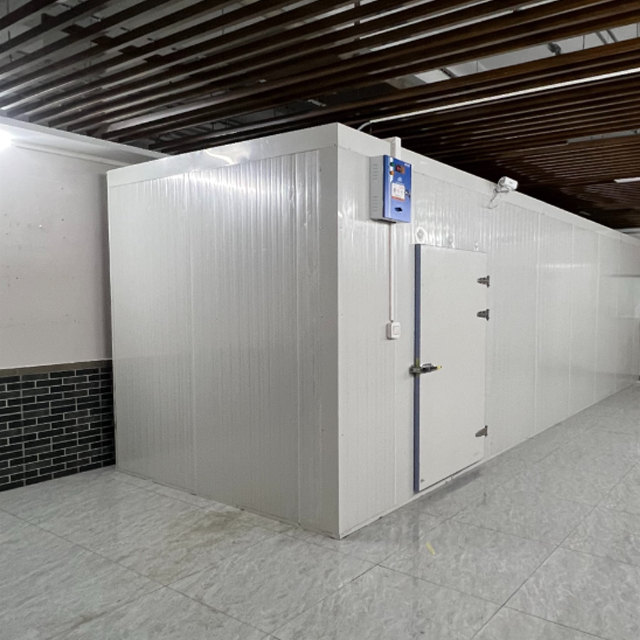

Freezing and refrigeration equipment, cold storage rooms

Product Uses

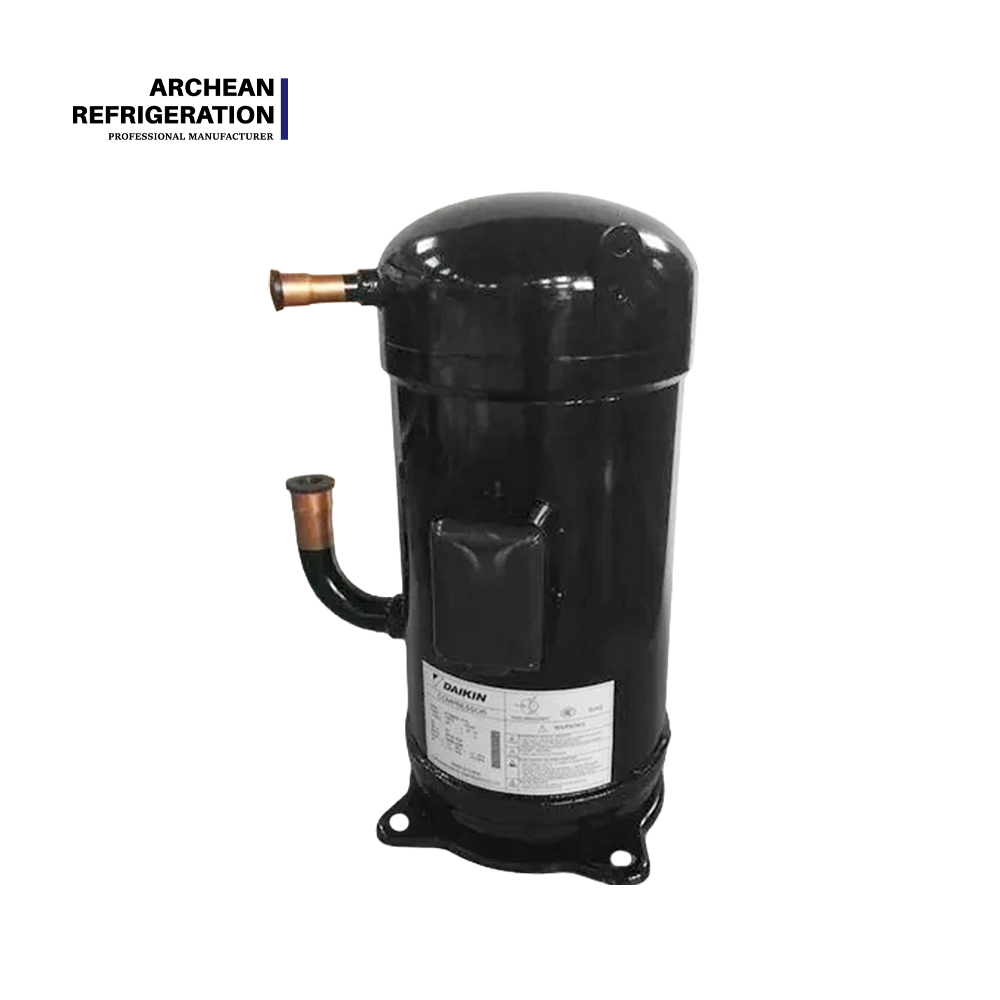

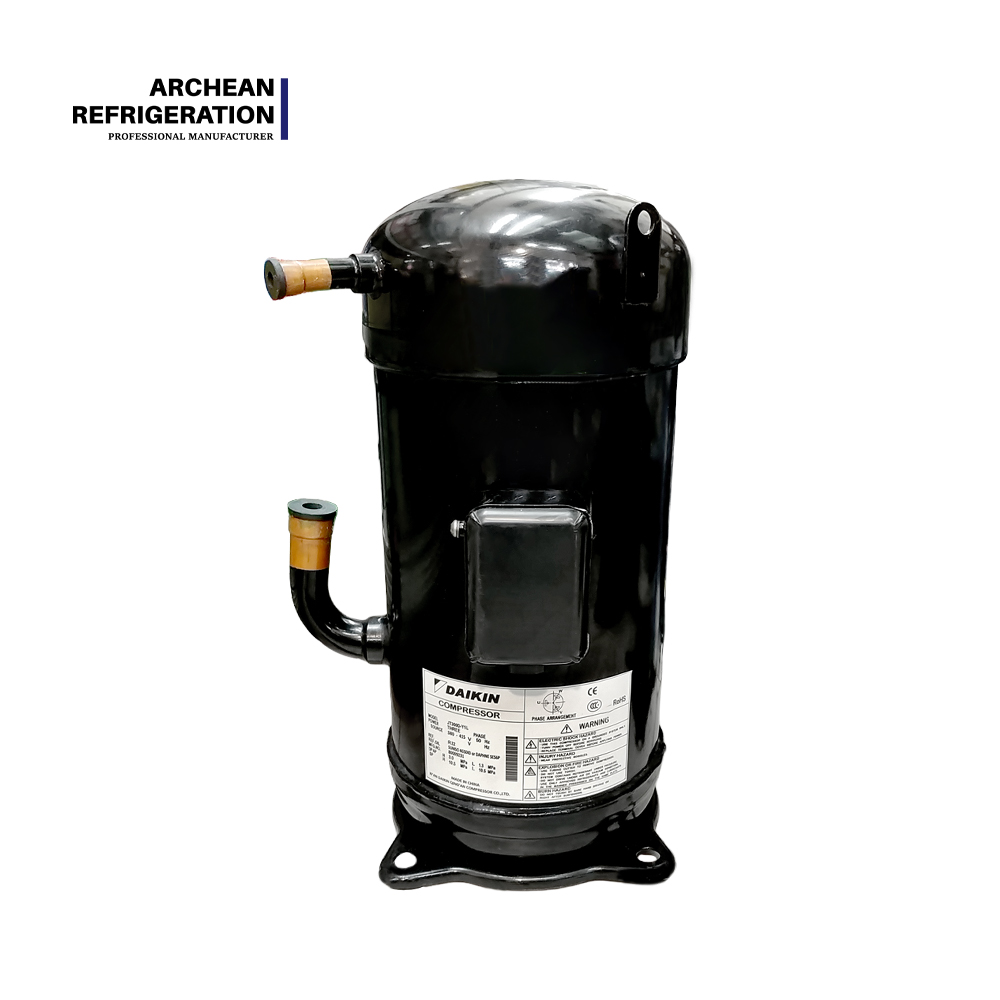

The Daikin JT300D-Y1L is a 10HP high-efficiency scroll compressor from Daikin's D series, utilizing R22 refrigerant. It features a displacement of 163 cm³/rev and delivers a cooling capacity of 29.6 kW (102,000 BTU/h). This model is widely used in air conditioning units, air dryers, drying equipment, and other industrial refrigeration systems powered by 3-phase 380V/50Hz. Daikin compressors have been proven through long-term application across different regions and climatic conditions worldwide, delivering stable and reliable performance.

The JT300D-Y1L adopts Daikin's proprietary asymmetric scroll technology. Compared to symmetric scrolls, the asymmetric design optimizes the refrigerant distribution path, reduces secondary expansion losses, and significantly enhances compression efficiency. Combined with axial compliance sealing technology, it achieves efficient sealing between the orbiting and fixed scrolls through an oil film effect, effectively minimizing gas leakage.

适用场景

FAQ

Q1: Can you provide some specific application cases to illustrate the advantages of this compressor?

I. Hotel and Catering Industry

Case: Central Air Conditioning System in a 5-Star Hotel

A five-star hotel selected the Daikin JT300D-Y1L compressor as the core power for its guest room central air conditioning system. The large cooling capacity of 10HP (29.6 kW) easily meets the cooling demands of both guest rooms and public areas. Adopting Daikin's proprietary asymmetric scroll technology, the compressor operates at a noise level as low as 65 dB(A), ensuring a quiet and comfortable guest room environment that meets library-level silence standards. In heating mode, it operates stably even in low-temperature environments of -15°C, satisfying the winter heating needs of hotels in cold regions. The compressor's high-reliability design has enabled the hotel's air conditioning system to achieve over 10 years of trouble-free operation on average, significantly reducing maintenance costs.

II. Industrial Refrigeration and Cold Storage Equipment

Case: Refrigeration Unit for Food Cold Chain Cold Storage

In the food cold chain sector, the Daikin JT300D-Y1L compressor is widely used in medium-sized cold storage refrigeration systems (evaporating temperature -5°C to +10°C). With a displacement of 163 cm³/rev and a cooling capacity of 29.6 kW, it achieves a COP of up to 3.31 W/W. The system maintains stable operation even under frequent start-stop conditions. The built-in motor protection device effectively prevents overload and locked-rotor faults, ensuring temperature control accuracy within ±1°C, providing reliable assurance for the long-term storage of fresh food.

Selection Tip: For R407C eco-friendly refrigerant applications, please select the JT300DA-Y1L model from the same series.

III. Medical Cleanroom Engineering

Case: Cleanroom Air Conditioning System in a Hospital Operating Room

The cleanroom air conditioning system of a Grade III Class A hospital selected the Daikin JT300D-Y1L compressor. The large 10HP cooling capacity ensures a constant temperature and humidity environment even when large operating rooms are running at full load. The hermetic structure effectively eliminates the risk of refrigerant leakage, meeting the stringent air cleanliness requirements of medical environments. The wide voltage adaptability range (340-440V) ensures stable operation even during power grid fluctuations. The compressor's high-precision temperature control capability achieves an accuracy of ±0.5°C in the operating room, providing a safe and reliable air environment for various surgical procedures. The 10HP large cooling capacity configuration ensures stable cleanroom air conditioning performance even in situations with high personnel density and significant heat generation from equipment.

IV. Commercial Complexes and Large Office Spaces

Case: Central Air Conditioning in a Large Commercial Complex

A large urban commercial complex selected the Daikin JT300D-Y1L compressor as the core power for its central air conditioning main unit. The large 10HP cooling capacity is sufficient to meet the cooling demands of large commercial spaces under high-load conditions. Adopting Daikin's asymmetric scroll design and unequal tooth thickness technology, it maintains high-efficiency operation even under high-temperature and high-load conditions in summer, with a COP of up to 3.31 W/W. The system design utilizes ultra-long refrigerant piping (maximum pipe length 165 meters), allowing outdoor units to be centrally placed on the rooftop, minimizing the impact on the building's exterior facade. The D-series platform's excellent part-load operation efficiency reduces annual operating costs by approximately 30% compared to同级 fixed-speed systems.

V. Industrial Water Chillers

Case: Process Cooling System in a Factory Workshop

An electronics manufacturing factory selected the Daikin JT300D-Y1L compressor as the power core for its workshop process cooling water chiller. The 10HP cooling output, combined with a cooling capacity of 29.6 kW, provides constant-temperature cooling water for precision manufacturing equipment. The compressor adopts rolling bearing and dry bearing designs, effectively reducing friction loss and maintaining excellent reliability even under long-term continuous operation. The -Y1L suffix (3-phase 380V/50Hz) is compatible with standard industrial power supplies, eliminating the need for additional transformers and reducing system costs and installation complexity.

Summary

The above application cases fully demonstrate the comprehensive advantages of the Daikin JT300D-Y1L compressor in terms of high energy efficiency, low noise, high reliability, wide adaptability, and flexible installation. It is an ideal choice for commercial air conditioning, industrial refrigeration, medical cleanrooms, and ventilation systems in large venues.

Application Sector	Core Advantages	Key Parameters
5-Star Hotels	Low noise (65 dB), low-temp heating	Stable operation at -15°C, 10 years trouble-free
Cold Chain Storage	High efficiency, precise temp control	COP 3.31 W/W, ±1°C accuracy
Hospital Operating Rooms	Hermetic sealing, wide voltage	340-440V, ±0.5°C temp control accuracy
Commercial Complexes	High cooling capacity, part-load efficiency	30% annual energy savings, 165m piping
Factory Water Chillers	Continuous operation, industrial power	Direct 3-phase 380V, low-friction bearings
