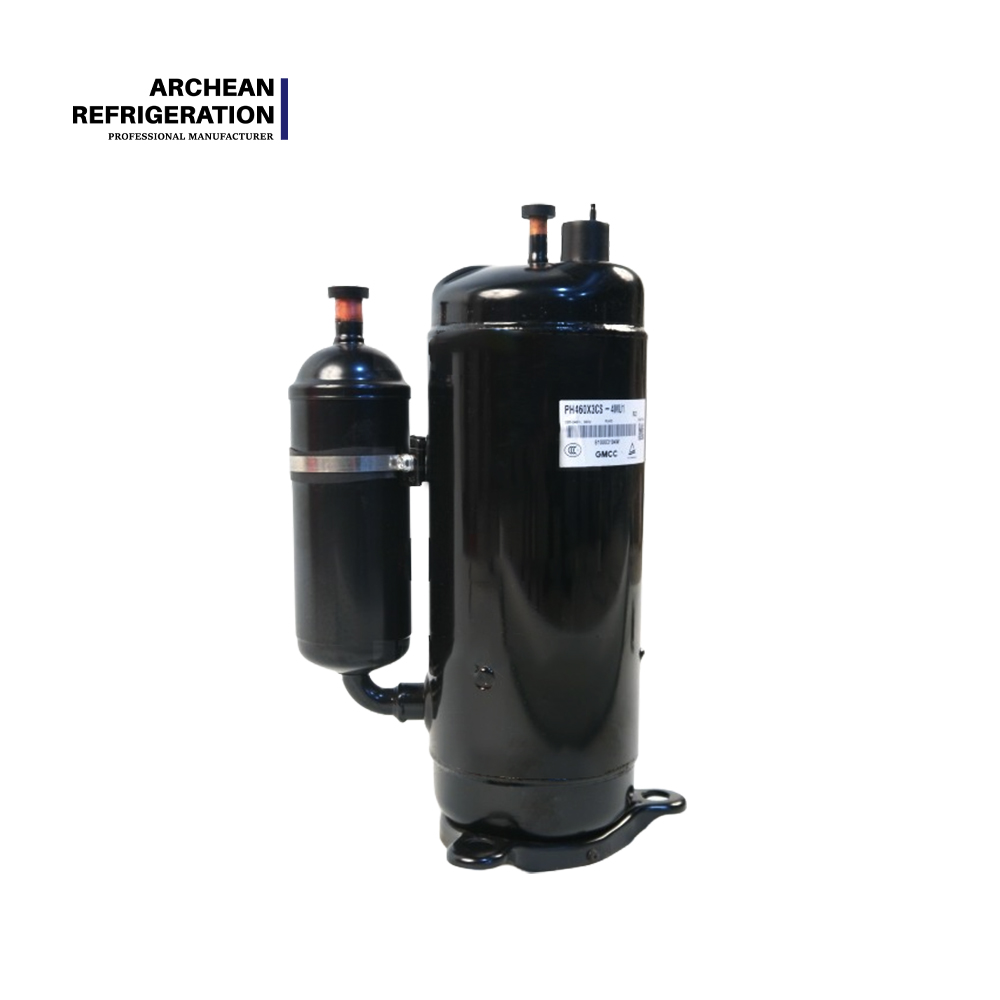

Environmentally friendly refrigerant HSM150V4UDZ、HSM165V4UDZ、HSM200V4UDZ、HSM215V4UDZ

Environmentally friendly refrigerant PH180X1C-8DZD2 PH195X2C-8FTC PH200X2C-8FTC PH215X2C-8FTC GMCC

Environmentally friendly refrigerant HSM150V4UDZ、HSM165V4UDZ、HSM200V4UDZ、HSM215V4UDZ

Name: Environmentally friendly refrigerant HSM150V4UDZ、HSM165V4UDZ、HSM200V4UDZ、HSM215V4UDZ
Brand: GMCC
Rating: 5.0 (6 reviews)

The GMCC HSM series is an SM-platform rotary fixed-speed compressor specifically designed for R22 refrigerant, adapted for 1.5-2.5HP residential air conditioners and various refrigeration equipment. It is widely used in household appliances, commercial refrigeration and heating, and mobile refrigeration, covering air conditioners, heat pump heating, heat pump water heaters, freezers and refrigerators, dehumidifiers, tumble dryers, and more. Renowned for its compact size, lightweight design, and high energy efficiency, the HSM series is an ideal choice for OEM mass production of residential air conditioners.

Model:
HSM150V4UDZ、HSM165V4UDZ、HSM200V4UDZ、HSM215V4UDZ
Brand:
GMCC

Availability:

Quantity:



Inquire Add to Basket

Product Description

Group A — HSM150V4UDZ / HSM165V4UDZ Scroll Compressor Product Manual

I. Positioning

The HSM150V4UDZ and HSM165V4UDZ are two fixed-speed scroll compressors within the GMCC HSM series, targeting 1.5–1.8 HP residential air conditioning and small refrigeration equipment. Both models use R22 refrigerant and single-phase 220-240V/50Hz power supply. With compact lightweight design, high reliability, and low-noise operation as core features, they are the main choices for OEM batch matching and aftermarket replacement.

Feature Dimension	HSM150V4UDZ	HSM165V4UDZ
Displacement	15.1 cm³	16.4 cm³
Cooling Capacity	2,675 W (9,127 Btu/h)	2,845 W (9,710 Btu/h)
COP	2.96	3.12
Power Supply	220-240V/1/50Hz	220-240V/1/50Hz
Refrigerant	R22	R22
Suction Connection	1/2"	1/2"
Discharge Connection	3/8"	3/8"
Net Weight	~12.3 kg	~12.5 kg

II. Detailed Overview

Feature: Both compressors adopt GMCC's mature SM-platform fixed-speed scroll structure. Scroll wraps are precision-machined with optimized internal design. High-current-capacity integrated terminals and laser-welded housing ensure product reliability and safety. Factory-precharged with SUNISO 4GSD / NM56EP refrigerant oil for direct installation. HSM150V4UDZ operating current is 4.85 A, locked-rotor current 26 A, max operating current 6.66 A, noise level controlled below 70 dB.

Advantage: This group centers on compact lightweight and high energy efficiency. Net weight is only 12.3–12.5 kg, overall height 292–300 mm—among the lightest in their displacement class. HSM165V4UDZ achieves COP 3.12; HSM150V4UDZ COP 2.96, leading energy performance among同级 fixed-speed R22 compressors. The proven SM platform undergoes rigorous durability testing and engineering validation, maintaining卓越 reliability even under high-frequency operation.

Benefit: For OEM空调 manufacturers, the lightweight design means lower logistics costs and more efficient assembly; compact dimensions free up more space in outdoor unit layouts. For the aftermarket, standardized interfaces and a mature platform provide plug-and-play replacement without additional modifications. For end users, R22's high efficiency and scroll technology's long-life design reduce long-term operating costs while ensuring cooling performance.

III. Application Scenario Quick-Selection Guide

Application Scenario	Recommended Model	HP	Key Advantage
1.5 HP Residential A/C	HSM150V4UDZ	1.5	2.67kW, COP 2.96
1.5–1.8 HP Residential A/C	HSM165V4UDZ	1.5–1.8	2.84kW, COP 3.12
Window/Portable A/C	HSM150V4UDZ	1.5	Lightweight 12.3kg
Dehumidifiers/Small Cold Storage	HSM165V4UDZ	1.5–1.8	Compact size, easy integration

Selection Tip: For standard 1.5 HP, choose HSM150V4UDZ; for higher efficiency, choose HSM165V4UDZ (COP 3.12).

IV. Frequently Asked Questions

Q1: What is the difference between HSM150V4UDZ and HSM165V4UDZ?

HSM150V4UDZ: displacement 15.1 cm³, cooling 2,675 W, COP 2.96. HSM165V4UDZ: displacement 16.4 cm³, cooling 2,845 W, COP 3.12. HSM165V4UDZ offers ~6.4% higher cooling and ~5.4% better efficiency.

Q2: What refrigerant and oil do these compressors use?

Both use R22 refrigerant, factory-precharged with SUNISO 4GSD / NM56EP mineral oil. R22 systems must use mineral oil—do NOT mix with POE ester oil.

Group B — HSM200V4UDZ / HSM215V4UDZ Scroll Compressor Product Manual

I. Positioning

The HSM200V4UDZ and HSM215V4UDZ are two fixed-speed scroll compressors within the GMCC HSM series, targeting 2.0–2.5 HP residential and commercial refrigeration equipment. Both use R22 and single-phase 220-240V/50Hz. The HSM200V4UDZ, with its industry-leading COP of 4.35 W/W, stands as the energy efficiency benchmark of the HSM series. This group features high-efficiency pump design, high power-density motor, and excellent cooling capacity for applications demanding higher efficiency and output.

Feature Dimension	HSM200V4UDZ	HSM215V4UDZ
Displacement	~18.9 cm³	21.4 cm³
Cooling Capacity	3,895 W (13,290 Btu/h)	3,700 W (12,617 Btu/h)
COP	4.35 W/W (max)	3.05
Power Supply	220-240V/1/50Hz	220-240V/1/50Hz
Refrigerant	R22	R22
Noise Level	<50 dB	<50 dB
Net Weight	~12.7 kg	~12.7 kg

II. Detailed Overview

Feature: HSM200V4UDZ employs a high-performance pump body and high power-density motor. Optimized scroll profiles and internal flow channels achieve an exceptional COP of 4.35 W/W. HSM215V4UDZ delivers 3,700 W cooling from a large 21.4 cm³ displacement. Both feature intelligent control for low-noise, low-torque-ripple operation, noise below 50 dB—industry-leading quietness. High-current integrated terminals and laser-welded housing ensure safety and reliability.

Advantage: This group centers on ultra-high efficiency and ultra-low noise. HSM200V4UDZ's COP 4.35 W/W is the highest in the HSM series, far exceeding同级 fixed-speed R22 compressors. Sub-50 dB noise control makes them ideal for acoustically sensitive environments. Compact 12.7 kg net weight and 292–300 mm height enable flexible system integration. HSM200V4UDZ also features miniaturized design for space-constrained cooling systems like medical devices.

Benefit: For commercial A/C manufacturers, HSM200V4UDZ's COP 4.35 means every 1 kW consumed produces 4.35 kW of cooling—significantly reducing end-user electricity bills. For medical and precision instrument cooling, sub-50 dB ultra-low noise and intelligent control ensure a quiet, stable operating environment. For projects requiring higher capacity, HSM215V4UDZ's 21.4 cm³ displacement and 3,700 W output provide ample cooling reserve.

III. Application Scenario Quick-Selection Guide

Application Scenario	Recommended Model	HP	Key Advantage
2 HP Residential/Commercial A/C	HSM200V4UDZ	2.0	COP 4.35, noise <50dB
2.5 HP Commercial A/C	HSM215V4UDZ	2.5	21.4cm³ displacement, 3.7kW
Medical Equipment Cooling	HSM200V4UDZ	2.0	Miniaturized, intelligent control
Precision Instrument Cooling	HSM200V4UDZ	2.0	Ultra-low noise, stable operation

Selection Tip: For 2 HP with ultimate efficiency, choose HSM200V4UDZ; for 2.5 HP high capacity, choose HSM215V4UDZ.

IV. Frequently Asked Questions

Q1: What is the COP of HSM200V4UDZ?

HSM200V4UDZ achieves a COP of up to 4.35 W/W—the highest in the HSM series. Cooling capacity is 3,895 W with displacement ~18.9 cm³.

Q2: What are the noise levels of these compressors?

Both models operate below 50 dB, utilizing intelligent control for low-noise, low-torque-ripple operation—ideal for acoustically sensitive environments.

Q4: What special scenarios are these compressors suitable for?

HSM200V4UDZ is especially suited for micro-cooling systems, medical equipment, and military equipment where space is limited and noise/reliability requirements are high. HSM215V4UDZ is suitable for 2.5 HP commercial air conditioning and large refrigeration equipment.

Quick Selection

Your Need	Pick This	Why
1.5 HP standard residential A/C	HSM150V4UDZ	2.67kW, COP 2.96, only 12.3kg
1.5–1.8 HP, want best efficiency	HSM165V4UDZ	COP 3.12, +6.4% cooling vs 150
2 HP, energy is your #1 priority	HSM200V4UDZ	COP 4.35 — the series benchmark
2.5 HP commercial / high capacity	HSM215V4UDZ	21.4cm³, 3.7kW, rock-solid reliability
Medical, lab, or noise-sensitive	HSM200V4UDZ	<50 dB, intelligent control, miniaturized

All models: R22, 220-240V/50Hz, factory-charged mineral oil, plug-and-play installation.

Still unsure?Please share your application requirements with us, and our technical team will provide the optimal quotation at the earliest opportunity.
