How to Select a Refrigeration Compressor?

Comprehensive Analysis of Refrigeration Compressors: From Core Principles to Industrial Applications

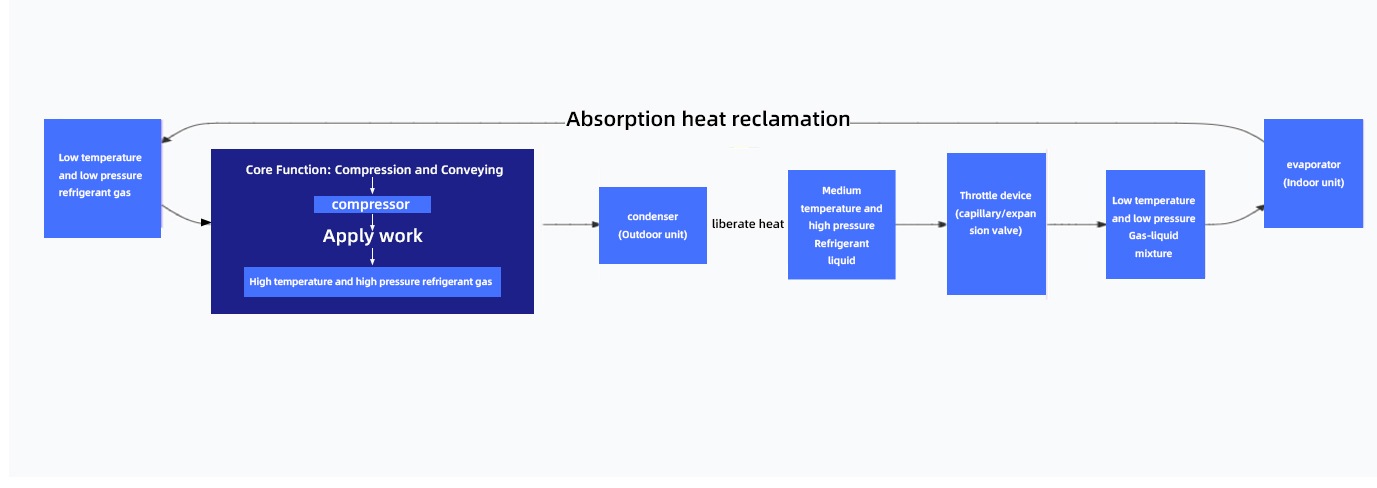

Refrigeration compressors are often referred to as the “heart” of refrigeration systems. Their role is to draw in low-temperature, low-pressure refrigerant vapor and convert it into high-temperature, high-pressure gas through compression, thereby driving the entire heat exchange process. Depending on the required cooling capacity and operating conditions, various technical approaches have been developed for compressors.

I. Positive Displacement Compressors: The Steady Foundation of the Industry

Positive displacement compressors increase gas pressure by reducing the volume of the compression chamber. Based on their operating mechanisms, they can be categorized into four types:

1. Reciprocating Compressors – The classic “all-rounder”

  - Working Principle: Gas is drawn in and compressed using the reciprocating motion of a piston within the cylinder.

  - Advantages: Highly mature technology, simple construction, and low cost. They can handle a wide range of pressures, from small household freezers to large industrial refrigeration systems.

  - Limitations: Many moving parts (valves, connecting rods, crankshafts), resulting in frequent repairs. However, their high pressure ratio makes them efficient for such applications.

  - Applications: Household refrigerators, commercial supermarket display cabinets, ultra-low temperature laboratories, ice makers.

  - More info:https://www.archeanhvacr.com/GMCC-COMPRESSOR-pl49079107.html

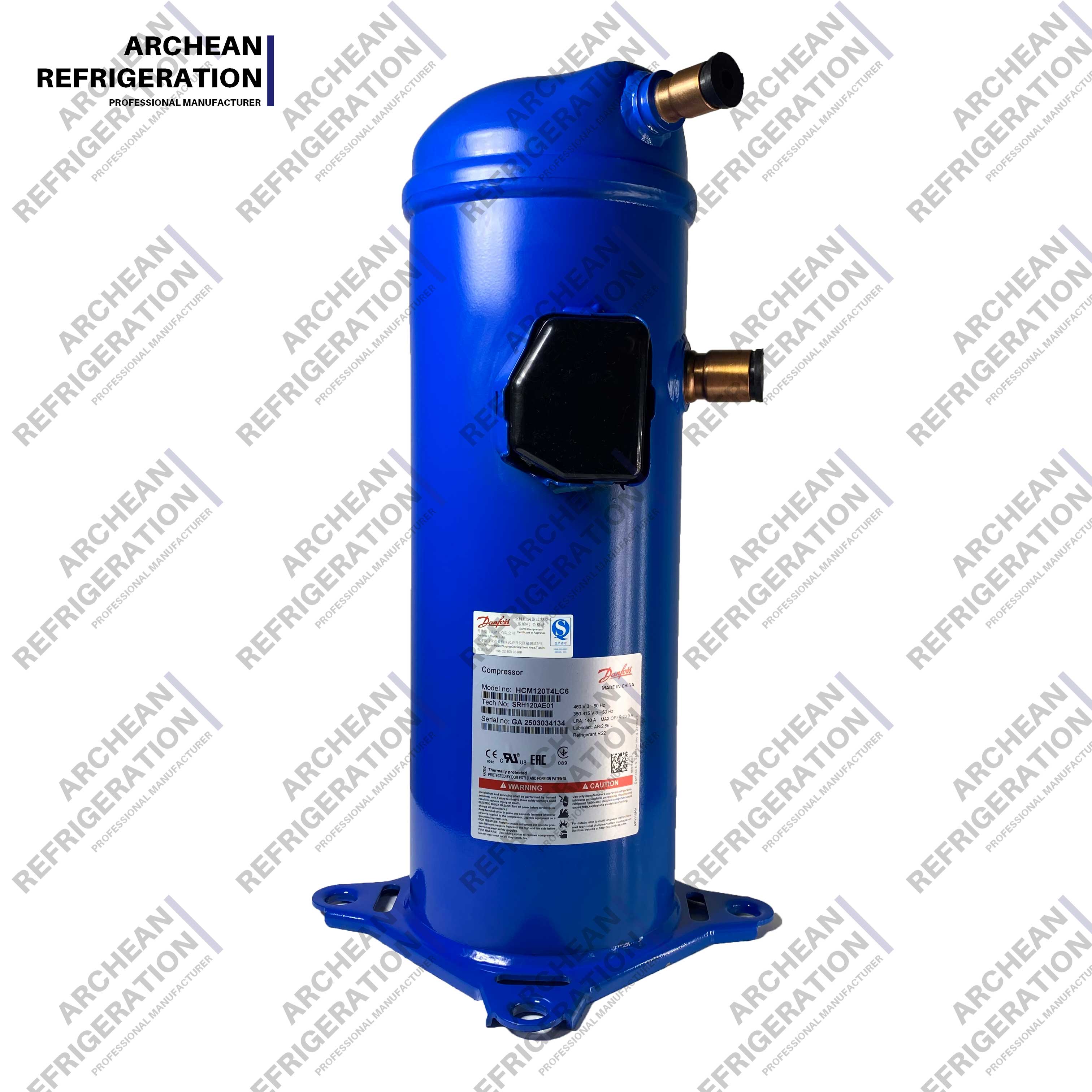

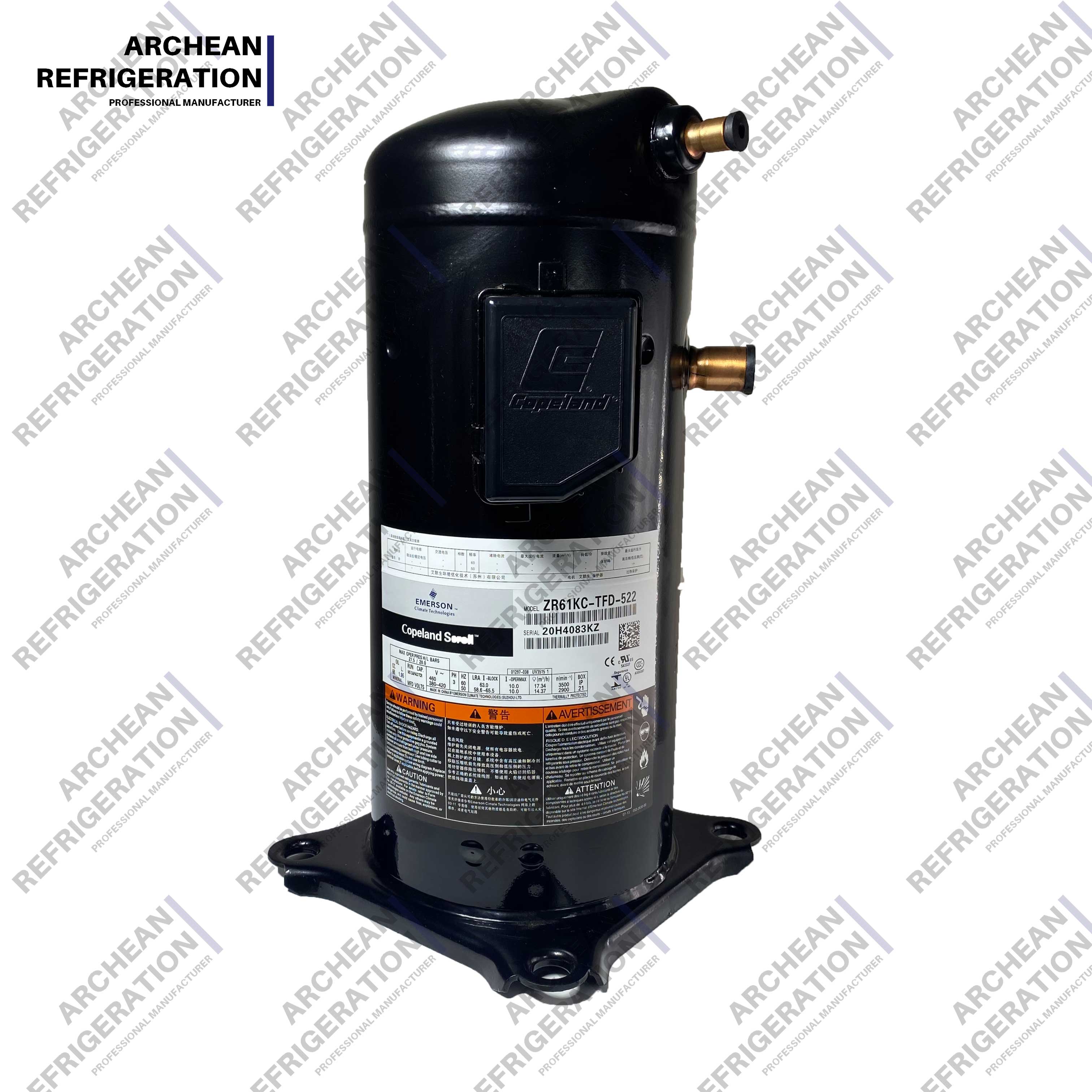

2. Scroll Compressors – The “Silent Kings” of Air Conditioning

  - Working Principle: Consist of a fixed stator and a rotating rotor that creates a gradually shrinking compression chamber.

  - Advantages: Extremely quiet operation due to the sealed chamber formed by the rotating components. No suction valves required. Hitachi’s scroll compressors excel in efficiency and reliability.

  - Applications:Ideal for household central air conditioning systems, commercial chillers, and precision data center cooling.

  - More info: https://www.archeanhvacr.com/DANFOSS-COMPRESSOR-pl42917107.html

3. Screw Compressors – The Powerhouses of Medium to Large Systems

  - Working Principle: Two intermeshing rotors rotate within the casing, continuously performing suction, compression, and discharge. They are durable and resistant to liquid hammer, with adjustable capacity via valves.

  - Advantages: Continuous gas flow, low vibration, resistance to liquid hammer, and adjustable energy output.

  - Applications: Chemical industries, hospital/mall air conditioning systems, food freezing processes, large cold storage facilities.

  - More info: https://www.archeanhvacr.com/HITACHI-COMPRESSOR-pl44979107.html

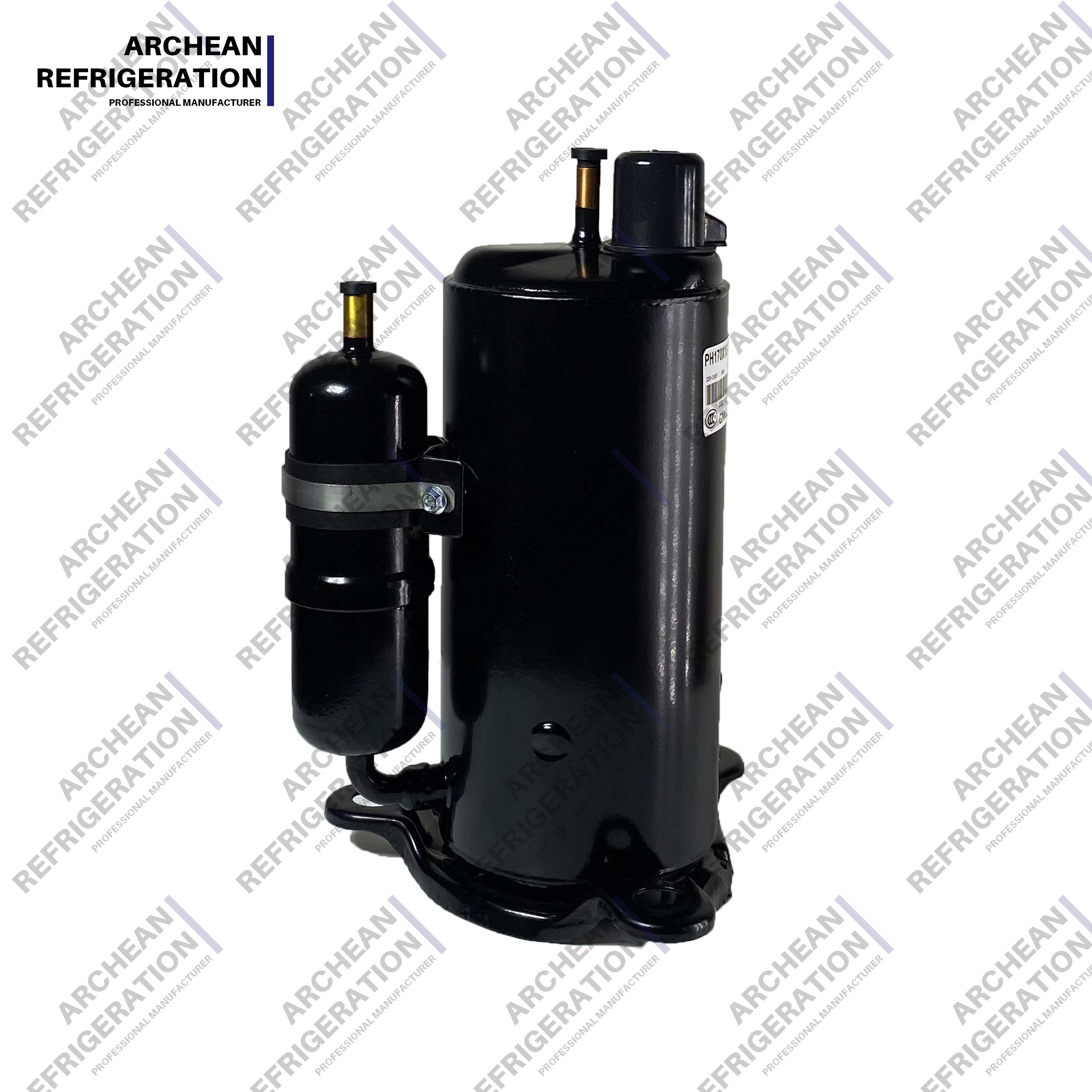

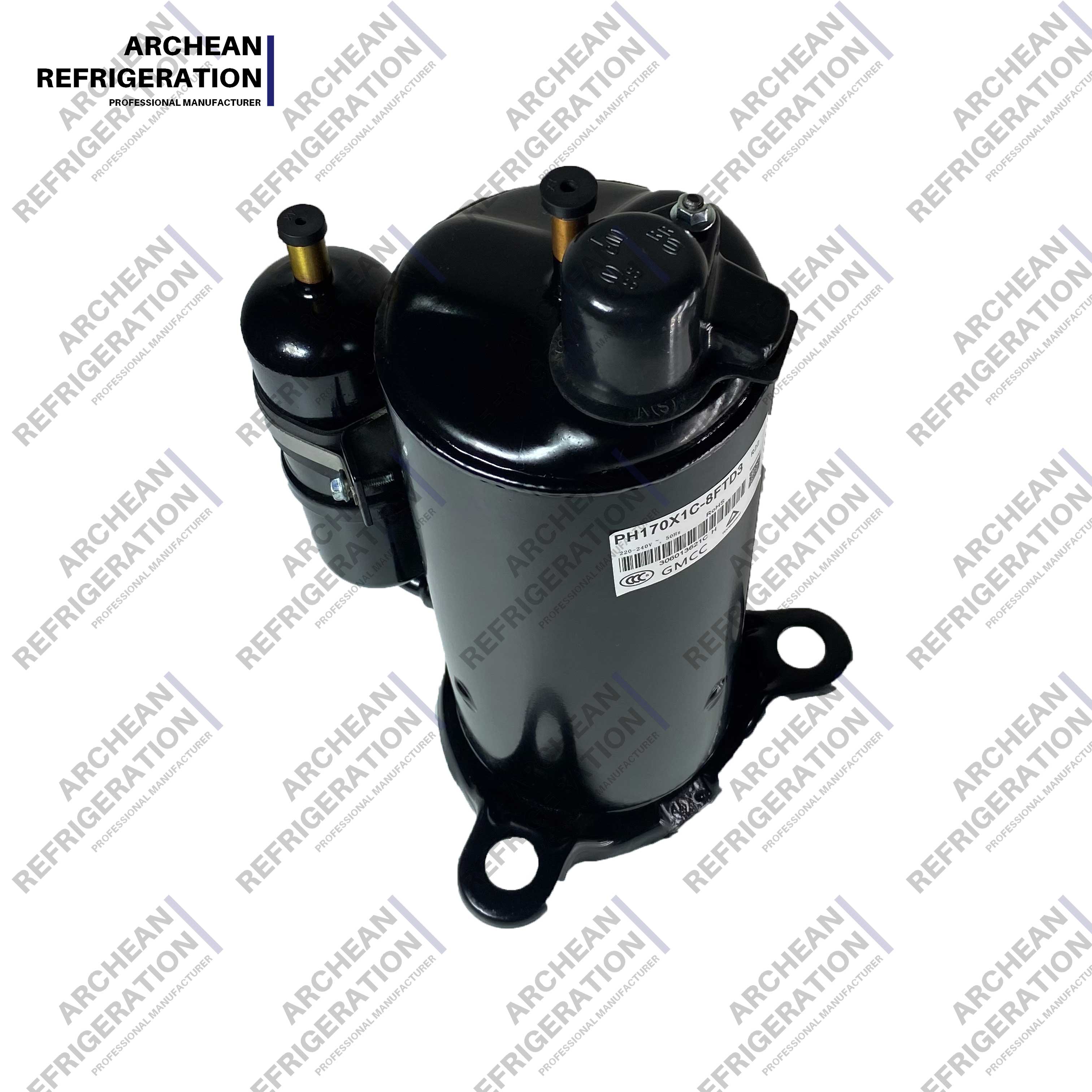

4. Rotary Compressors – The Power Source for Household Air Conditioners

  - Working Principle: Rotors rotate eccentrically within cylindrical cylinders.

  - Advantages: Few moving parts, high efficiency, and compact size. Over 90% of household wall-mounted and cabinet air conditioners use this type of compressor.

  - Applications: Commonly used in household air conditioning systems.

  - More info: https://www.archeanhvacr.com/COPELAND-COMPRESSOR-pl44917107.html

II. Dynamic Compressors: The Heavy-Hitting Engines of Refrigeration

Unlike positive displacement compressors, dynamic compressors don’t change the volume of the gas but instead increase its velocity and convert kinetic energy into pressure energy.

1. Centrifugal Compressors

  - Working Principle: Refrigerant is forced outward by centrifugal force generated by rapidly rotating impellers.

  - Advantages: Very large capacity, high speed, few moving parts, long maintenance intervals. Their COP is highest among all compressors when operating at full capacity.

  - Applications:Used in large-scale cooling systems, airports, subway stations, and industrial facilities.

  - More info: https://www.archeanhvacr.com/DAIKIN-COMPRESSOR-pl43917107.html

III. Conclusion: How to Choose the Right Compressor?

When selecting a compressor for a specific application, consider the following:

- Low cooling capacity (household/small commercial): Choose rotary or scroll compressors for quieter operation and better value.

- Medium cooling capacity (cold storage/medium-sized buildings): Semi-hermetic reciprocating or screw compressors are ideal for durability and ease of maintenance.

- High cooling capacity (large buildings/industrial applications): Centrifugal compressors provide optimal efficiency.

For the latest product catalogs and wholesale prices, please feel free to contact us. We’re here to assist you with everything you need. Looking forward to working together for mutual success.
