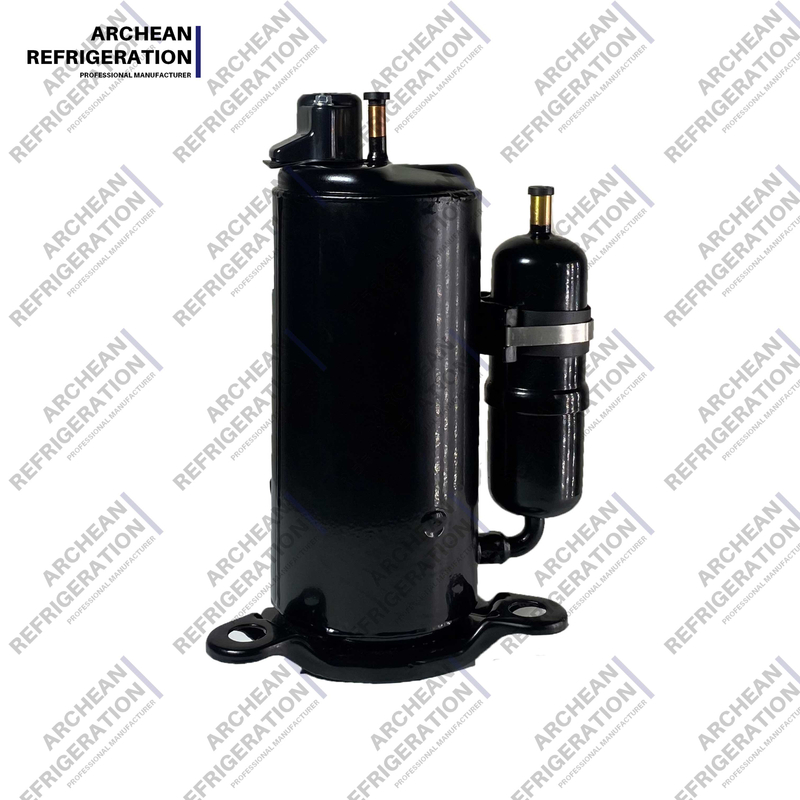

Efficient Refrigeration Compressor GMCC PH108X1CY-8BGD2 PH120X1CY-8BGD2 PH135X1C-8DZD2 PH150X1C-8DZD2 PH155X1C-8DZD2

Efficient Refrigeration Compressor GMCC PH108X1CY-8BGD2 PH120X1CY-8BGD2 PH135X1C-8DZD2 PH150X1C-8DZD2 PH155X1C-8DZD2

Name: Efficient Refrigeration Compressor GMCC PH108X1CY-8BGD2 PH120X1CY-8BGD2 PH135X1C-8DZD2 PH150X1C-8DZD2 PH155X1C-8DZD2
Brand: GMCC
Rating: 5.0 (48 reviews)

Brand: Toshiba/Meizhi
Type: Rotary/Rolling Piston
Power: 0.735kW (standard cooling capacity 1200W)
Voltage: 220V/50Hz
Displacement: Fixed displacement
Scope of application: Air conditioners, refrigerators, supporting air cooling and freezing modes, used for 1-horsepower air conditioning systems, and can also be extended to industrial chillers, etc. ‌

Model:
PH108X1CY-8BGD2 PH120X1CY-8BGD2 PH135X1C-8DZD2 PH150X1C-8DZD2 PH155X1C-8DZD2
Brand:
GMCC

Availability:

Quantity:



Inquire Add to Basket

Product Description

GMCC PH Series: High-Performance Inverter Rotary Compressors

The GMCC PH Series comprises high-performance inverter rotary compressors specifically designed for residential multi-split systems, packaged air conditioners, and heat pump water heaters. Renowned for their high energy efficiency, low noise, wide operating range, and reliability, these compressors are widely adopted as core components by air conditioning manufacturers both in China and globally.

Core Features and Advantages

Advanced Inverter Technology

Utilizes DC inverter control to smoothly regulate refrigerant output, enabling rapid cooling/heating and precise temperature control.

Wide Operating Range

Optimized for heat pump applications, ensuring stable operation across an extremely broad range of ambient temperatures. This guarantees reliable heating capacity even in severe winter conditions and efficient cooling performance during hot summers.

Optimized Internal Structure

Incorporates a high-efficiency motor and an optimized pump mechanism, resulting in minimal frictional losses and high mechanical efficiency.
Specifically designed and optimized for next-generation environmentally friendly refrigerants like R32, ensuring safer and more reliable operation.

Low Noise and Vibration

Features precise dynamic balancing calibration and vibration damping design, resulting in smooth operation with low noise and vibration levels. This significantly enhances the user experience of the final air conditioning products.

High Reliability

Manufactured using high-quality materials and precision engineering processes, ensuring durability and longevity even under long-term, high-frequency operation.

Model Differences and Selection Guide

The primary difference between the five models in this series lies in their displacement volume and cooling capacity, offering a stepped capacity range for precise selection based on your specific requirements:

PH108X1CY-8BGD2: Displacement approx. 108 cm³, suitable for small to medium cooling/heating demands.
PH120X1CY-8BGD2: Displacement approx. 120 cm³, offers moderate capacity for flexible applications.
PH135X1C-8DZD2: Displacement approx. 135 cm³, a mainstream choice for commercial-residential models.
PH150X1C-8DZD2: Displacement approx. 150 cm³, provides higher cooling/heating capacity.
PH155X1C-8DZD2: Displacement approx. 155 cm³, the highest capacity model in the series.

Typical Application Scenarios

Residential and Light Commercial Air Conditioning: Split air conditioners (wall-mounted, floor-standing), residential central air conditioning (multi-split systems), packaged air conditioners.
Heat Pump Water Heaters
Light Commercial Refrigeration: Commercial display cases (beverage coolers, deli counters, ice cream freezers).
Chiller Units: Small modular chiller units.

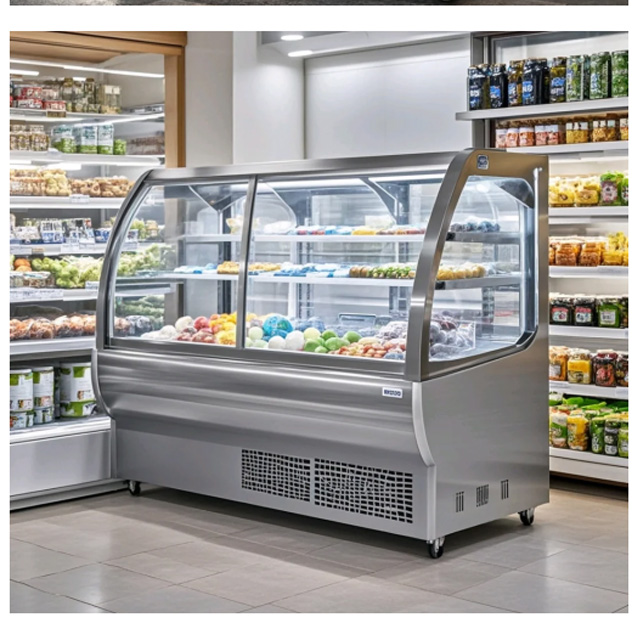

Refrigerated display case

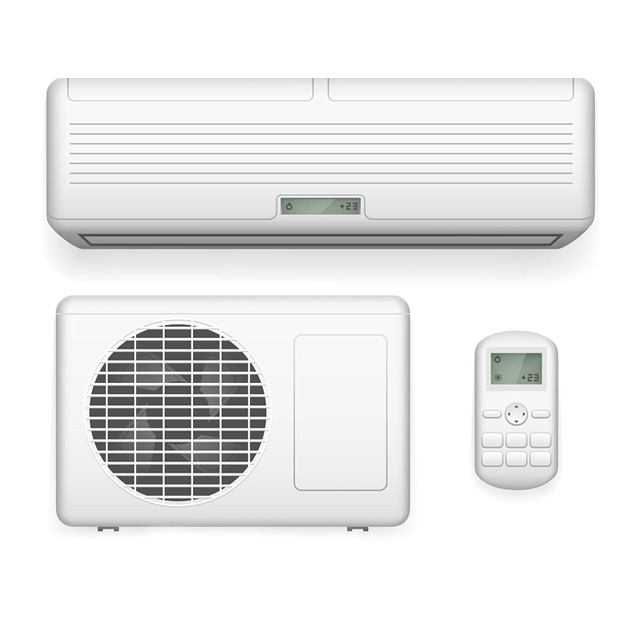

Light commercial air conditioning

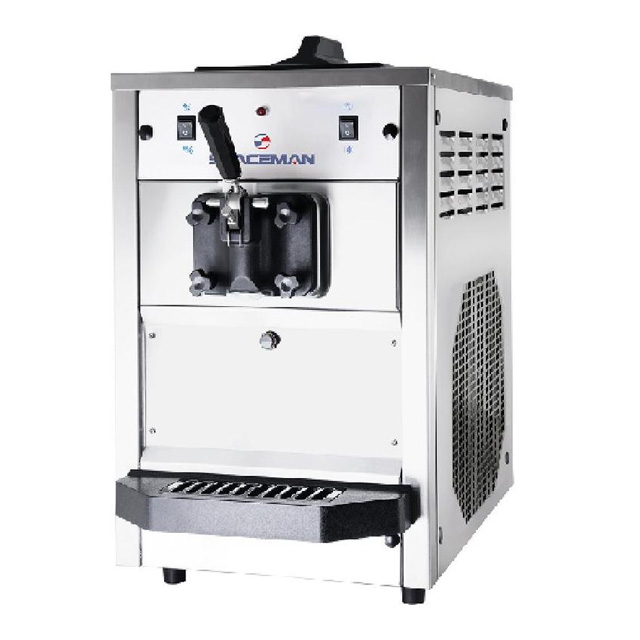

Ice cream machine
