Home » Products » Refrigeration Compressor » DANFOSS COMPRESSOR » DANFOSS High-Efficiency R410A Air Conditioning Refrigerator Parts Including HLH061T4/HLJ072T4/HLJ075T4 /HLJ083T4

Copeland High-Efficiency R410A Air Conditioning Refrigerator Parts Including HLH061T4/HLJ072T4/HLJ075T4 /HLJ083T4

DANFOSS High-Efficiency R410A Air Conditioning Refrigerator Parts Including HLH061T4/HLJ072T4/HLJ075T4 /HLJ083T4

Name: DANFOSS High-Efficiency R410A Air Conditioning Refrigerator Parts Including HLH061T4/HLJ072T4/HLJ075T4 /HLJ083T4
Brand: DANFOSS
Rating: 5.0 (49 reviews)

Specially designed for low noise performance, it is very suitable for various industries such as hotels, restaurants, and food and beverage factories. Durable copper tube materials and wooden box packaging are used to ensure reliable quality and safe transportation. Suitable for cooling equipment and air conditioning

Model:
HLH061T4/HLJ072T4/HLJ075T4 /HLJ083T4
Brand:
DANFOSS

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description of Danfoss Maneurop HL/HT Series Scroll Compressors

1. Series Overview

The HL/HT series are highly efficient and reliable scroll compressors launched by Danfoss, widely used in various commercial and industrial refrigeration systems. Among them:

HLtypically stands for Low Temperatureapplications, such as freezers, frozen display cases, cold storage warehouses, quick freezers, etc., with a lower evaporation temperature range.
HTtypically stands for High Temperatureapplications, such as air conditioning and heat pumps.
HLH061T4, HLJ072T4, HLJ075T4, and HLJ083T4- all belong to the HL series, meaning they are compressors for low-temperature applications.

2. Core Technology and Features

Scroll Technology:Utilizes a combination of a fixed scroll and an orbiting scroll that moves around it to compress gas continuously and smoothly. Compared to traditional piston compressors, it offers the following significant advantages:

High Efficiency and Low Energy Consumption:The compression process has almost no clearance volume, resulting in high volumetric efficiency and an excellent Coefficient of Performance (COP).
Smooth Operation, Low Noise and Low Vibration:Fewer moving parts and excellent dynamic balance provide a quieter environment for users.
High Reliability:Reduced number of wearable parts and less wear contribute to a longer service life.
Excellent Resistance to Liquid Slugging:Better capable of handling minor liquid refrigerant return issues, protecting the compressor.

Integrated Protection Module (IPM):These models typically integrate an intelligent protection module that monitors the compressor's operating status (such as motor temperature, discharge temperature, current, etc.) in real-time. It provides comprehensive protection against overload, phase loss, phase reversal, voltage abnormalities, etc., ensuring operational safety.
Wide Operating Range:The design allows for stable operation within a broad range of evaporation and condensation temperatures, adapting to different operational requirements.
Environmental Refrigerant Compatibility:This series of compressors is widely compatible with common HFC refrigerants like R404A, R507, and R134a. Furthermore, some models are suitable for environmentally friendly Hydrofluoroolefin (HFO) refrigerants such as R448A and R449A, meeting environmental regulations.

3. Typical Applications

These low-temperature compressors are ideally suited for:

Commercial Refrigeration:Supermarket freezer islands, frozen display cases, and backroom cold storage freezers.
Food Processing and Cold Storage:Small cold storage rooms, quick-freezing tunnels, and ice makers.
Industrial Refrigeration:Process cooling applications.

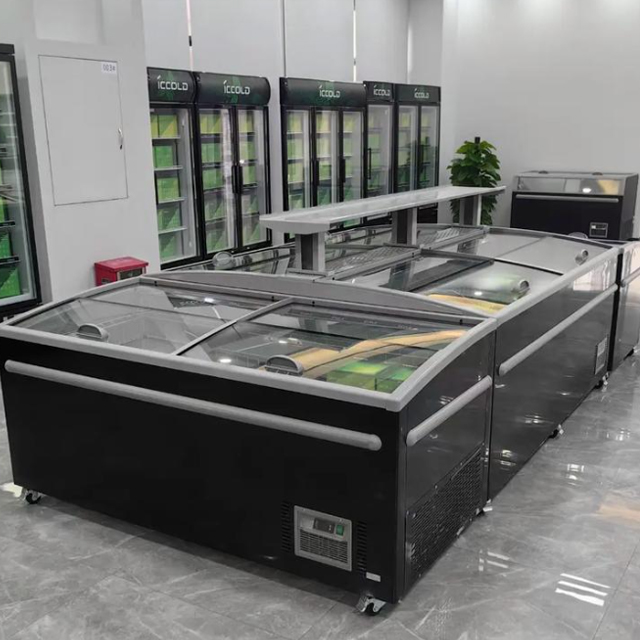

Frozen display cabinet

cold storage

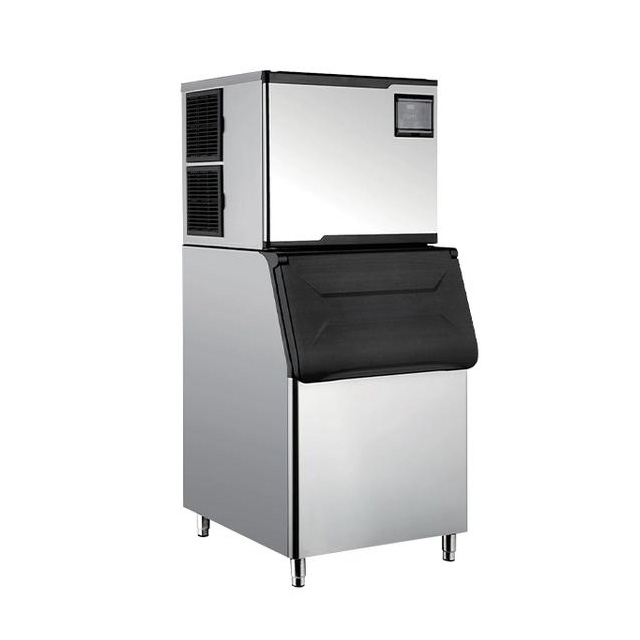

Ice making machine.

Key Specifications Summary

(For typical operating conditions, e.g., Evap. Temp: -25°C, Cond. Temp: +40°C, using R404A/R507)

Model	Refrigerant	Displacement (m³/h)	Nominal Cooling Capacity (kW) *	Power Supply (3Ph, 50Hz)
HLH061T4	R404A / R507	~ 8.1	Approx. 4.5 - 5.5	380-415V
HLJ072T4	R404A / R507	~ 9.5	Approx. 5.5 - 6.5	380-415V
HLJ075T4	R404A / R507	~ 9.9	Approx. 6.0 - 7.0	380-415V
HLJ083T4	R404A / R507	~ 10.9	Approx. 6.5 - 7.5	380-415V

Note:The Nominal Cooling Capacity is highly dependent on specific operating conditions (evaporation temperature, condensation temperature, etc.). The values provided are approximate and for reference.

RELATED PRODUCTS

DANFOSS Compressor MT/MTZ28 JE Piston Freezing Unit for Refrigerator Compressors R134a R507 Heat Exchange Parts

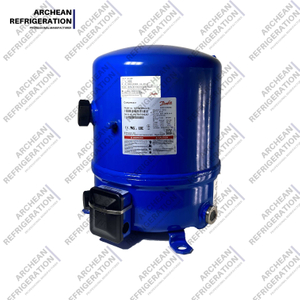

Refrigeration Maneurop Hermetic Compressor Condensing Unit MT/MTZ 18 JA DANFOSS

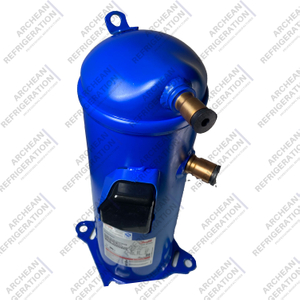

For DANFOSS HLM068T4 HLM072T4 HLM075T4 HLM081T4 R22 MANEUROP SERIES COMPRESSOR for REFRIGERATION & HEAT EXCHANGE PARTS
