Can small piping errors cause costly refrigeration failures? Poorly prepared copper tubes may lead to leaks, rework, and reduced system reliability. Copper Tube Tools help technicians cut, bend, and shape tubing accurately. This guide explores essential tools, selection tips, and installation practices for better refrigeration piping results.
Accurate cutting is the first step toward reliable refrigeration piping. Copper tubing must be cut to the required length while keeping the end reasonably square and free from damage. A suitable copper tube cutter helps technicians achieve a controlled cut without crushing the tubing. This is important because distorted tube ends can make subsequent deburring, flaring, expanding, or joining more difficult. A clean starting point also helps technicians maintain alignment during assembly.
After cutting, technicians should inspect the tube end and remove internal or external burrs as required. Burrs can restrict the internal flow area, introduce loose particles, or interfere with proper connection preparation. Excessive force during cutting may also deform thin-walled tubing, making the end harder to prepare correctly. The cutter should therefore match the tube diameter and material, and its cutting wheel should remain in good condition. Technicians should follow the tool manufacturer's instructions rather than forcing the cutter through the tube too quickly.
For businesses handling multiple installations, consistent cutting procedures can reduce material waste and improve productivity. Technicians should measure each pipe section carefully before cutting and avoid using damaged tube ends whenever they compromise the required connection. The finished cut should be checked before the next operation begins. These simple controls create a more dependable foundation for bending, flaring, or brazing and help prevent small preparation errors from affecting the entire piping assembly.
Copper tube bending tools allow technicians to form refrigerant lines around walls, equipment frames, and other installation obstacles. A suitable bender supports the tube during forming and helps control the bend radius. Without the correct tool, excessive force can flatten the tube, create wrinkles, or produce sharp bends. These defects may reduce the internal flow area and introduce unwanted stress into the piping system.
The appropriate bending method depends on tube diameter, wall thickness, material condition, and the space available for installation. Technicians should confirm the tool's supported dimensions and minimum bend radius before starting. They should also plan the pipe route to avoid unnecessary bends and keep service access clear. Where the system manufacturer specifies limits for pipe geometry or installation, those requirements should take priority over convenience.
Controlled bending is especially valuable when technicians need to produce repeatable layouts across multiple units. A suitable tool helps reduce trial-and-error adjustments and minimizes the risk of damaging expensive tubing. After forming, the technician should inspect the bend for flattening, creases, cracks, or other visible defects. Any damaged section should be evaluated against the applicable installation requirements before use. Consistent bending practices help improve pipe fit, reduce assembly difficulties, and support a neat, serviceable refrigeration installation.
Reliable connections depend on the preparation method used for the specific joint. Refrigeration piping may use flare fittings, brazed joints, or other approved connection designs. Each method has different preparation requirements, so technicians should not treat all copper tube tools as interchangeable. Flaring tools form a shaped tube end for a compatible flare fitting, while tube expanders prepare tubing for certain joining methods. The selected tool must match the connection design and the tubing specifications.
For flare connections, the tube end should be cut, deburred, and positioned correctly before forming. The finished flare should have a suitable shape and a smooth sealing surface, without visible cracks or uneven edges. For brazed joints, the tubing must be prepared according to the joining procedure, including correct fit, cleanliness, and alignment. An expander should only be used when the joining design allows it and the tool is suitable for the tube dimensions. Incorrect preparation can compromise the joint even when the final assembly appears secure.
Technicians should inspect each connection before proceeding to pressure or leak testing. They should also use the specified tightening method for flare fittings and avoid relying on excessive force to compensate for a poorly formed flare. A well-prepared joint reduces the likelihood of leakage and repeated disassembly. For HVAC contractors, standardizing these steps helps improve workmanship across teams and provides a more reliable basis for commissioning the completed refrigeration circuit.
Tip: Inspect every cut, bend, flare, and expanded section before assembly. Finding a defect early usually prevents more costly rework later.
Tube cutters and deburring tools are basic equipment for refrigeration piping work. A tube cutter creates a controlled cut, while a deburring tool removes sharp edges left after cutting. These tools serve different purposes, but both help prepare tubing for a reliable connection. Choosing the correct cutter depends on the tube diameter, wall thickness, working space, and expected frequency of use. Compact cutters may be useful in confined spaces, while larger models can suit broader installation work.
Technicians should inspect the cutting wheel regularly and replace it when it becomes worn or damaged. A dull wheel can require more force, increase the risk of deformation, and make accurate cutting harder. After cutting, deburring should remove unwanted material without excessively thinning or damaging the tube wall. Loose copper particles should be kept out of the refrigerant circuit. Clean handling practices are important because debris can affect sensitive components or create restrictions.
For procurement teams, tool durability and replacement-part availability are worth considering alongside purchase price. Contractors who complete many installations may benefit from standardized cutter models and a regular inspection schedule. Technicians should also carry suitable measuring tools to confirm lengths before cutting. These practices help reduce tubing waste and keep preparation quality consistent across different job sites. Although cutters and deburring tools are relatively simple, their condition and correct use influence every connection prepared afterward.
Flaring tools create a shaped end on copper tubing so it can connect to a compatible flare fitting. A correctly formed flare provides the intended sealing surface when assembled according to the equipment manufacturer's instructions. If the flare is uneven, cracked, or incorrectly sized, the connection may leak. Tool selection should account for the required flare type, tube diameter, material, and connection standard. A tool intended for one flare design should not automatically be used for another.
Before flaring, technicians should measure and cut the tube, remove burrs, and position the tubing at the correct projection. The tube must remain properly aligned in the tool during forming. Excessive pressure or incorrect positioning can create an uneven surface or damage the tube end. After forming, the technician should inspect the flare for visible defects and confirm that its dimensions suit the fitting. Assembly torque should follow the specified requirements rather than relying on guesswork.
For businesses purchasing flaring equipment, product descriptions should clearly state supported tube sizes and flare types. Buyers should also consider adjustment features, ease of operation, durability, and availability of replacement parts. A reliable tool helps produce repeatable results, but it does not remove the need for technician training and inspection. Standard procedures make it easier to maintain consistent workmanship across installation teams and reduce the risk of repeated leak repairs.
Tube expanders enlarge the end of compatible copper tubing so another section can fit inside it during an approved joining process. This technique can help create a compact connection and may reduce the need for certain fittings. However, expanding is not suitable for every piping design. Its use depends on the joining method, tube dimensions, material condition, and applicable installation instructions. Technicians must confirm that the tool is designed for the tubing they intend to prepare.
A suitable expander should form the tube without excessive stretching, splitting, or uneven deformation. The technician should select the correct size and follow the tool manufacturer's operating procedure. After expansion, the joint should be checked for fit, alignment, and visible damage before joining. If the tubing becomes distorted or develops cracks, it should not be accepted simply because the pieces can still be assembled. The completed joint must undergo the checks required by the relevant service procedure.
Purchasers should compare expander specifications rather than relying on product names alone. Important factors include supported tube diameters, operating method, replacement parts, and suitability for the intended joining process. Training is equally important because tool quality cannot compensate for incorrect technique. When used appropriately, tube expanders can support repeatable preparation and efficient installation. Their value comes from matching the tool to the application and maintaining control throughout the process.
Note: Flaring, expanding, and brazing are different operations. Always confirm the required connection method before selecting a copper tube tool.
Good piping work begins before the first cut. Technicians should review the equipment layout, connection locations, required pipe dimensions, and manufacturer instructions. Planning the route helps identify obstacles and reduces unnecessary bends or joints. It also allows technicians to estimate material requirements more accurately, reducing waste and the chance of running short during installation. Where service access is important, the pipe route should leave enough room for inspection and future maintenance.
Measurement errors can create problems throughout the assembly process. A pipe that is too short may require an additional connection, while an oversized section may be difficult to position neatly. Technicians should measure carefully and mark cutting points clearly before using a cutter. They should also account for the dimensions needed by flare fittings or approved joining methods. Before final assembly, the prepared pipe sections should be checked against the planned layout.
For larger projects, written measurements or installation drawings can improve coordination between technicians. Teams should agree on how pipe sections are labeled and checked before assembly. This is especially useful when several people prepare different sections of the same refrigerant circuit. A consistent planning process reduces unnecessary adjustments and helps supervisors review work before the system is closed or commissioned. Accurate planning does not eliminate every installation challenge, but it makes avoidable mistakes less likely.
Clean tubing is important because debris, moisture, and other contaminants can affect refrigeration system operation. During cutting and deburring, small copper particles may remain near the tube opening. Dirt can also enter when tubing is stored uncovered or handled carelessly. Technicians should use suitable cleaning and handling procedures to keep contaminants out of the circuit. Tube ends should remain protected until they are ready for assembly.
Cleanliness is especially important when preparing components for brazing or opening an existing refrigerant circuit. The exact cleaning and joining procedure depends on the equipment and applicable instructions. Technicians should not introduce unapproved chemicals or materials into the tubing. They should also avoid practices that push debris deeper into the system. Where required, appropriate procedures should be used to manage contamination and protect the internal surfaces.
A clean installation process supports more reliable commissioning and reduces the risk of problems caused by foreign material. Businesses can improve consistency by including tubing cleanliness in their installation checklists. Supervisors should verify that pipe ends are protected during storage and that prepared sections are inspected before connection. These controls are simple to implement and can prevent unnecessary troubleshooting after startup. Clean handling is therefore part of quality control, not merely a finishing step.
Visual inspection helps identify obvious problems before the refrigeration circuit is put into service. Technicians should check cut ends, bends, flares, expanded sections, and completed joints for visible damage or incorrect alignment. They should confirm that fittings match the connection type and that assembly follows the required procedure. A connection that looks acceptable may still leak, so visual inspection cannot replace the prescribed leak-testing method.
After installation or repair, the system should be tested according to the manufacturer's instructions and applicable regulations. The pressure-testing method, test medium, and allowable pressure must be appropriate for the equipment. Technicians should never exceed component ratings or use oxygen or compressed air in ways prohibited by the service procedure. Once the required tests are complete, the circuit should be evacuated and commissioned according to the specified requirements.
Documentation makes inspection more useful over time. Technicians should record test results, note any defects corrected, and identify outstanding concerns. If a leak appears later, these records help maintenance teams understand which checks were performed and where further investigation may be needed. Consistent inspection and testing reduce reliance on assumptions and provide a clearer basis for confirming installation quality.
Tip: Use a checklist that covers tube dimensions, connection preparation, cleanliness, alignment, and required leak testing. This makes quality checks easier to repeat across teams.
The first purchasing priority is compatibility. Copper tube tools must support the diameters and wall thicknesses used in the company's typical installations. Flaring tools must match the required connection design, while expanders must suit the tubing and joining method. Bending tools should support the intended bend radius without damaging the tube. Buying a tool based only on a broad product label can lead to unsuitable equipment and unnecessary returns.
Procurement teams should review technical specifications before requesting quotations. They should confirm the supported tube sizes, material requirements, operating method, and any limitations stated by the manufacturer. If technicians work on different equipment types, the company may need several tool sizes or specialized designs. A clear inventory of existing equipment helps prevent duplicate purchases and highlights missing tools.
Compatibility also includes the work environment. Technicians working in tight equipment spaces may need compact tools, while high-volume installation teams may prioritize fast adjustment and repeatable operation. In every case, the tool must remain suitable for the intended task. A carefully defined specification makes supplier comparisons more meaningful and helps the purchasing team avoid decisions based solely on price or appearance.
Copper tube tools may be used repeatedly across installation and maintenance jobs. Their durability therefore affects both operating cost and work consistency. Buyers should assess construction quality, adjustment mechanisms, wear parts, grip design, and ease of inspection. Tools that are difficult to adjust or maintain can slow technicians down and increase the risk of inconsistent results.
Ease of use is especially important when several technicians share equipment. Clear settings, secure clamping, and straightforward operating procedures can reduce setup errors. However, convenient features should not replace proper training. Technicians must understand how to position tubing, apply the tool, and inspect the finished result. The tool should also be suitable for the working space and the expected frequency of use.
Businesses should consider replacement-part availability and supplier support before placing bulk orders. A tool that can be serviced may offer better long-term value than one that must be discarded after a small component fails. Standardizing selected models can also simplify training, storage, and inventory management. The best purchase is one that meets the technical requirements, withstands expected use, and helps technicians produce consistent work without unnecessary complexity.
The cheapest tool is not always the most economical choice. Purchase price is only one part of the total cost, which can also include replacement parts, maintenance, downtime, training, and material waste. If a tool repeatedly creates poor flares or damaged bends, the resulting rework may outweigh any initial savings. Contractors should therefore evaluate tools based on the quality and consistency they support in everyday use.
A practical comparison should consider supported sizes, construction, expected service life, maintenance needs, warranty terms, and availability of technical assistance. Businesses should also estimate how often each tool will be used. High-frequency tools may justify greater investment in durability and repeatability, while occasional tasks may require a more basic solution that still meets all technical requirements.
Where possible, technicians should test shortlisted tools before large-scale purchasing. Their feedback can reveal whether adjustments are straightforward and whether the tool performs well in real working conditions. Procurement teams can then compare practical performance rather than relying only on marketing descriptions. This process supports more defensible purchasing decisions and helps businesses control costs while maintaining installation quality.
Tip: Ask suppliers to confirm supported tube sizes, connection types, spare-part availability, and warranty conditions in writing before placing a bulk order.
Correctly prepared piping helps the refrigeration circuit operate as designed. Damaged bends, poorly formed connections, and unsuitable pipe dimensions can create installation problems that affect system performance. The impact depends on the severity and location of the defect, as well as the system design. Copper tube tools help technicians control cutting, bending, and connection preparation, reducing the likelihood of avoidable defects.
However, piping quality is only one part of overall refrigeration performance. Correct pipe sizing, refrigerant charge, airflow, component selection, and commissioning procedures also matter. Technicians should follow the equipment manufacturer's specifications rather than assuming that neat-looking piping guarantees proper operation. After installation, they should verify the circuit using the prescribed inspection and testing methods.
A reliable piping installation also makes future maintenance easier. Correctly routed and supported tubing can improve access to service points and reduce unnecessary stress on connections. Clear workmanship and good records help later technicians understand the installation. These benefits are particularly useful for commercial sites where equipment downtime can disrupt daily operations. Good tool selection supports this outcome by making it easier to prepare pipe sections accurately and repeatably.

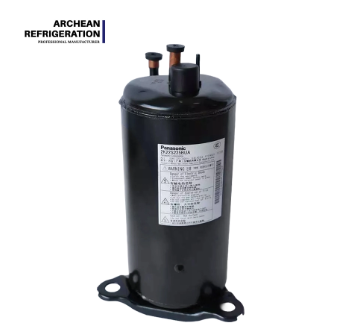

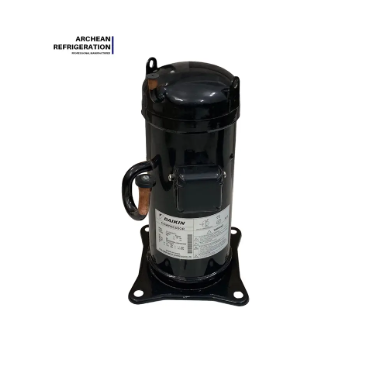

Copper tube tools prepare piping, but the wider system also depends on compatible refrigeration components. Compressors, filters, valves, and other parts must meet the equipment's design and operating requirements. A correctly prepared pipe connection cannot compensate for a component that is unsuitable for the refrigerant, capacity, or electrical supply. Technicians should verify component specifications before installation and follow the relevant commissioning procedures.
For example, Archean HVACR's refrigeration compressor and parts range provides a starting point for reviewing components used in cooling systems. Its listed products include Panasonic C hermetic compressors and Daikin variable-speed scroll compressors. These product pages can help buyers identify options for technical review. Exact model compatibility should always be confirmed against the original system specifications.
A compatible EK series drying filter may also be relevant when a system design calls for the corresponding component. Filter selection must match the refrigerant circuit and manufacturer requirements. The same principle applies to every replacement part: model names and product descriptions alone are not enough to establish compatibility.
For contractors and distributors, coordinating tubing preparation with correct component selection helps reduce installation risk. The objective is to ensure that every part of the refrigerant circuit works within the intended design. Proper tools, compatible components, and verified installation procedures together provide a stronger basis for dependable system operation.
Installation quality influences how often technicians need to revisit completed jobs. Poorly prepared tubing, damaged flares, or unsuitable bends may lead to leaks or other problems that require additional labor. Consistent tool use and inspection help reduce these avoidable errors. They also make it easier for supervisors to identify whether a problem arose during preparation, assembly, or commissioning.
Businesses can improve workmanship by establishing written procedures for measuring, cutting, deburring, bending, flaring, and expanding. Technicians should receive training on each tool they use and understand the limits of the equipment. Supervisors can periodically inspect completed work and review service records to identify recurring defects. If a particular tool repeatedly causes problems, the company should examine its condition, suitability, and operating method.
Long-term improvement depends on feedback. Recording rework, leak-test failures, damaged tubing, and tool maintenance helps managers determine where corrective action is needed. The findings may point to better training, improved purchasing specifications, or more frequent tool inspections. This evidence-based approach is more useful than replacing equipment without identifying the cause of poor results. Over time, consistent procedures can improve productivity, reduce material waste, and support better service outcomes.
Note: Copper tube tools improve preparation quality, but long-term reliability also depends on correct pipe sizing, compatible components, proper joining, and verified commissioning.
Copper Tube Tools improve cutting, bending, and connection preparation, helping reduce leaks and installation errors. Archean HVACR supplies compressors and refrigeration components, offering competitive pricing, product selection support, flexible delivery, and after-sales service for reliable cooling solutions.
A: Copper Tube Tools help technicians cut, bend, flare, and expand tubing for refrigeration piping installations.
A: Common tools include tube cutters, deburring tools, bending tools, flaring tools, and compatible tube expanders.
A: They support accurate pipe preparation and properly formed connections, reducing the risk of installation defects.
A: Check tube dimensions, connection types, tool durability, supported sizes, and manufacturer specifications.
A: Inspect tools regularly, replace worn parts, store equipment properly, and train technicians in correct operation.
