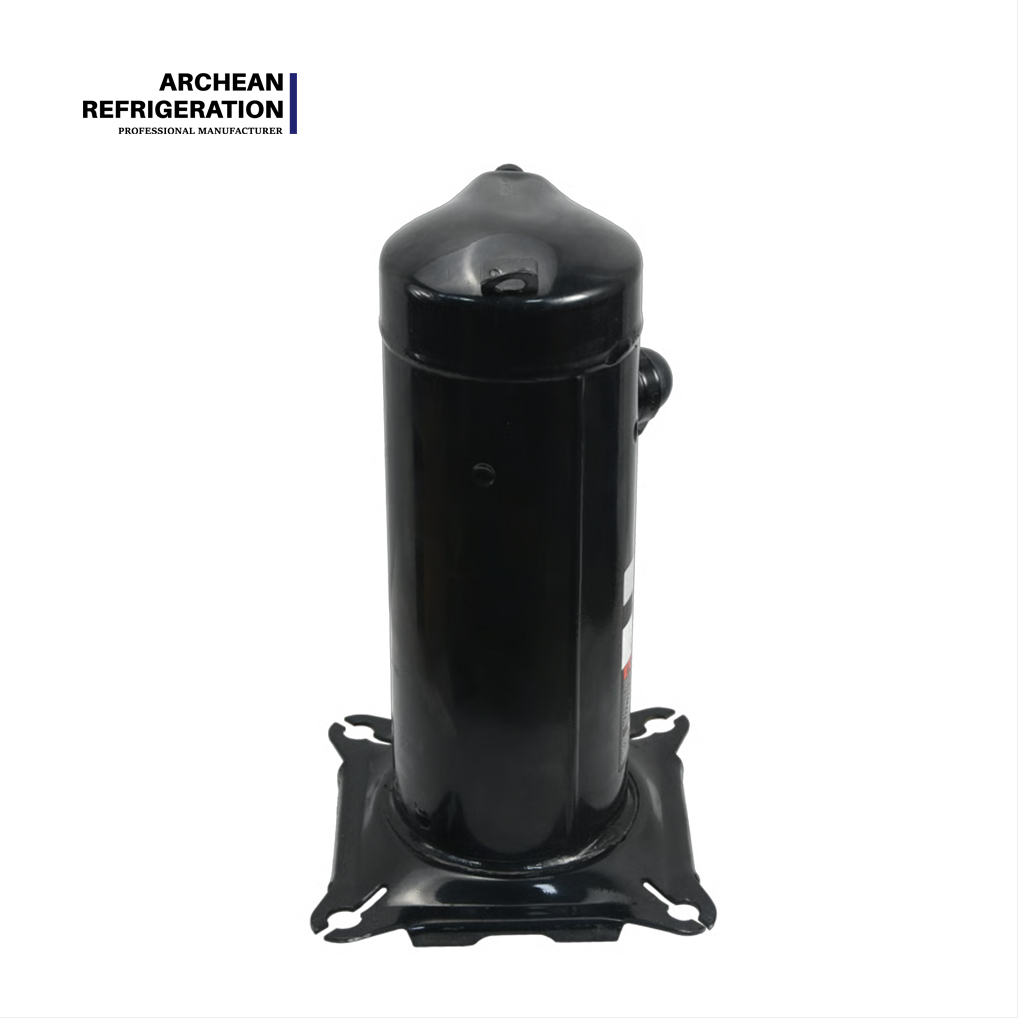

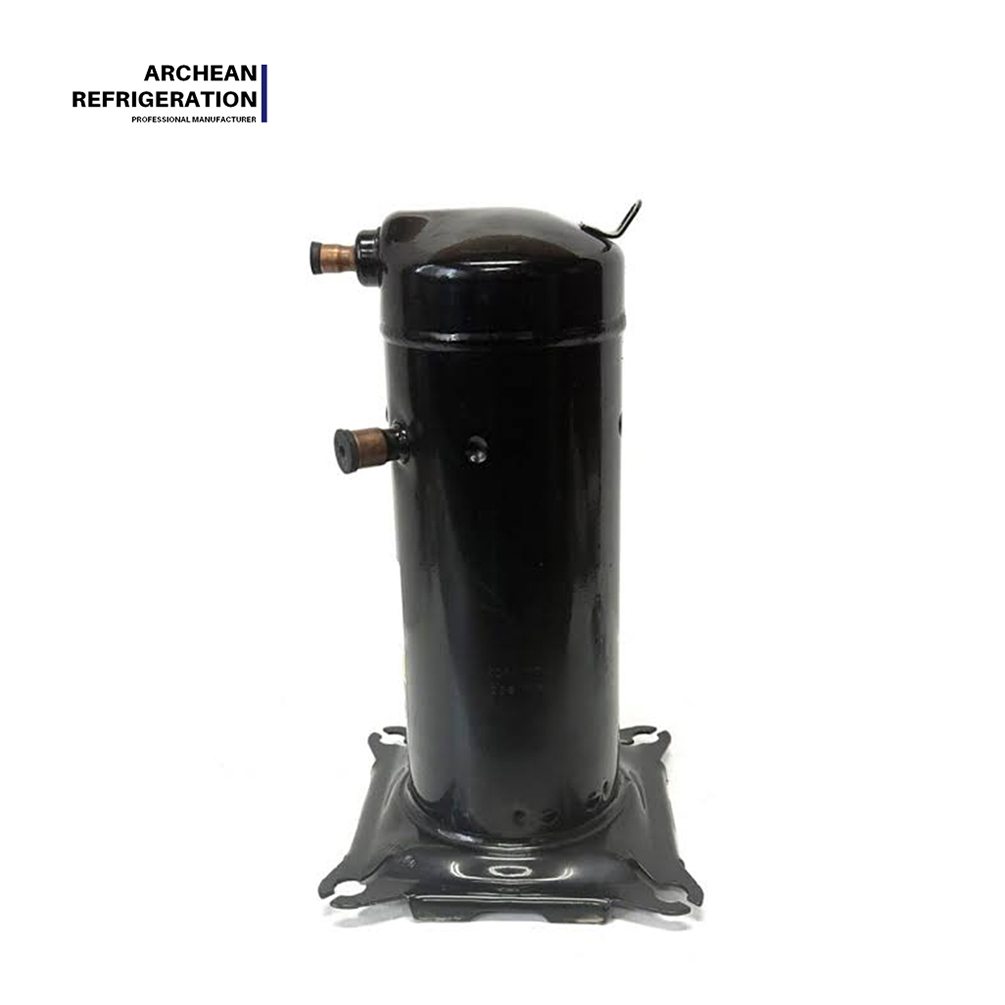

Copeland ZP20K5E ZP21K5E ZP24K5E ZP25K5E ZP28K5E R410a AC Compressor ZP for Air Conditioning Application Refrigeration & Heat Exchange Parts

Copeland ZP20K5E ZP21K5E ZP24K5E ZP25K5E ZP28K5E R410a AC Compressor ZP for Air Conditioning Application Refrigeration & Heat Exchange Parts

Name: Copeland ZP20K5E ZP21K5E ZP24K5E ZP25K5E ZP28K5E R410a AC Compressor ZP for Air Conditioning Application Refrigeration & Heat Exchange Parts
Brand: COPELAND
Rating: 5.0 (93 reviews)

Copeland's ZP Series small-capacity scroll compressors are engineered for 1.9–4.5 HP applications with R410A refrigerant. Featuring a lightweight build, high EER, and low noise operation, they are the perfect solution for residential central A/C, small commercial splits, rooftop units, and unitary systems.

Model:
ZP20K5E ZP21K5E ZP24K5E ZP25K5E ZP28K5E ZP29K5E ZP31K5E ZP34K5E ZP36K5E ZP38K5E ZP39K5E ZP42K5E ZP44K5E ZP49K5E ZP51K5E ZP54K5E
Brand:
COPELAND

Availability:

Quantity:



Inquire Add to Basket

Product Description

I. Positioning

The Small-Capacity Group is Copeland's ZP series product line of compact scroll compressors designed for 1.9–4.5 HP applications, covering 16 capacity grades from ZP20K5E to ZP54K5E. This group adopts R410A environmentally friendly refrigerant, featuring lightweight design, high energy efficiency ratio, and low noise as its core characteristics. It is widely used in residential central air conditioning, small commercial split systems, rooftop units, and unitary systems.

Feature Dimension	Description
Power Range	1.9 HP – 4.5 HP
Refrigerant	R410A
Power Supply	Single-phase 220-240V or 3-Phase 380-420V/50Hz
Application Condition	A/C condition (AHRI 7.2/54.4℃)
Core Positioning	Compact lightweight, preferred choice for residential & small commercial A/C

II. Full Series Parameter Comparison Table

Note: 50Hz operating condition, R410A refrigerant.

No.	Model	Nominal HP	Cooling Capacity (W)	Input Power (W)	Current (A)	COP	EER	Displacement (cc/Rev.)	Oil Charge (L)	Net Weight (kg)	Noise (dBA)
1	ZP20K5E	1.9	5,860	—	—	—	9.8	—	—	—	—
2	ZP21K5E	2.0	6,150	—	—	—	—	—	—	—	—
3	ZP24K5E	2.0	7,000	—	—	—	—	—	—	—	—
4	ZP25K5E	2.1	7,300	—	—	—	—	—	—	—	—
5	ZP28K5E	2.4	8,200	—	—	—	—	—	—	—	—
6	ZP29K5E	2.5	8,400	—	—	—	—	—	—	—	—
7	ZP31K5E	2.6	8,900	—	—	—	—	—	—	—	—
8	ZP34K5E	2.8	8,200	2,830	5.2	2.90	9.9	32.8	1.24	28.9	68.0
9	ZP36K5E	3.0	8,600	2,940	5.5	2.93	10.0	34.4	1.24	29.2	68.0
10	ZP38K5E	3.2	9,100	—	—	—	—	—	—	—	—
11	ZP39K5E	3.3	9,400	—	—	—	—	—	—	—	—
12	ZP42K5E	3.5	10,050	—	—	—	—	—	—	—	—
13	ZP44K5E	3.7	10,700	—	—	—	—	—	—	—	—

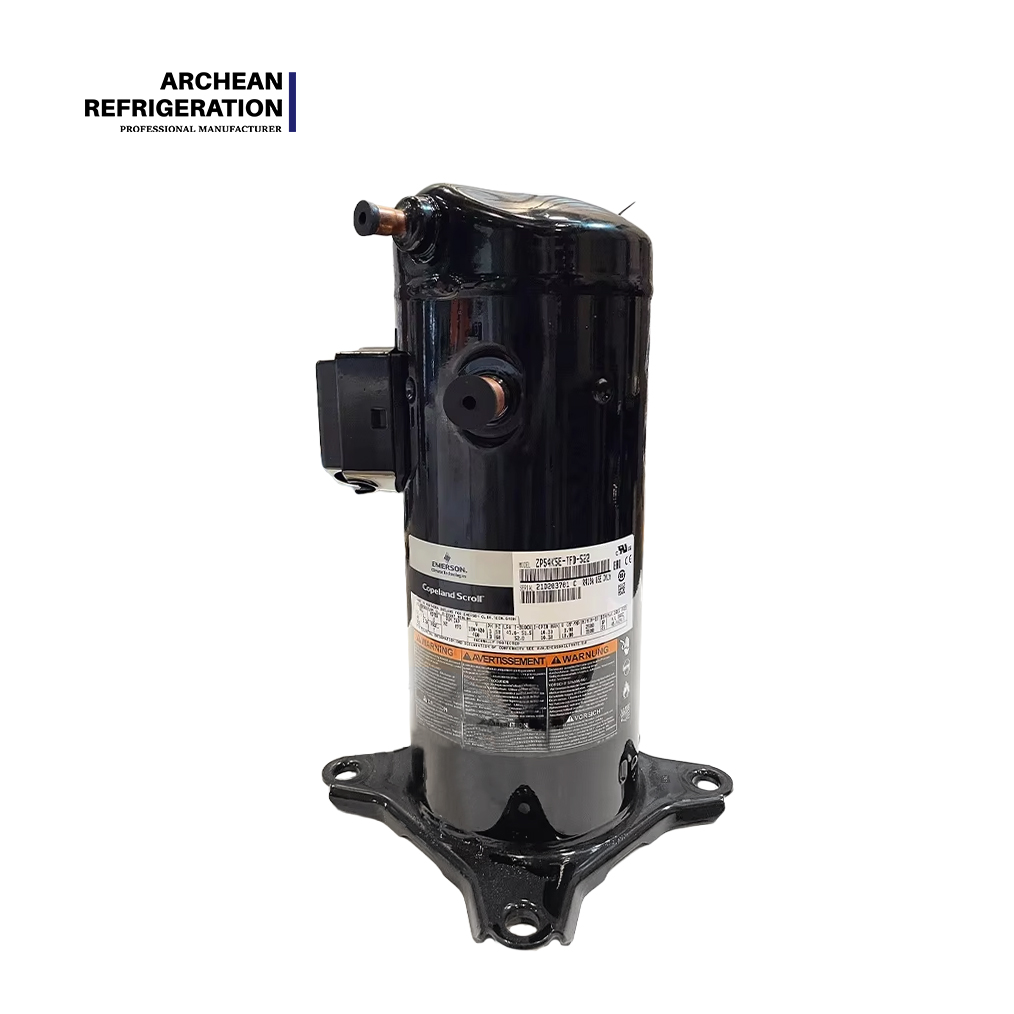

14	ZP49K5E	4.1	11,950	—	—	—	—	—	—	—	—
15	ZP51K5E	4.3	15,300	—	—	—	10.8	—	—	—	—

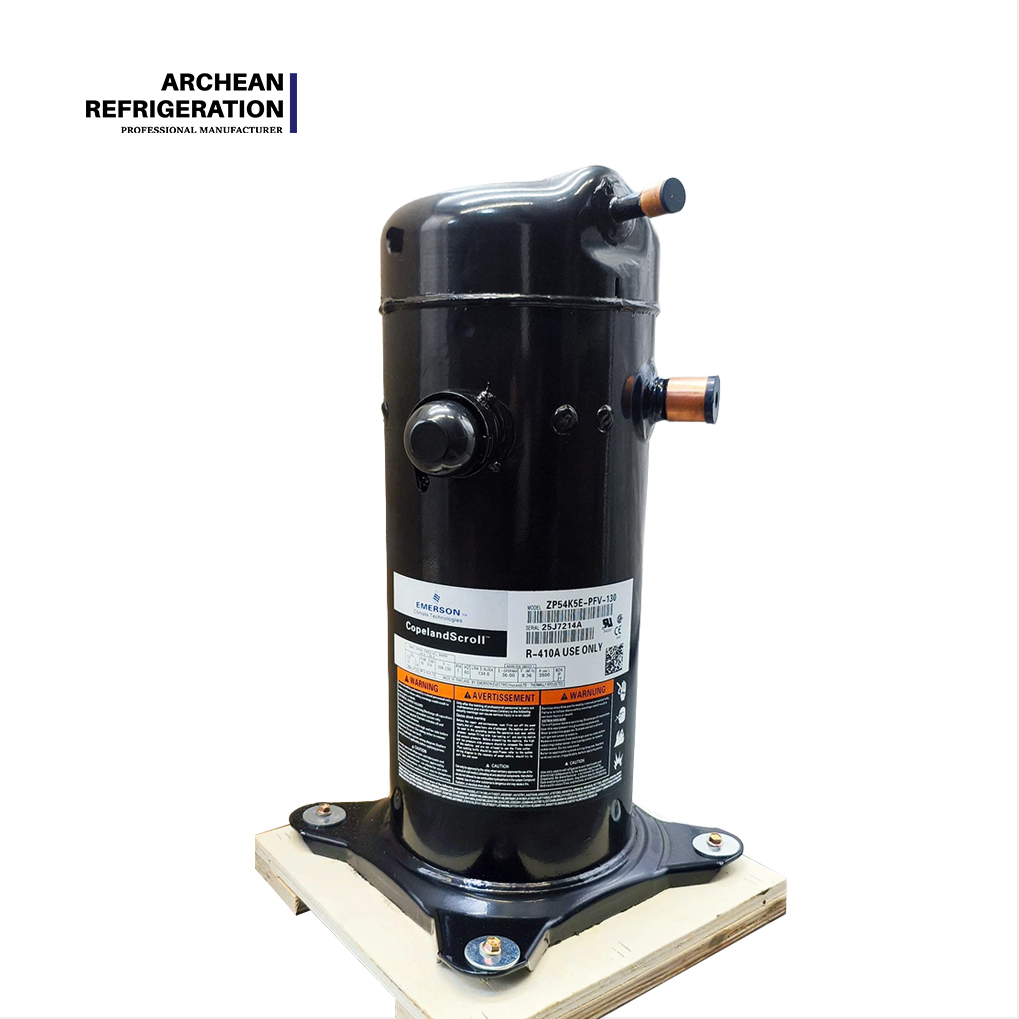

16	ZP54K5E	4.5	13,200	—	—	—	—	—	—	—	—

Name1

Name2

Name3

III. Detailed Explanation

Feature – Technical Characteristics

The Small-Capacity Group adopts Copeland's axial and radial compliant scroll technology, allowing the scrolls to separate slightly during operation, enabling liquid refrigerant and impurities to pass through without damaging the compressor.
The entire series uses R410A environmentally friendly refrigerant with zero ODP (Ozone Depletion Potential).
ZP34K5E and ZP36K5E are equipped with built-in motor protectors to ensure motor safety under abnormal operating conditions.

Advantage – Technical Advantages

This group's core advantage is its compact lightweight design. ZP34K5E has a net weight of only 28.9 kg and ZP36K5E 29.2 kg, achieving over 50% weight reduction compared to semi-hermetic compressors of the same cooling capacity.
COP reaches 2.90–2.93, EER reaches 9.9–10.0 Btu/Wh, and energy efficiency outperforms traditional reciprocating compressors.
Noise level is controlled at 68 dBA, suitable for residential and light commercial scenarios with strict acoustic requirements.

Benefit – User Benefits

For applications such as residential central air conditioning, small commercial split systems, and rooftop units, this group reduces equipment integration and on-site installation difficulty with its lightweight design and flexible power compatibility.
For equipment manufacturers, the 16 capacity grades from ZP20K5E to ZP54K5E provide precise cooling capacity matching, avoiding selection waste from over-sizing.
For end-users, the high energy efficiency ratio of R410A systems significantly reduces annual operating electricity costs.

IV. Application Quick Selection Guide

Application Scenario	Recommended Model	HP	Key Advantage
Residential central A/C (small units)	ZP20K5E – ZP25K5E	1.9–2.1	Compact lightweight, low noise
Residential central A/C (medium/large units)	ZP28K5E – ZP36K5E	2.4–3.0	EER 10.0, high energy efficiency
Small commercial split systems	ZP38K5E – ZP44K5E	3.2–3.7	COP 2.90+, economical operation
Rooftop units / Unitary systems	ZP49K5E – ZP54K5E	4.1–4.5	Large cooling capacity, ideal for commercial use
