Complete Guide To Refrigeration Compressors: Types, Market Trends & Selection Tips？

Introduction: Why the Compressor Matters

Think of the compressor as the heartbeat of any refrigeration system. Without it, refrigerant wouldn't circulate, no heat would be transferred, and your cold chain would come to a complete halt. Whether you are building a commercial cold storage facility, equipping a supermarket with display cases, or scaling up an industrial freezing operation, the compressor you choose determines your energy bills, system reliability, and compliance with tightening environmental regulations.

-

How a Refrigeration Compressor Works

A refrigeration compressor is a driven fluid machine that elevates low-pressure refrigerant gas to high pressure. It draws in low-temperature, low-pressure refrigerant vapor from the suction pipe, compresses it through motor-driven pistons or rotors, and discharges high-temperature, high-pressure gas to power the vapor compression cycle: compression → condensation (heat release) → expansion → evaporation (heat absorption).

In simple terms, the compressor does three things: it circulates refrigerant through the system, it raises the refrigerant's pressure and temperature, and it enables the refrigerant to release heat in the condenser before cooling down again in the evaporator.

The Five Main Types of Refrigeration Compressors

Selecting the right compressor begins with understanding the five major types available on the market today: reciprocating (piston), scroll, rotary, screw, and centrifugal. Each has distinct working principles, efficiency characteristics, and application sweet spots.

1. Reciprocating (Piston) Compressors

Reciprocating compressors use a piston-and-cylinder arrangement driven by a crankshaft. As the piston moves down, it draws refrigerant into the cylinder; on the upward stroke, it compresses the gas and pushes it into the discharge line.

Best applications: Cold storage facilities, freezer warehouses, and commercial refrigeration systems. Semi-hermetic reciprocating compressors are particularly common in the cold storage and frozen food sectors, with power ratings typically ranging from 60–600 kW and cylinder counts from 2 to 12. These compressors handle both medium and low temperatures effectively and can accommodate a wide range of refrigerants.

Key advantages: Wide pressure range capability (up to 320 MPa in industrial applications), broad adaptability to different gases, mature technology with extensive field experience, and relatively low material costs.

Limitations: Higher vibration levels, more moving parts requiring maintenance, discontinuous gas flow with pulsation, and larger physical footprint compared to newer technologies. For end-users prioritizing reliability and serviceability in moderate-scale applications, however, reciprocating units remain a very strong choice.

https://www.archeanhvacr.com/DANFOSS-COMPRESSOR-pl42917107.html

2. Scroll Compressors

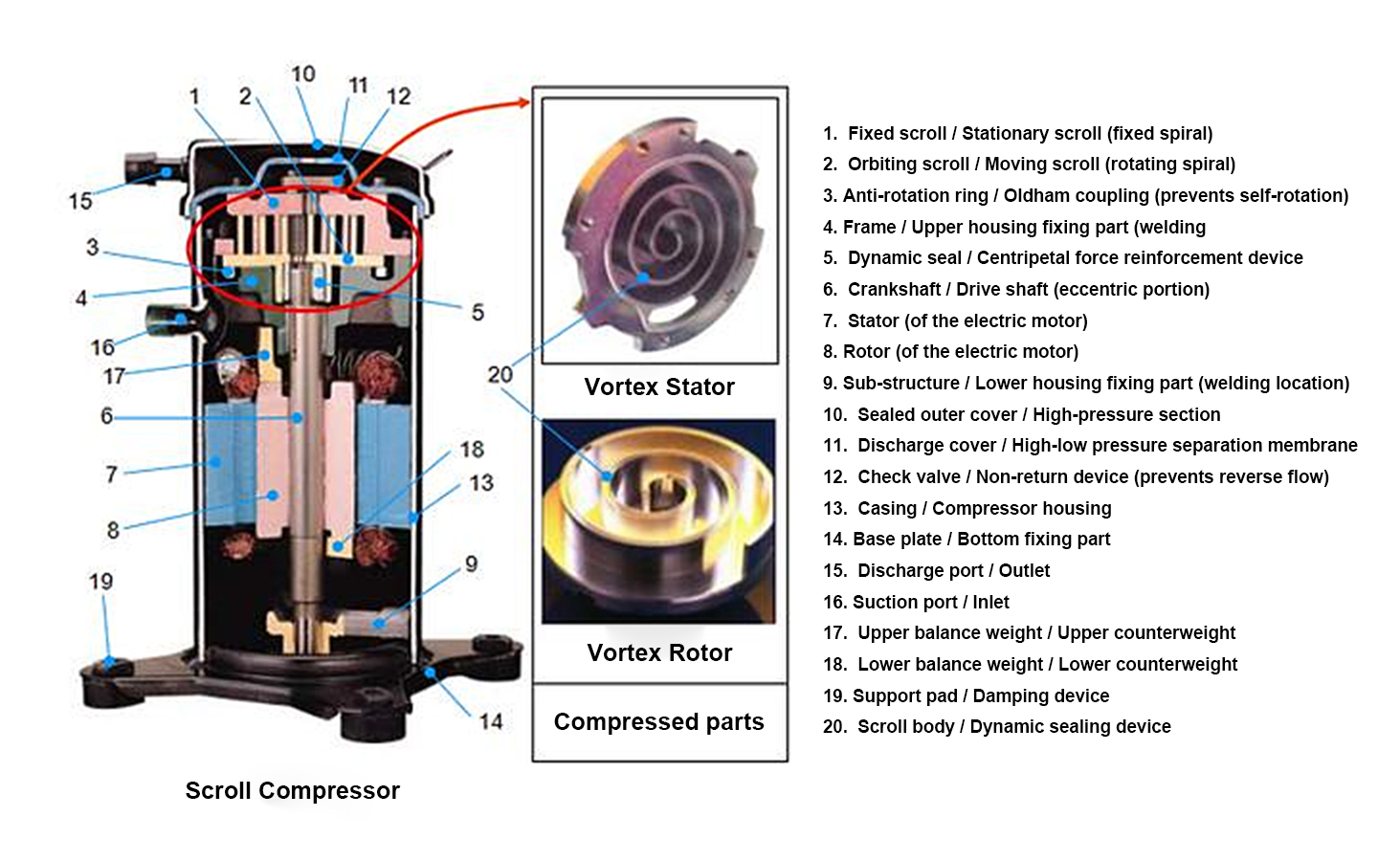

Scroll compressors operate using two interleaving spiral-shaped scrolls. One scroll remains stationary while the other orbits around it, progressively trapping and compressing refrigerant pockets toward the center discharge port.

Best applications: Commercial refrigeration (supermarket display cases, beverage coolers), light commercial freezers, and medium-sized cold storage (50–200 m³). Scroll compressors have become the go-to choice for mid-range applications where efficiency and quiet operation are paramount. For instance, Copeland's ZB series scroll compressors are widely used for medium-temperature applications from 0°C to -15°C, achieving coefficient of performance (COP) ratings above 3.0.

Key advantages: Outstanding reliability with fewer moving parts, very low noise and vibration levels, high volumetric efficiency, and compact design.

Limitations: Higher initial cost than reciprocating units (though often offset by energy savings), limited to moderate capacities, and not well-suited for heavy-duty continuous operation in large industrial settings.

https://www.archeanhvacr.com/COPELAND-COMPRESSOR-pl44917107.html

3. Rotary Compressors

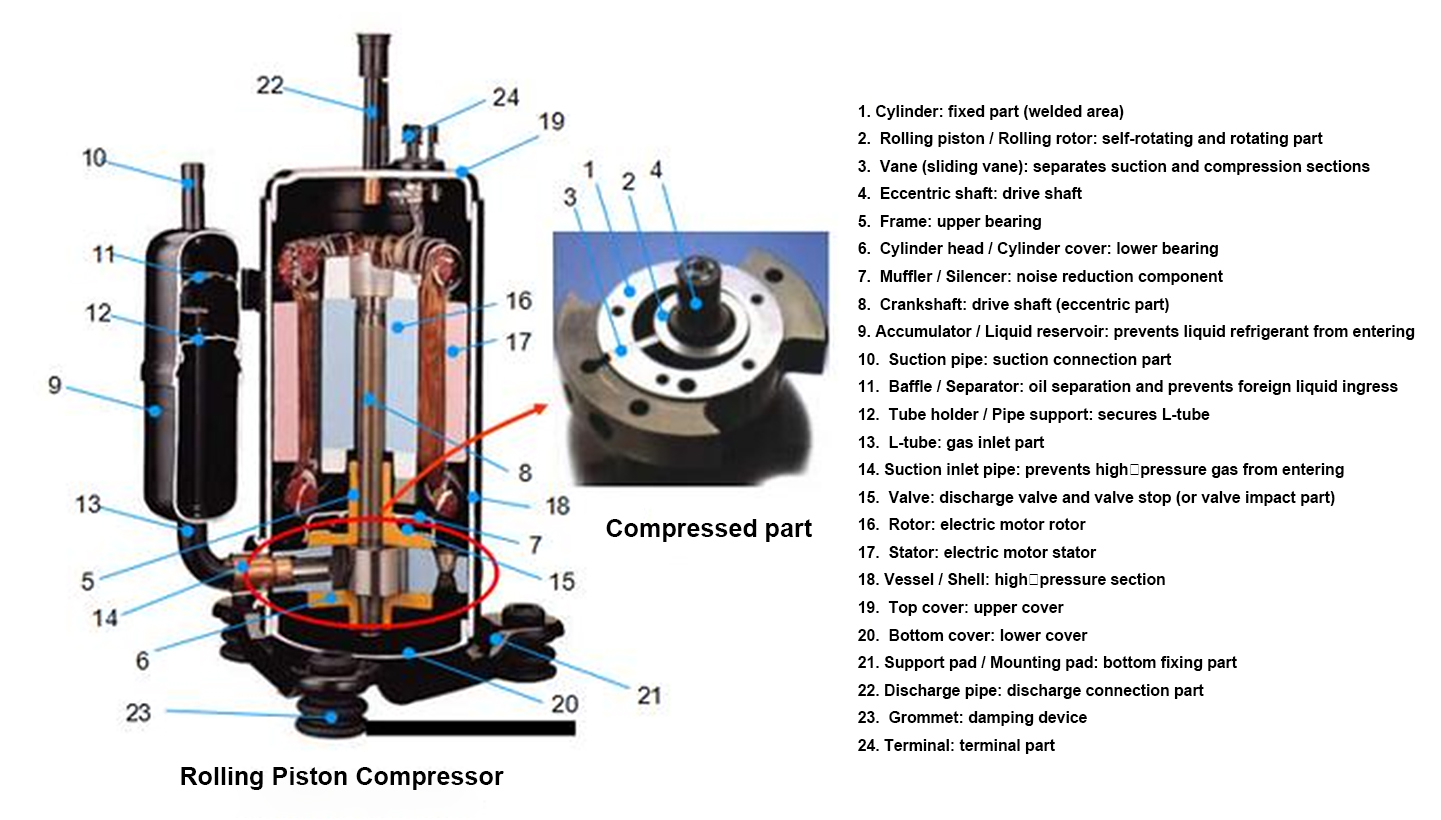

Rotary compressors (also known as rolling piston compressors) use a rotating eccentric roller inside a cylinder to compress refrigerant, typically in a fully sealed (hermetic) housing.

Best applications:Small refrigeration systems where size and quiet operation matter most. These include household refrigerators, small commercial coolers, and portable AC units, with cooling capacities typically in the 3 kW to 15 kW range.

Key advantages:Extremely compact, lightweight design; smooth continuous operation; and superior performance at consistent load levels.

Limitations:Energy efficiency can drop significantly under fluctuating demand conditions; design is generally optimized for steady-state operation rather than variable loads.

https://www.archeanhvacr.com/GMCC-COMPRESSOR-pl49079107.html

Comparison at a Glance

Compressor Type	Capacity Range	Best For	Noise Level	Maintenance
Reciprocating	Small to medium	Cold storage, freezers	Higher	Moderate
Scroll	Small to medium	Supermarkets, commercial	Low	Low
Rotary	Small	Domestic, light commercial	Very low	Low
Screw	Medium to large	Industrial plants, large cold storage	Low to moderate	Moderate
Centrifugal	Very large	Mega-scale cooling systems	Low	Low

Energy Efficiency: The COP Factor

When evaluating compressors, probably the single most important metric to understand is COP—Coefficient of Performance. COP measures how much cooling output you get per unit of electrical energy input. A higher COP means lower operating costs and a greener footprint.

Industry benchmarks suggest aiming for COP values above 3.0 as a minimum standard. For example, one leading semi-hermetic screw compressor achieves a COP of up to 3.5. Scroll compressors for medium-temperature applications routinely achieve COP ratings of 3.0 or higher. For water-cooled screw compressors, COP can reach 4.1–4.6, with centrifugal units achieving even higher ratings.

But here is a critical nuance that many buyers overlook: a compressor's **part-load efficiency** often matters more than its full-load COP. Many refrigeration systems operate for extended periods at partial load (nighttime operation, off-peak hours), and choosing a compressor with good part-load performance can yield far greater overall energy savings than focusing solely on the peak COP number.

A Practical Buyer's Checklist

When sourcing refrigeration compressors for your business, here are the key questions to ask:

1. What temperature range do you need? Different compressors are optimized for different evaporation temperatures. For 0°C to -15°C (medium temperature), scroll or reciprocating compressors work well. For -20°C to -40°C (low temperature), you need specialized low-temperature models.

2. What is your required cooling capacity? Calculate your load accurately. Over-specifying wastes capital; under-specifying leads to inadequate performance.

3. What are your local energy costs?  A more efficient compressor with higher COP costs more upfront but often pays for itself within 2–3 years through electricity savings.

4. What refrigerants are legal and available in your country? Check local regulations. Do not invest in equipment using phased-out refrigerants unless you have a clear retrofit path.

5. Is there qualified local service support? Compressors require maintenance. Ensure service and spare parts are available in your region.

6. Does the compressor offer variable-speed (inverter) operation? If your load varies significantly, inverter technology will pay for itself quickly.

Partnering with a knowledgeable supplier ensures you get not just a compressor, but the right compressor for your specific application—one that delivers reliability, efficiency, and compliance for years to come.

Conclusion

The refrigeration compressor you choose is a long-term investment that affects your operational costs, environmental compliance, and overall business efficiency.

Need guidance on selecting the perfect refrigeration compressor for your project? Contact our team of refrigeration experts for personalized consultation and competitive quotes.https://www.archeanhvacr.com/
